Parker F11 series - Barrel Retaining Ring

Bulletin MSG30-5511-M1/UK
18
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Series F11

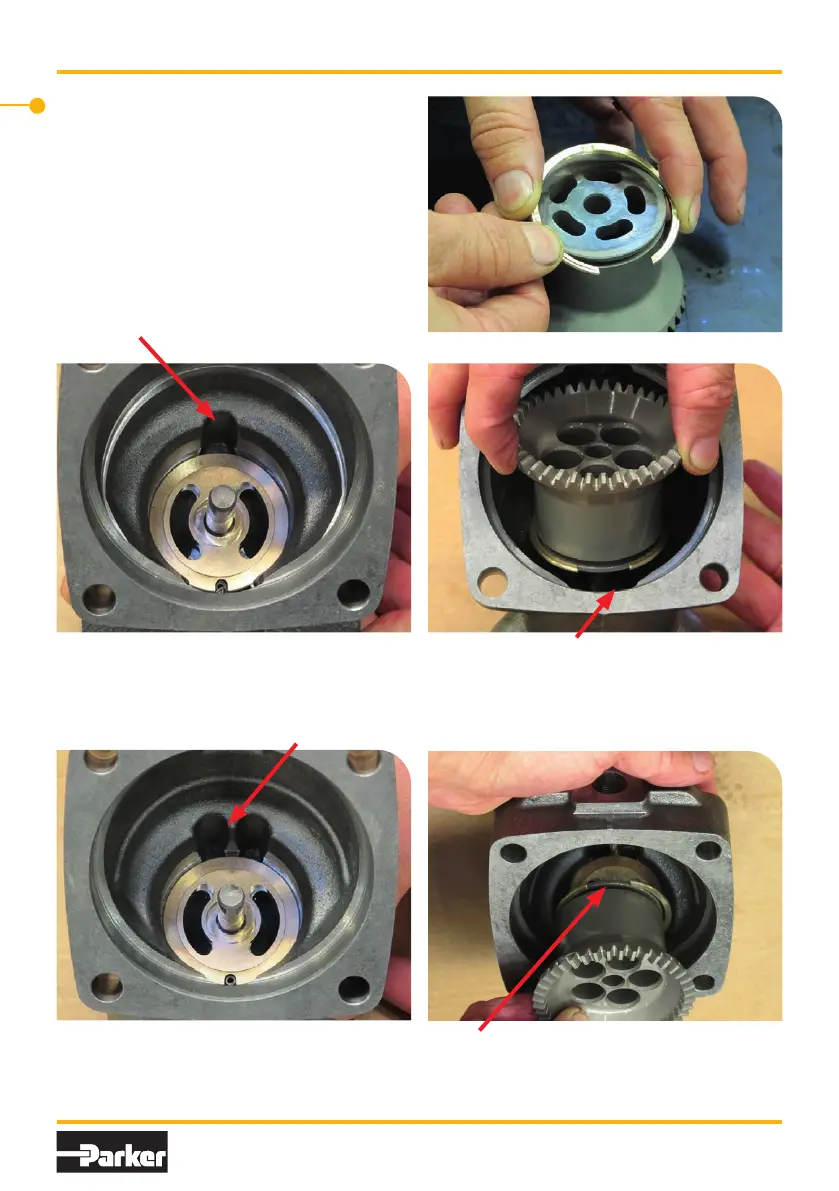

Barrel retaining ring
2. When the barrel housing have one
groove assemble the cylinder barrel as
shown in picture 3.
Opening barrel retaining ring
3. Assemble the cylinder barrel as shown
in picture.
4. When the barrel housing have two
grooves assemble the cylinder barrel
as shown in picture 5.
Opening barrel retaining ring
5. Assemble the cylinder barrel as shown
in picture.
Assembling
1. Assemble the barrel retaining ring.
Note, grooves upwards as on picture.
One groove
Two grooves
