17
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Series F11
Bulletin MSG30-5511-M1/UK

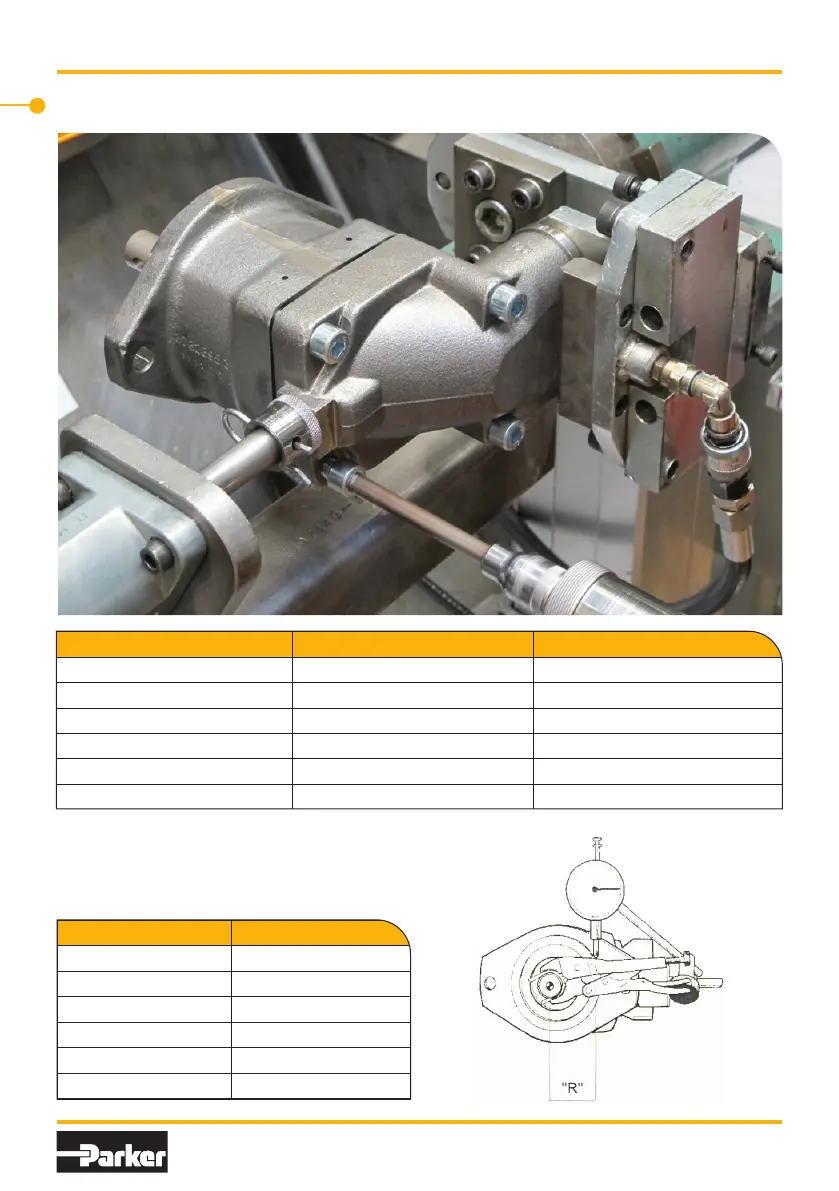

Torque
Assembling
Bulletin MSG30-5511-M1/UK
Series F11
17
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Torque
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
Size Torque (Nm) Torque (lbf·ft)
F11-5 24±4 18±3
F11-6 48±8 35±6
F11-10 48±8 35±6
F11-12 48±8 35±6
F11-14 48±8 35±6
F11-19 48±8 35±6
Gear Backlash
0.10-0.25mm
Framesize "R"mm
F11-5 25.0
F11-6 31.3
F11-10 31.3
F11-12 31.3
F11-14 31.3
F11-19 37.5
Size Torque (Nm) Torque (lb*ft)
F11-5 24±4 18±3
F11-6 48±8 35±6
F11-10 48±8 35±6
F11-12 48±8 35±6
F11-14 48±8 35±6
F11-19 48±8 35±6
Size ”R” mm
F11-5 25.0
F11-6 31.3
F11-10 31.3
F11-12 31.3
F11-14 31.3
F11-19 37.5
17
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Torque
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
Size Torque (Nm) Torque (lbf·ft)
F11-5 24±4 18±3
F11-6 48±8 35±6
F11-10 48±8 35±6
F11-12 48±8 35±6
F11-14 48±8 35±6
F11-19 48±8 35±6
Gear Backlash
0.10-0.25mm
Framesize "R"mm
F11-5 25.0
F11-6 31.3
F11-10 31.3
F11-12 31.3
F11-14 31.3
F11-19 37.5
Gear Backlash
0.10 - 0.25 mm
