Parker F11 series - Test Procedur

21
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Series F11
Bulletin MSG30-5511-M1/UK
Test Procedure

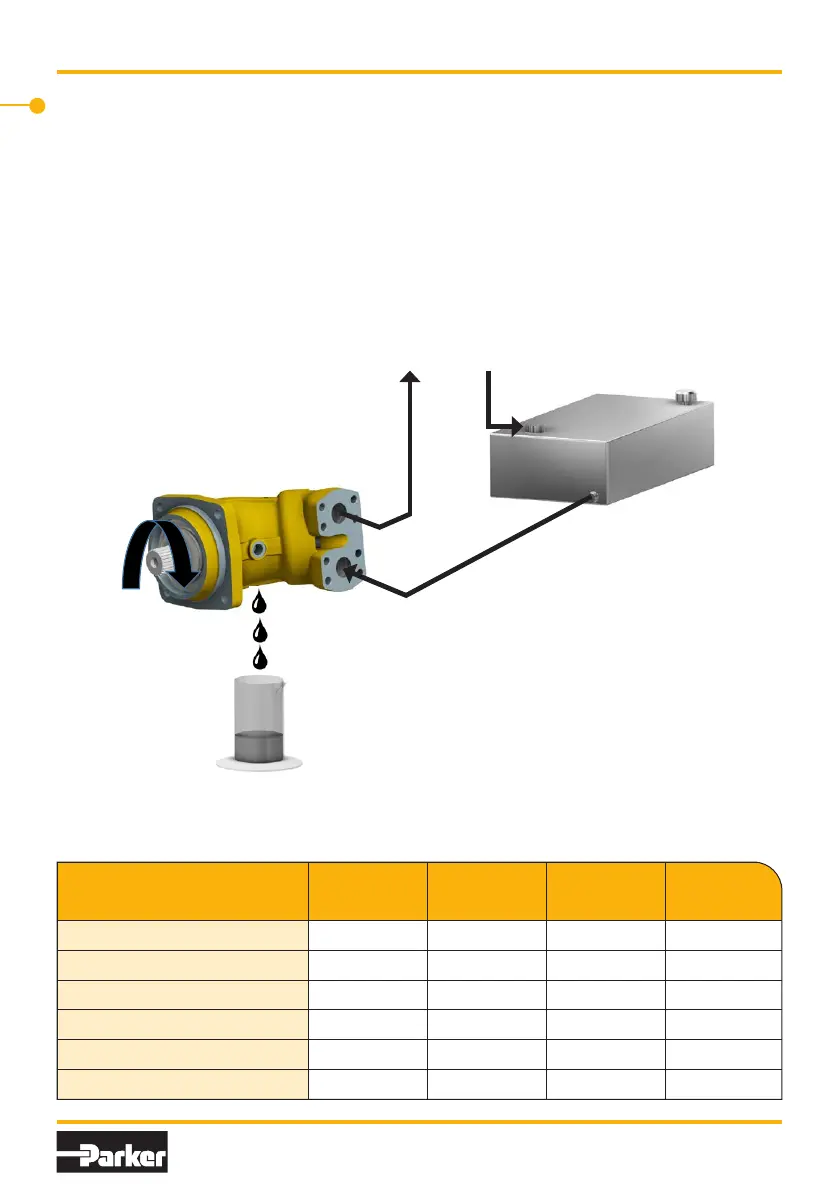

The general condition of the unit can be
established by checking the drain flow.
Remove the drain line and keep the
drain port above a suitable container.
Run the unit at 1000 rpm and pressu-
rise the system to 200 bar (3000 psi)
Measure the drain flow for one minu-
te; if it exceeds the maximum figures
shown below, the unit is worn or dama-
ged internally and should be replaced
or repaired. Also, check for leakage at
the shaft seal and between the bearing
and barrel housings.
Test Procedure
17
Parker Hannin
PumpandMotorDivision
Trollhättan,Sweden
ServiceManual
Series F12
MSG30-5520-M1/UK
Thegeneralconditionoftheunitcanbeestablishedbycheckingthedrainow.Removethe
drainlineandkeepthedrainportaboveasuitablecontainer.Runtheunitat500rpmand
pressurisethesystemto200bar(3000psi)
Measurethedrainowforoneminute;ifitexceedsthemaximumguresshownbelow,theunit
iswornordamagedinternallyandshouldbereplacedorrepaired.Also,checkforleakageat
theshaftsealandbetweenthebearingandbarrelhousings.
Series Normal
(gpm,US)
Normal
(l/min)
Max
(gpm,US)
Max
(l/min)
F12-152 0.4 1.5 0.99 3.7
F12-162 0.43 1.6 1.08 4.1
F12-182 0.47 1.8 1.19 4.5
Test Procedure
Series Normal
(gpm, US)
Normal
(l/min)
Max
(gpm, US)
Max
(l/min)
F11-5 0.08 0.3 0.12 0.4
F11- 6 0.08 0.3 0.13 0.5
F11-10 0.13 0.5 0.21 0.8
F11-12 0.17 0.6 0.26 1.0
F11-14 0.15 0.6 0.26 1.0
F11-19 0.20 0.8 0.35 1.3
