OEM750 • ➂ Tuning & Specifications
55
Encoder Specifications
ENCODER DIMENSIONS
18.0 (457)
Mininimum
0.72 (18.3)
maximum
0.79
0.71
(20.1)
(18.0)
HJ Encoder (OEM-E57) EC Encoder (OEM-E83)
Dimensions in
inches (millimeters)
3.57
2.50
(63.5)
1.63
(41.4)
(90.68)

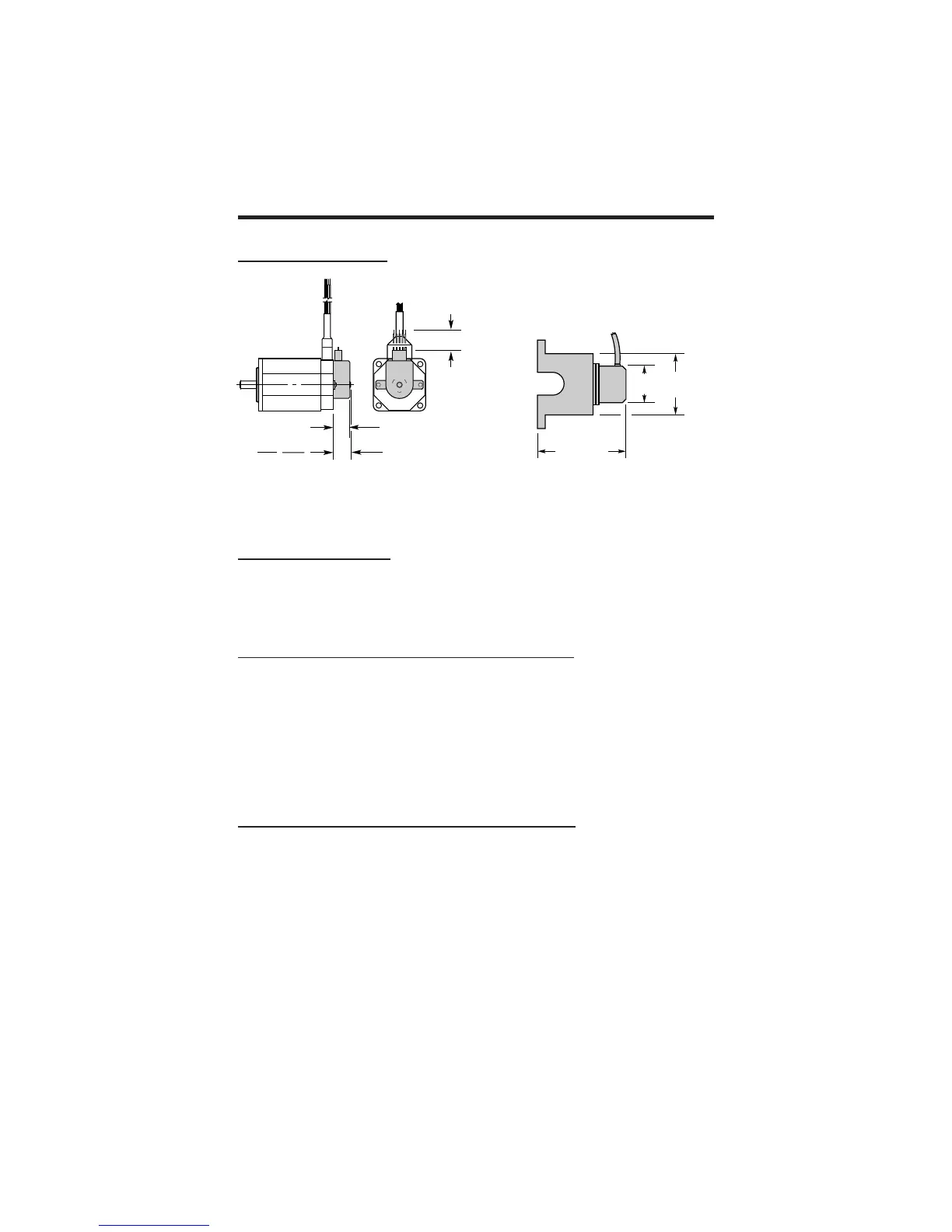

Dimensions – HJ (OEM-E57) and EC (OEM-E83) Encoders
ENCODER RESOLUTION
Model Lines
HJ (OEM-E57) 512 Lines
EC (OEM-E83) 1000 Lines
ENCODER WIRES—COLOR CODE—HJ (OEM-E57)
OEM750X D-Connector
Function Wire Color PIN Number
Channel A White 17
Channel B Brown 18
Channel Z Blue 19
+5 volts Red
Ground Black 7
ENCODER WIRES—COLOR CODE—EC (OEM-E83)
OEM750X D-Connector
Function Wire Color PIN Number
Channel A+ Brown 17
Channel A– Brown/White Do not connect
Channel B+ Green 18
Channel B– Green/White Do not connect
Channel Z+ Orange 19
Channel Z– Orange/White Do not connect
+5 volts Red
Ground Black 7
Shield Do not connect
