Parker P1D Series Operating Information

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
B76
Catalog PDN1000-3US
Parker Pneumatic
B
Tie Rod Cylinders Actuator Products
3MA
Series
4MA/4ML
Series
3MAJ/4MAJ
Series
4MNR
Series
P1D
Series
According to ISO MP2, VDMA 24 562, AFNOR
Bore
size
mm
C
mm
E
mm
UB
h14
mm
CB
H14
mm
FL
±0.2
mm
L
mm
I2
mm
CD
H9
mm
MR
mm
XD
mm
Weight
kg Part number
32 53 45 45 26 22 13 5.5 10 10 142 0.08 P1C-4KMT
40 60 52 52 28 25 16 5.5 12 12 160 0.11 P1C-4LMT
50 68 65 60 32 27 16 6.5 12 12 170 0.14 P1C-4MMT
63 78 75 70 40 32 21 6.5 16 16 190 0.29 P1C-4NMT
80 98 95 90 50 36 22 10.0 16 16 210 0.36 P1C-4PMT
100 118 115 110 60 41 27 10.0 20 20 230 0.64 P1C-4QMT
125 139 140 130 70 50 30 10.0 25 25 275 1.17 P1C-4RMT
160 178 180 170 90 55 35 10.0 30 25 315 C.F. L075390160
200 178 200 170 90 60 35 14.0 30 25 335 C.F. L075390200
S = Stroke length C.F. = Consult Factory
UB
CB
E
XD+S
CD
MR
I
2
FL
L
C
According to ISO MP4, VDMA 24 562, AFNOR
Bore
size
mm
E
mm
EW
mm
FL
mm
L
±0.2
mm
I2
mm
CD
mm
MR
H9
mm
XD
mm
Weight
kg Part number
32 45 26 22 13 5.5 10 10 142 0.09 P1C-4KME
40 52 28 25 16 5.5 12 12 160 0.13 P1C-4LME
50 65 32 27 16 6.5 12 12 170 0.17 P1C-4MME
63 75 40 32 21 6.5 16 16 190 0.36 P1C-4NME
80 95 50 36 22 10.0 16 16 210 0.46 P1C-4PME
100 115 60 41 27 10.0 20 20 230 0.83 P1C-4QME
125 140 70 50 30 10.0 25 25 275 1.53 P1C-4RME
160 180 90 55 35 10.0 30 25 315 C.F. L075410160
200 220 90 60 35 14.0 30 25 335 C.F. L075410200
S = Stroke length C.F. = Consult Factory
CD
XD+S
L
CD
MR
E
EN
I
2
FL
Intended for exible mounting of cylinder. Clevis bracket
MP2 can be combined with clevis bracket MP4.
Materials:
Clevis bracket: Surface-treated aluminium, black for
32-160mm bores; Cast iron for 200mm bore
Pin: Surface hardened steel
Circlips according to DIN 471: Spring steel
Mounting screws acc. to DIN 912: Zinc-plated steel 8.8
Supplied complete with mounting screws for attachment
to cylinder .
Intended for exible mounting of cylinder. Clevis bracket
MP4 can be combined with clevis bracket MP2.
Materials:
Clevis bracket: Surface-treated aluminium, black for
32-125mm bores; Cast iron for 160-200mm bores
Mounting screws acc. to DIN 912: Zinc-plated steel 8.8
Supplied complete with mounting screws for attachment
to cylinder .

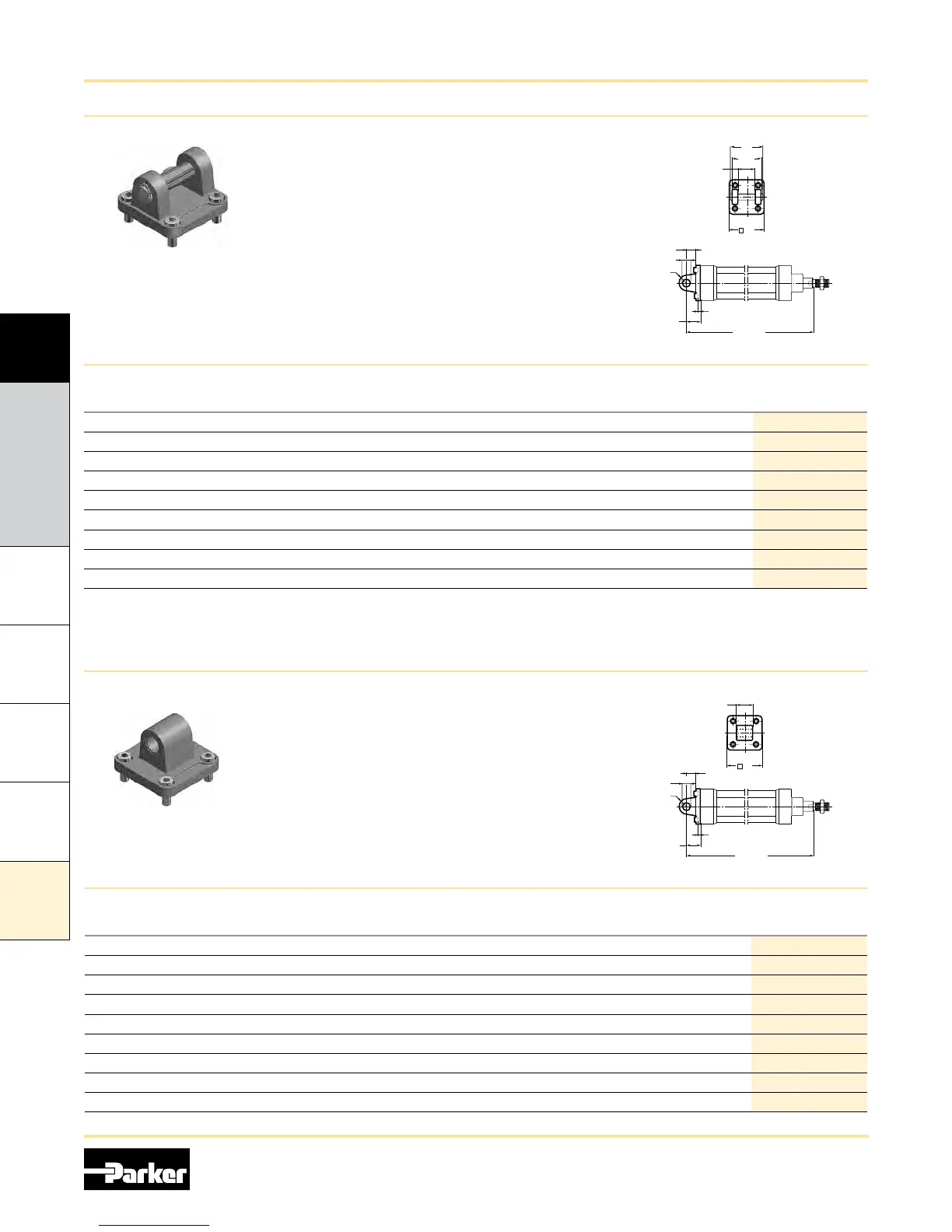

Clevis Bracket – MP2
Clevis Bracket – MP4
Actuator Products – Tie Rod Cylinders
P1D Series
