B70
Catalog PDN1000-3US
Parker Pneumatic
B
Tie Rod Cylinders Actuator Products
3MA
Series
4MA/4ML
Series
3MAJ/4MAJ
Series
4MNR
Series
P1D
Series

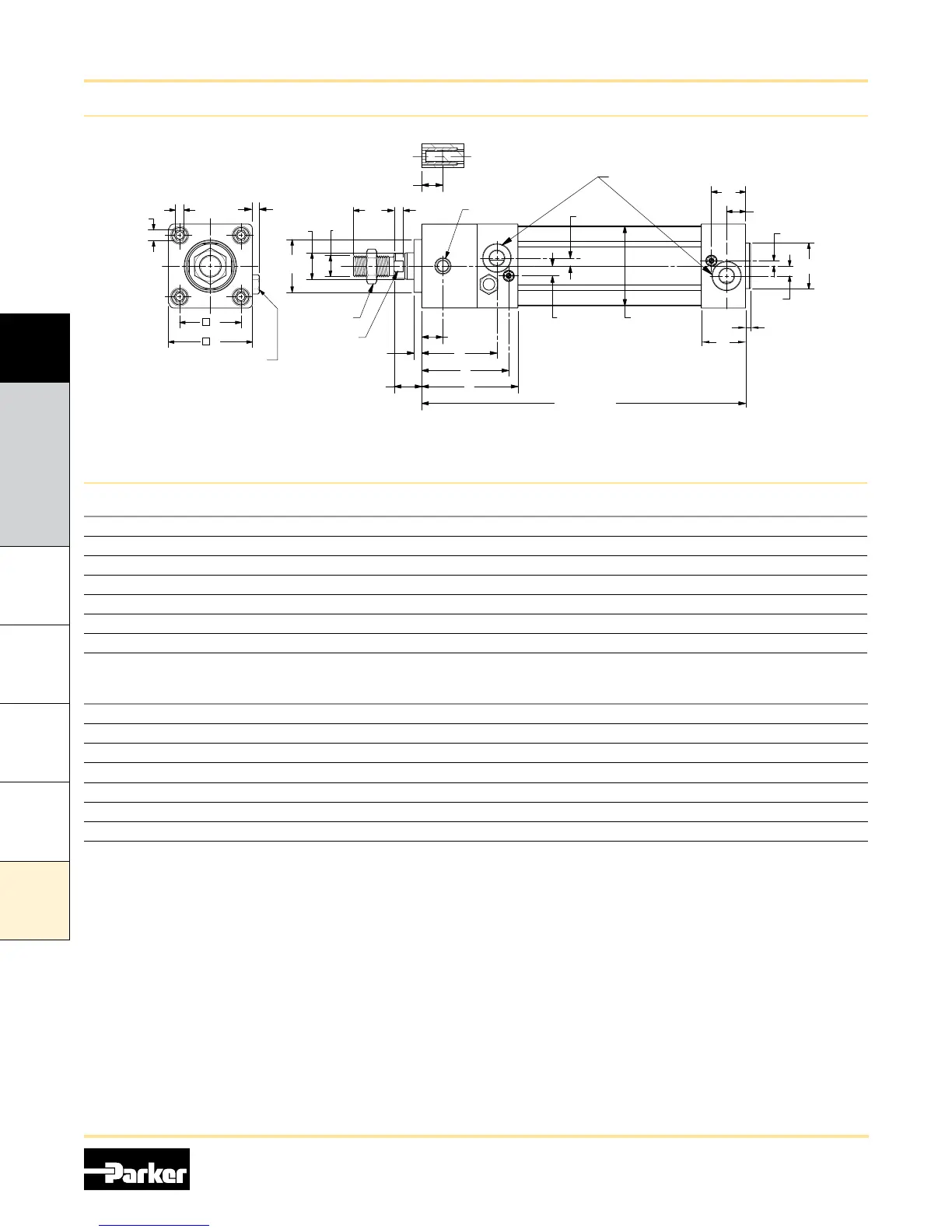

P1D Rod Lock Version (Version R or L)
A
L
P
H
ØD 4
T
S
EE
(M5 Ø32 - Ø40)
G 1/8 Ø50 - Ø125
6
G 1/8
AM
L12
ØB
ØD
KK
DIN 439B
SW
ØBA
PL
PP
BG
SS
TT
VD
WH
VA
G
L8 + Stroke
OA
RT
E
R
Bore
size
A
mm
AM
mm
B
mm
BA
mm
BG
mm
D
mm
D4
mm
E
mm EE *
G
mm
H
mm KK
L
mm
L8
mm
L12
mm
32 16 22 30 30 16 12 45.0 46.5 G1/8 28.5 71.5 M10x1.25 56.0 137 6.0
40 16 24 35 35 16 16 52.0 52.0 G1/4 33.0 77.0 M12x1.25 56.0 149 6.5
50 18 32 40 40 16 20 60.7 63.5 G1/4 33.5 80.5 M16x1.5 62.5 153 6.5
63 26 32 45 45 16 20 71.5 76.0 G3/8 39.5 96.5 M16x1.5 74.5 178 6.5
80 35 40 45 45 17 25 86.7 95.5 G3/8 39.5 110.5 M20x1.5 87.0 199 10.0
100 50 40 55 55 17 25 106.7 114.5 G1/2 44.5 132.5 M20x1.5 106.0 226 10.0
125 60 54 60 60 20 32 134.0 140.0 G1/2 51.0 145.0 M27x2 117.0 254 13.0
Bore
size
OA
mm
P
mm
PL
mm
PP
mm
R
mm
RT
mm
S
mm
SS
mm
SW
mm
T
mm
TT
mm
VA
mm
VD
mm
WH
mm
32 6 64.8 13 21.8 32.5 M6 7 6.5 10 2.5 4.5 3.5 4.5 15
40 6 68.0 14 21.9 38.0 M6 9 8.0 13 2.0 5.5 3.5 4.5 16
50 8 73.5 14 25.9 46.5 M8 8 4.0 17 4.0 7.5 3.5 5.0 17
63 8 89.5 16 27.4 56.5 M8 8 6.5 17 2.0 11.0 3.5 5.0 17
80 6 101.5 16 30.5 72.0 M10 9 0 22 5.0 15.0 3.5 4.0 20
100 6 123.5 18 35.8 89.0 M10 12 0 22 6.0 20.0 3.5 4.0 20
125 8 136.0 23 40.5 110.0 M12 12 0 27 6.0 17.5 5.5 6.0 27
* ISO 1179-1 with ISO 228-1 threads
Actuator Products – Tie Rod Cylinders
P1D Series
