Parker P1D Series Operating Information

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
B71
Catalog PDN1000-3US
Parker Pneumatic
B
Tie Rod Cylinders
Actuator Products
3MA
Series
4MA/4ML
Series
3MAJ/4MAJ
Series
4MNR
Series
P1D
Series
DIN 439B
SW
EE
E2 max.
E
1
AM
ØB
ØD
KK
L
12
ØD7
PP
PL
SS
TT
ØBA
VD
G
WH
L
2
VA
G
L
8 + S
RT
OA
R
E
AM
ØB
ØD
KK
VD
G
WH
L
2
L12
ØD5
ØD6
PP
PL
SS
TT
ØBA
VA
G
L
8 + S
DIN 439B
SW
EE
RT
OA
R
E
Bore
size
D5
mm
D6
mm
D7
mm
E1
mm
E2 max
mm
32 36 5.3 49.6 32 5
40 45 5.3 57.3 36 6
50 55 7.1 69.3 42 6
63 68 7.1 82.3 49 5
80 85 8.9 99.3 57 5
100 105 8.9 117.6 68 6
125 132 10.7 142.8 81 6
Other dimensions, see P1D removable gland version.

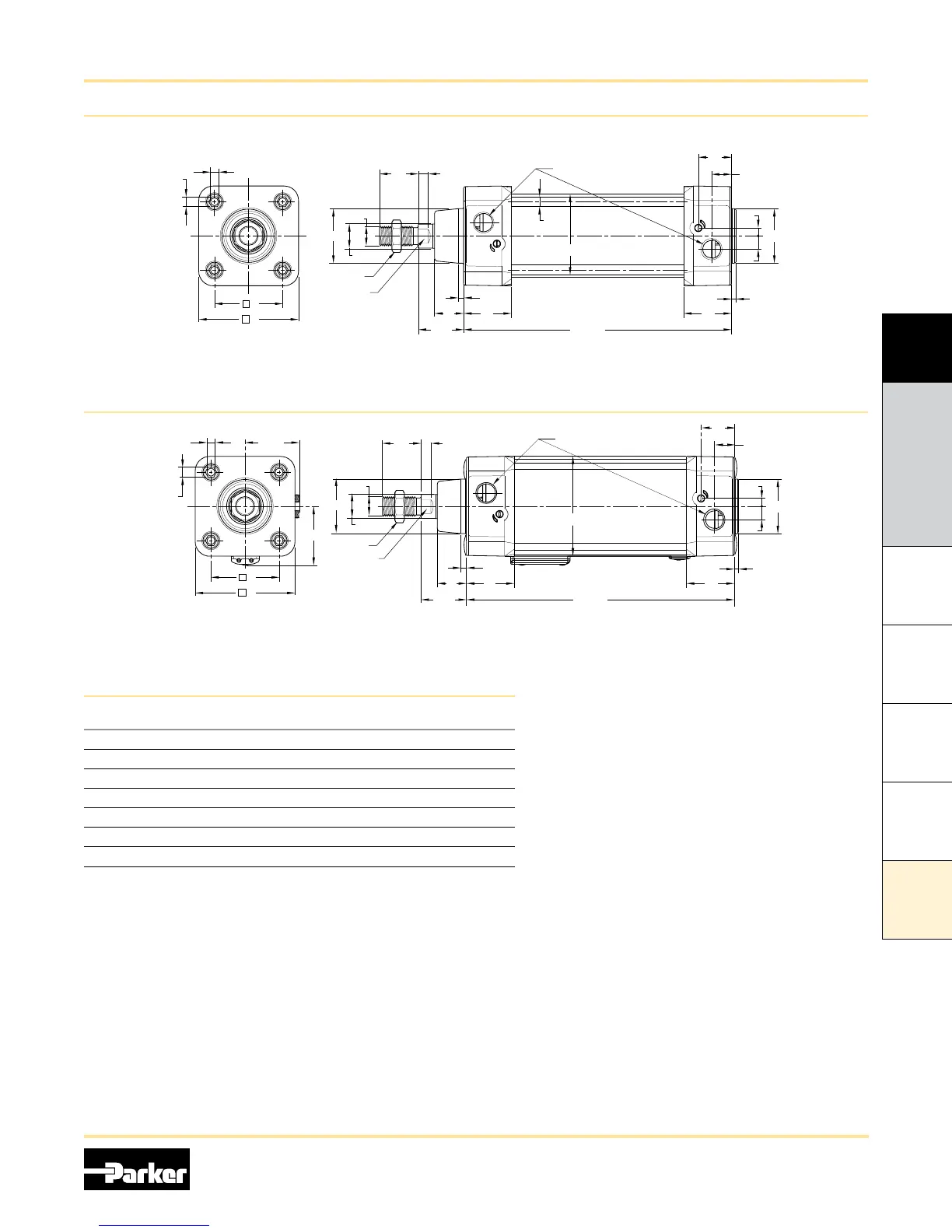

P1D Tie-Rod Version (32-125mm)
P1D Clean Version
Actuator Products – Tie Rod Cylinders
P1D Series

Parker P1D Series Specifications
