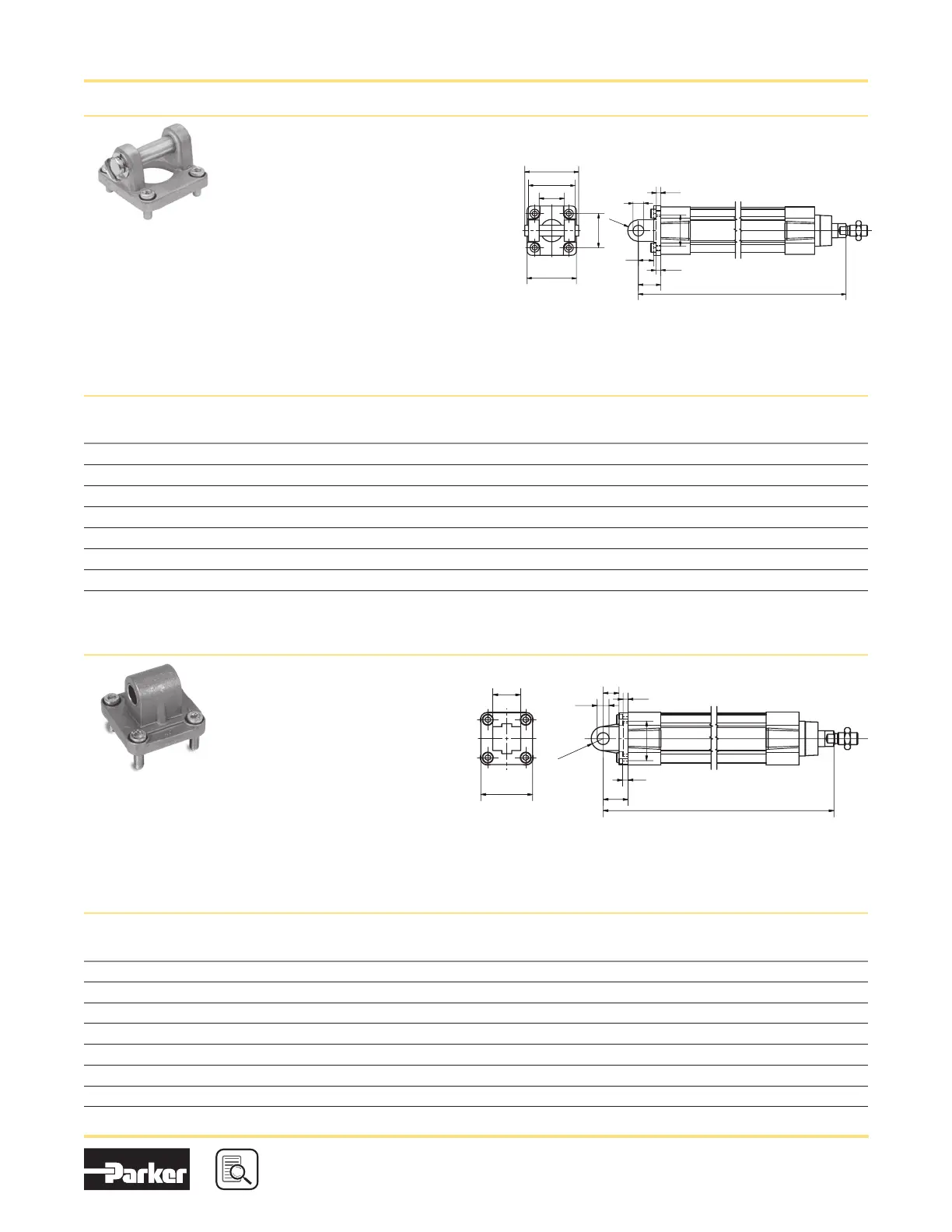

Tie Rod and Prole Pneumatic Cylinders
P1F Series
Catalog 0980
Accessories
Clevis Bracket - MP4
Intended for flexible mounting of
cylinder. Clevis bracket MP4 can
be combined with
clevis bracket MP2.
Materials:
Clevis bracket: Aluminium
Bush: Steel and PTFE
Mounting screws acc. to DIN 912:
Zinc-plated steel 8.8
Supplied complete with mounting screws
for attachment to the cylinder.
EW
E
L
CD
M
R
FL
L4
XD+S
D
L1


Clevis Bracket - MP2
Intended for flexible mounting of cylinder. Can
be combined with clevis bracket MP4 and
pivot bracket with rigid bearing AB7.
Materials:
Clevis bracket: Aluminium
Pin: Surface hardened steel
Locking pin: Spring steel
Circlips according to DIN 471:
Spring steel
Mounting screws acc. to DIN 912:
Zinc-plated steel 8.8
Supplied complete with mounting screws for
attachment to the cylinder.
E
C
UB
CB
T
G
FL
L4
M
R
CD
XD+S
D
L1
L
Ø


According to ISO 15552
Bore
size
mm
C
mm
E
mm
UB
mm
CB
mm
TG
mm
FL
mm
L1
mm
L
mm
L4
mm
D
mm
CD
mm
MR
mm
XD*
mm
Weight
kg Part number
32 53 45 45 26 32.5 22 5 13 5.5 30 10 10 142 0.08
P1C-4KMTB
40 60 52 52 28 38 25 5 16 5.5 35 12 12 160 0.10
P1C-4LMTB
50 68 65 60 32 46.5 27 5 16 6.5 40 12 12 170 0.18
P1C-4MMTB
63 78 75 70 40 56.5 32 5 21 6.5 45 16 16 190 0.24
P1C-4NMTB
80 98 95 90 50 72 36 5 22 10 45 16 16 210 0.49
P1C-4PMTB
100 118 115 110 60 89 41 5 27 10 55 20 20 230 0.73
P1C-4QMTB
125 139 140 130 70 110 50 7 30 10 60 25 25 275 1.37
P1C-4RMTB
*Does not apply to cylinders with piston rod extension or lock units.
According to ISO 15552
Bore
size
mm
CD
mm
D
mm
E
mm
EW
mm
FL
mm
L
mm
L1
mm
L4
mm
MR
mm
TG
mm
XD*
mm
Weight
kg Part number
32
10 30 47 26 22 12 6.5 6 10.5 32.5 142 0.08
P1C-4KMEB
40 12 35 52 28 25 16 5 5.5 12 38 160 0.11
P1C-4LMEB
50 12 40 65 32 27 16 5 6.5 12 46.5 170 0.18
P1C-4MMEB
63 16 45 78 40 32 21 5 6.5 16 56.5 190 0.28
P1C-4NMEB
80 16 45 95 50 36 22 5 10 16 72 210 0.52
P1C-4PMEB
100 20 55 115 60 41 27 5 10 20 89 230 0.79
P1C-4QMEB
125 25 60 140 70 50 30 7 10 25 110 275 1.46
P1C-4RMEB
*Does not apply to cylinders with piston rod extension or lock units.
