Parker P1F - Accessories

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
16
For inventory, lead times, and kit
lookup, visit www.pdnplu.com
15
13
14
12
10
7
1
1
6
7
5
4
3
4
8
5
2
2
11
11
10
10

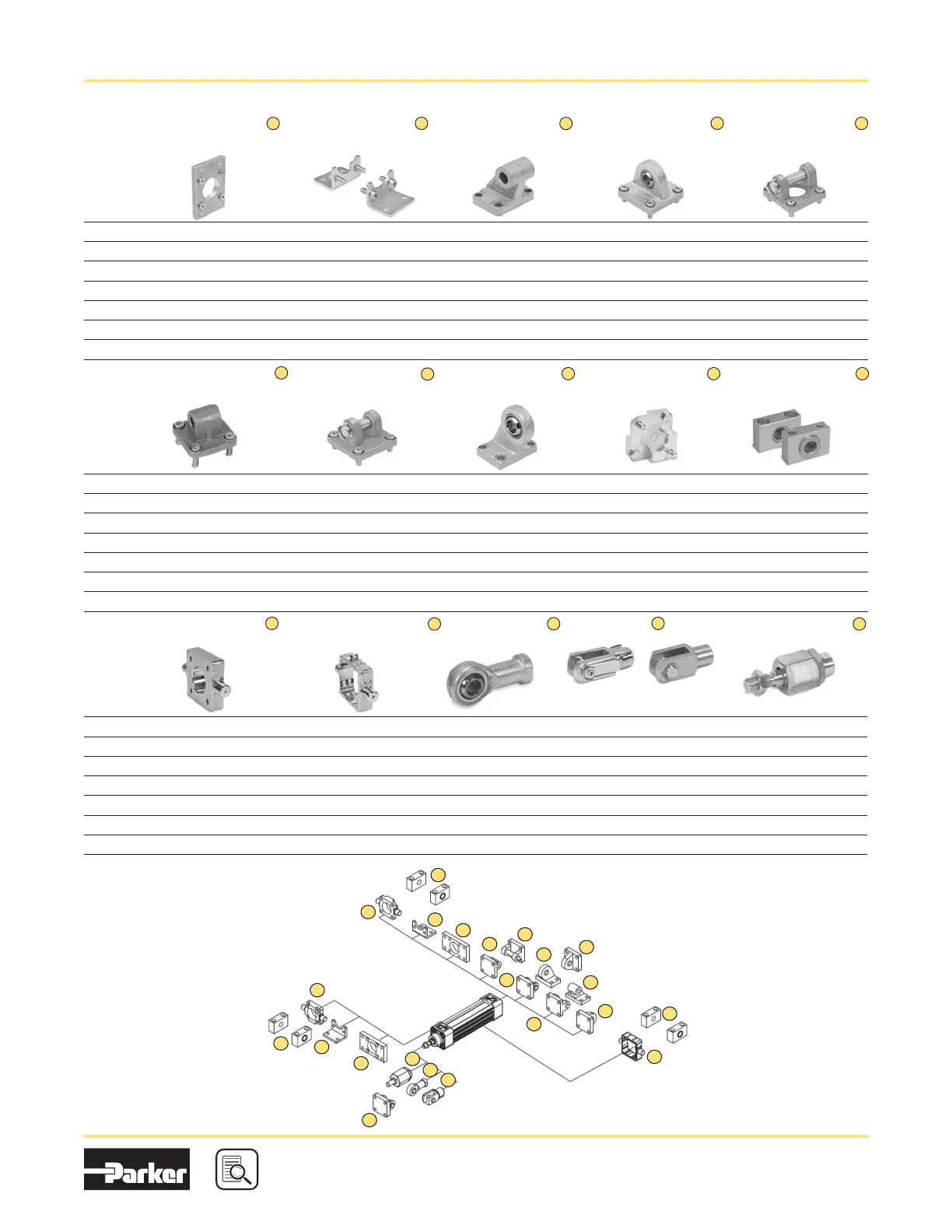

Flange MF1 / MF2 Foot brackets MS1 Pivot bracket with
rigid bearing AB7
Swivel eye bracket
MP6
Clevis bracket MP2
Bore
size
mm
32 P1C-4KMB P1C-4KMF P1C-4KMDB P1C-4KMSB P1C-4KMTB
40 P1C-4LMB P1C-4LMF P1C-4LMDB P1C-4LMSB P1C-4LMTB
50 P1C-4MMB P1C-4MMF P1C-4MMDB P1C-4MMSB P1C-4MMTB
63 P1C-4NMB P1C-4NMF P1C-4NMDB P1C-4NMSB P1C-4NMTB
80 P1C-4PMB P1C-4PMF P1C-4PMDB P1C-4PMSB P1C-4PMTB
100 P1C-4QMB P1C-4QMF P1C-4QMDB P1C-4QMSB P1C-4QMTB
125 P1C-4RMB P1C-4RMF P1C-4RMDB P1C-4RMSB P1C-4RMTB
Tie Rod and Prole Pneumatic Cylinders
P1F Series
Catalog 0980
Accessories
Mountings
Clevis bracket MP4 Clevis bracket AB6 Pivot bracket with
swivel bearing CS7
3 and 4 position
flange JP1
Pivot brackets AT4
Bore
size
mm
32 P1C-4KMEB P1C-4KMCB P1C-4KMAF P1E-6KB0 9301054261
40 P1C-4LMEB P1C-4LMCB P1C-4LMAF P1E-6LB0 9301054262
50 P1C-4MMEB P1C-4MMCB P1C-4MMAF P1E-6MB0 9301054262
63 P1C-4NMEB P1C-4NMCB P1C-4NMAF P1E-6NB0 9301054264
80 P1C-4PMEB P1C-4PMCB P1C-4PMAF P1E-6PB0 9301054264
100 P1C-4QMEB P1C-4QMCB P1C-4QMAF P1E-6QB0 9301054266
125 P1C-4RMEB P1C-4RMCB P1C-4RMAF ––– 9301054266
Flange trunnion
MT5/MT6
Intermediate trunnion
MT4
Swivel rod eye
AP6
Clevis AP2 Flexo coupling PM5
Bore
size
mm
32 P1D-4KMYF refer to page 22 P1C-4KRS P1C-4KRC P1S-4JRD P1C-4KRF
40 P1D-4LMYF
refer to page 22 P1C-4LRS P1C-4LRC P1S-4LRD P1C-4LRF
50 P1D-4MMYF
refer to page 22 P1C-4MRS P1C-4MRC P1S-4MRD P1C-4MRF
63 P1D-4NMYF
refer to page 22 P1C-4MRS P1C-4MRC P1S-4MRD P1C-4MRF
80 P1D-4PMYF
refer to page 22 P1C-4PRS P1C-4PRC P1S-4PRD P1C-4PRF
100 P1D-4QMYF
refer to page 22 P1C-4PRS P1C-4PRC P1S-4PRD P1C-4PRF
125 –––
refer to page 22 P1C-4RRS P1C-4RRC P1S-4RRD P1C-4RRF
4
5
1
2
3
6
7
12
13
14
15
11
10
8
9
Galvanized
steel
Stainless
steel
