Installing the kit‟s power cable
Refer to your car stereo‟s wiring diagram.
The red wire of the kit‟s cable must correspond to the constant +12V supply, the orange wire
to the ignition +12V and the black wire to ground. Check that the orange wire is not
connected to the constant +12V supply, as you could run down the vehicle‟s battery.
Note : On some vehicles, there is no ignition +12V on the vehicle’s connectors. You must therefore
connect the orange power supply wire to the fuse box or another ignition power source.
Installing the audio connectors
Installing the music
cable
Connect the music cable to the electronic box and place the USB /
iPod / Jack connectors into the glove box, the central console or the
parcel tray depending on the configuration of your dashboard. Make
sure that the cable is not pinched.
Note : Use the provided protection cap to protect the connectors.
Installing the music
cable grommet
system
The music cable grommet system allows you to adjust the cable length
while reducing its wear.

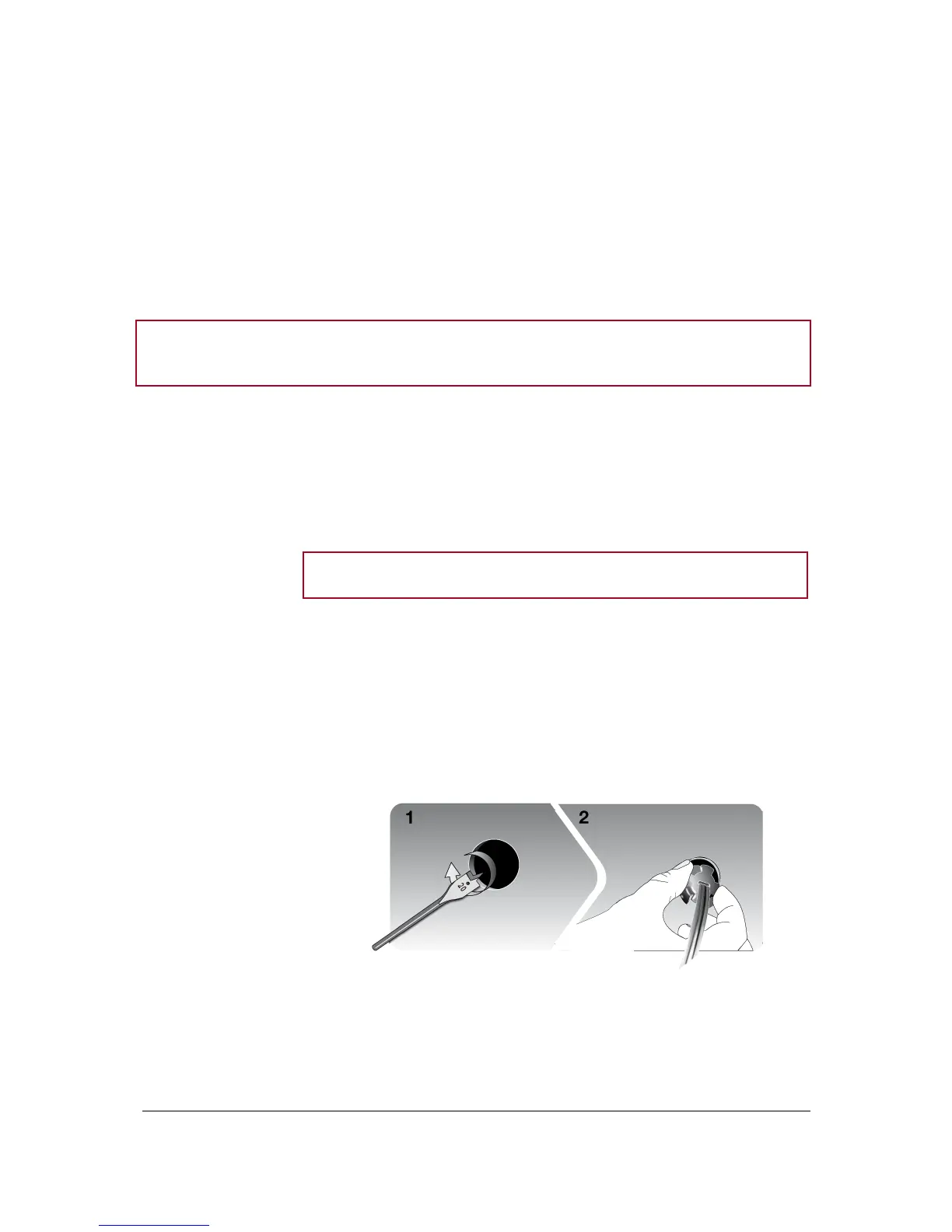

1. Drill a 20 mm hole in your dashboard (glove compartment or parcel
tray).
2. Insert manually two flexible arms of the grommet system.
3. Use a flat screwdriver in order to insert the last two arms.
> You can now connect your music cable to the bluebox.
