Parsun F15BW User Manual

67

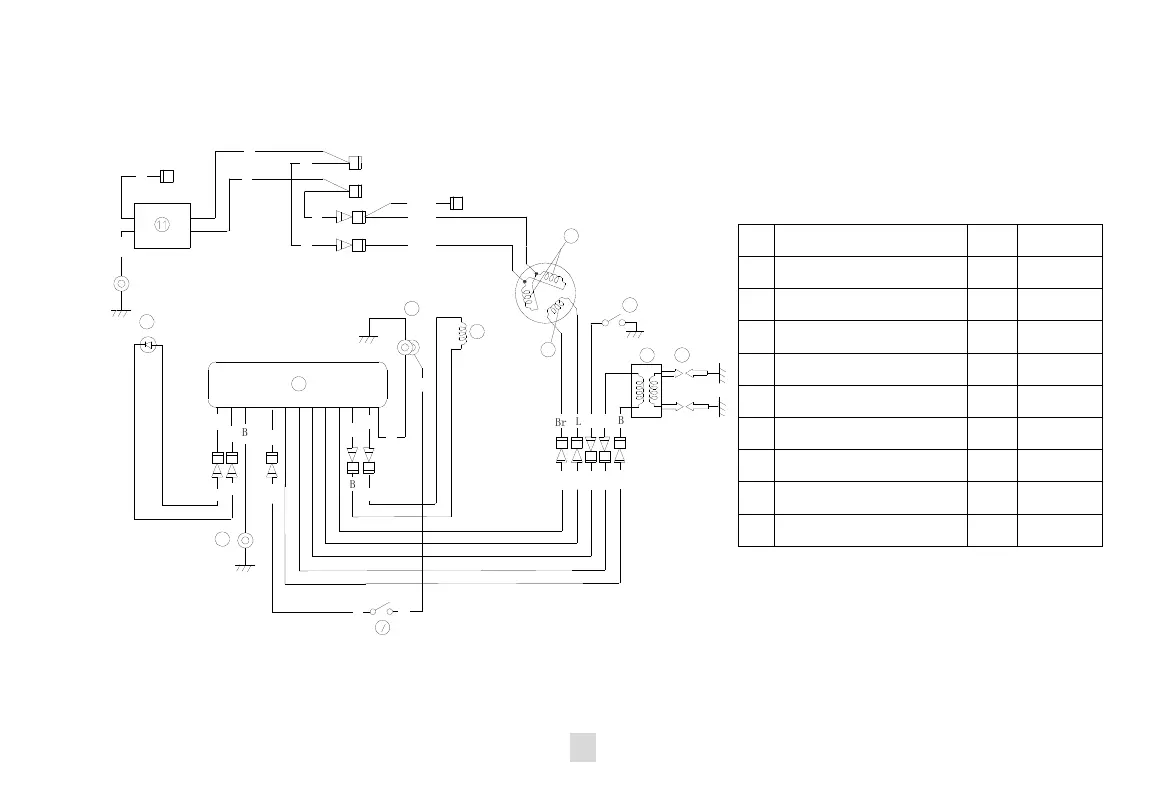

Circuit diagram
F15/9.9BM
7
Br
G
L
0
Y
R
Y/R
R/W
B
W
brown
green
blue
orange
YELLOW
red
yellow/red
RED/White
Black
white
6
W
9
Y/R
8
Y/R
Y
Y
B
W
W
B
B
R/W
B
8
5
3
Br
L
L
B r
Y
O
B
B
O
Y
10
4
2
G
G
G
L
L
L
L
L
B
R
B
1
B
R/W
F15/9.9BM
1C.D.I. R: red
2 LIGHTING COIL Y: yellow
3 CHARGE COIL O: orange
4 OIL PRESSURE SWITCH L: blue
5 IMPULSE COIL G: green
6 IGNITION COIL B: black
7 STOP SWITCH W: white
8 EARTHING Br: brown
9 WARNING LAMP Y/R: yellow/red
10 SPARK PLUG R/W: red/white
