Parsun T40BM User Manual

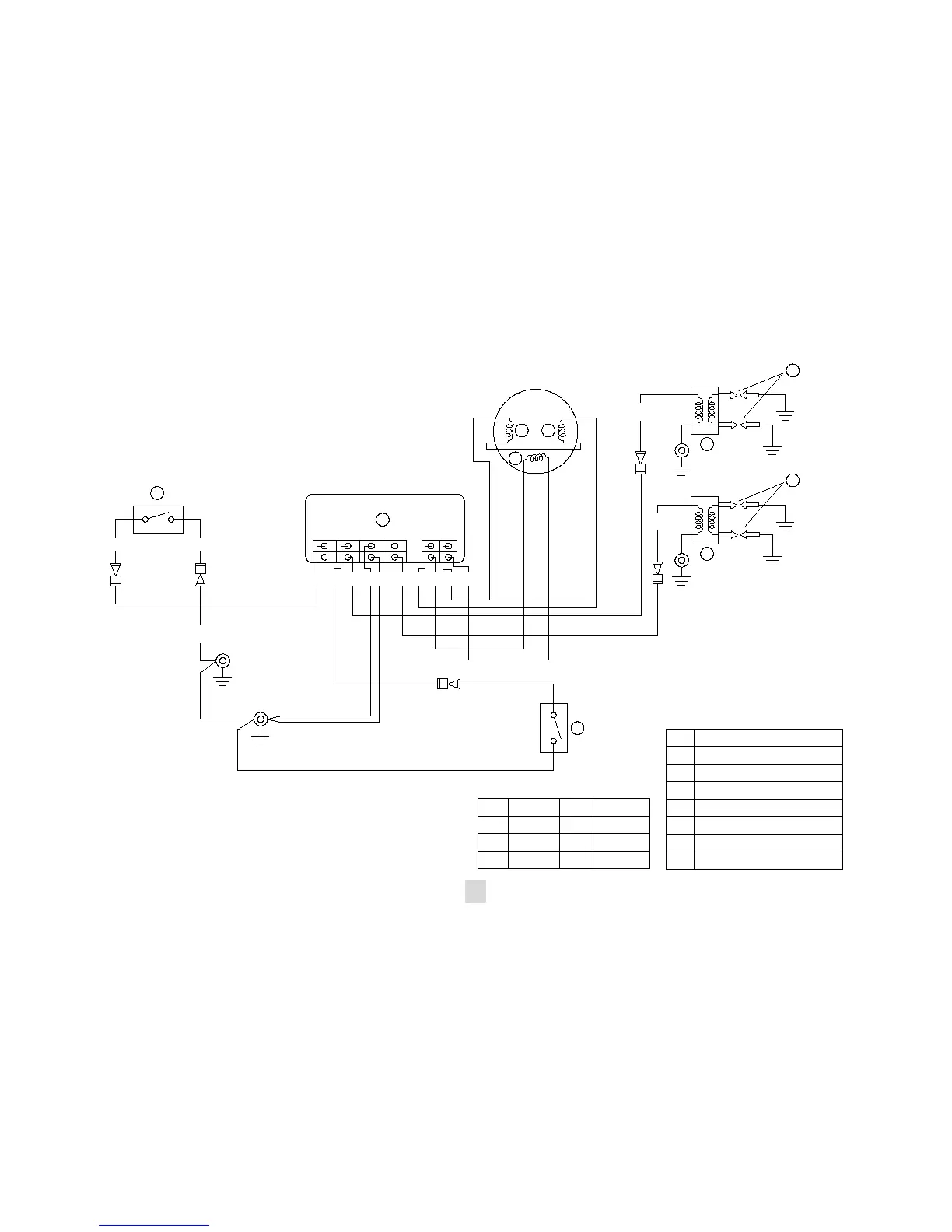

7. Circuit diagram
black/white
pink
P
black/orange
B/O B/W
white
black
red/white
blue
brown
W
B
R/W
L
Br
Spark plugs
Ignition coil
Engine stop switch
Pulser coil
Charge coil
7
6
5
4
3
Thermo switch
Ignition control module（CDI）
2
1
DESCRIPTION
SN.
3
B
B
R/W
Br
B/W
P
6
7
B/W
B/W
B
B/O
P
1
2
4
7
3
5
W
6
B/W
B
L
T40/30BM
