Partlow MIC 1400 - Figure 2-15 Relay Output 2

MIC 1400 ManualEdition 1 17
24 23 22
N/O
C
N/C
Relay
24 23 22
-
+
SSR
24 23 22
-
+
DC
FIGURE 2-15
Relay Output 2

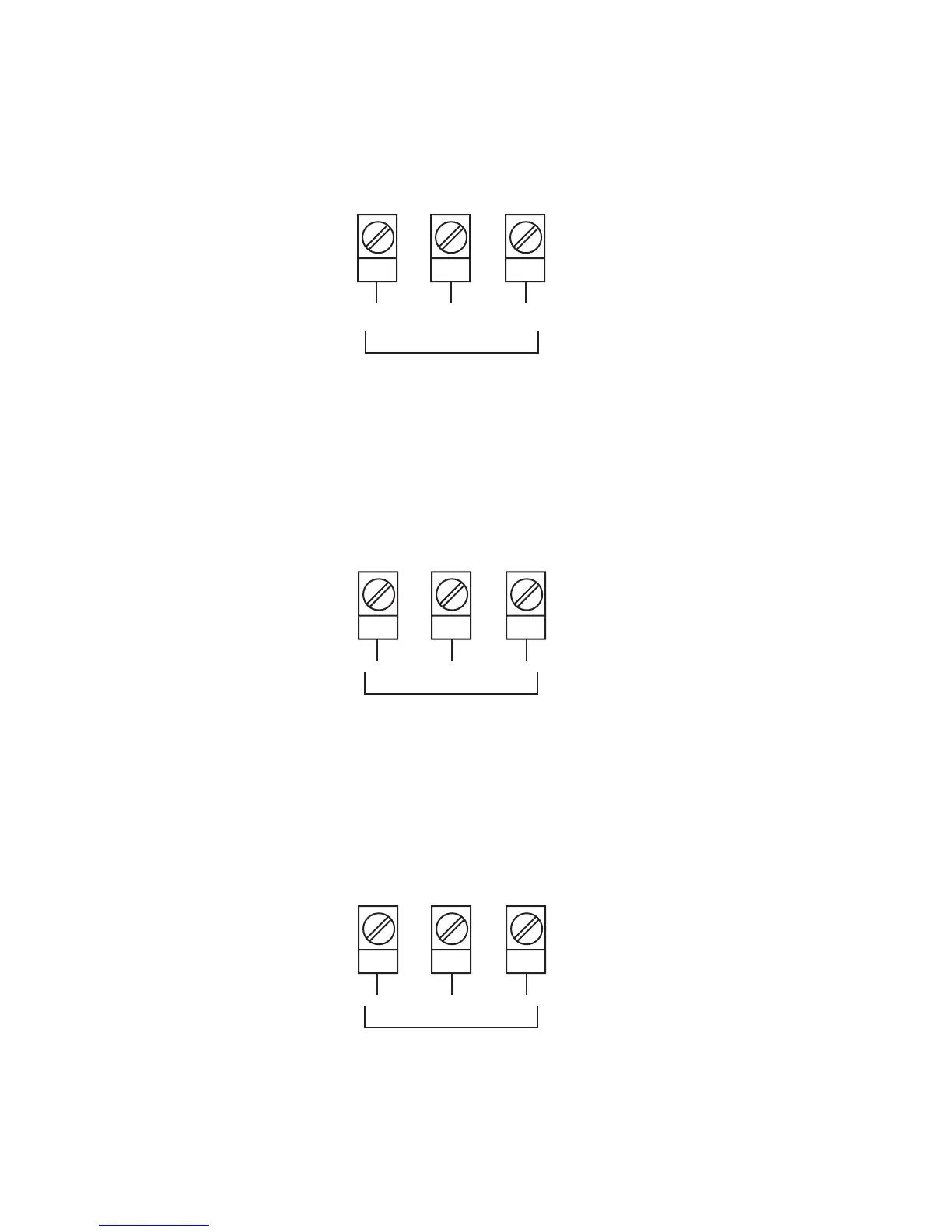

Connections are made to Output 2 relay as illustrated below. The contacts
are rated at 2 amp resistive, 120/240 VAC.
FIGURE 2-16
SSR Driver Output 2
Connections are made to Output 2 SSR Driver as illustrated below. The
solid state relay driver is a non-isolated 0-4 VDC nominal signal. Output
impedance is 250 ohms.
FIGURE 2-17
mADC Output 2
Make connections for DC Output 2 as illustrated below.
