Partlow MIC 1400 - Figure 2-18 Relay Output 3

MIC 1400 Manual Edition 1
18
10 11 12
N/OCN/C
Relay
10 11 12
-
+
SSR
10 11 12
-
+
DC

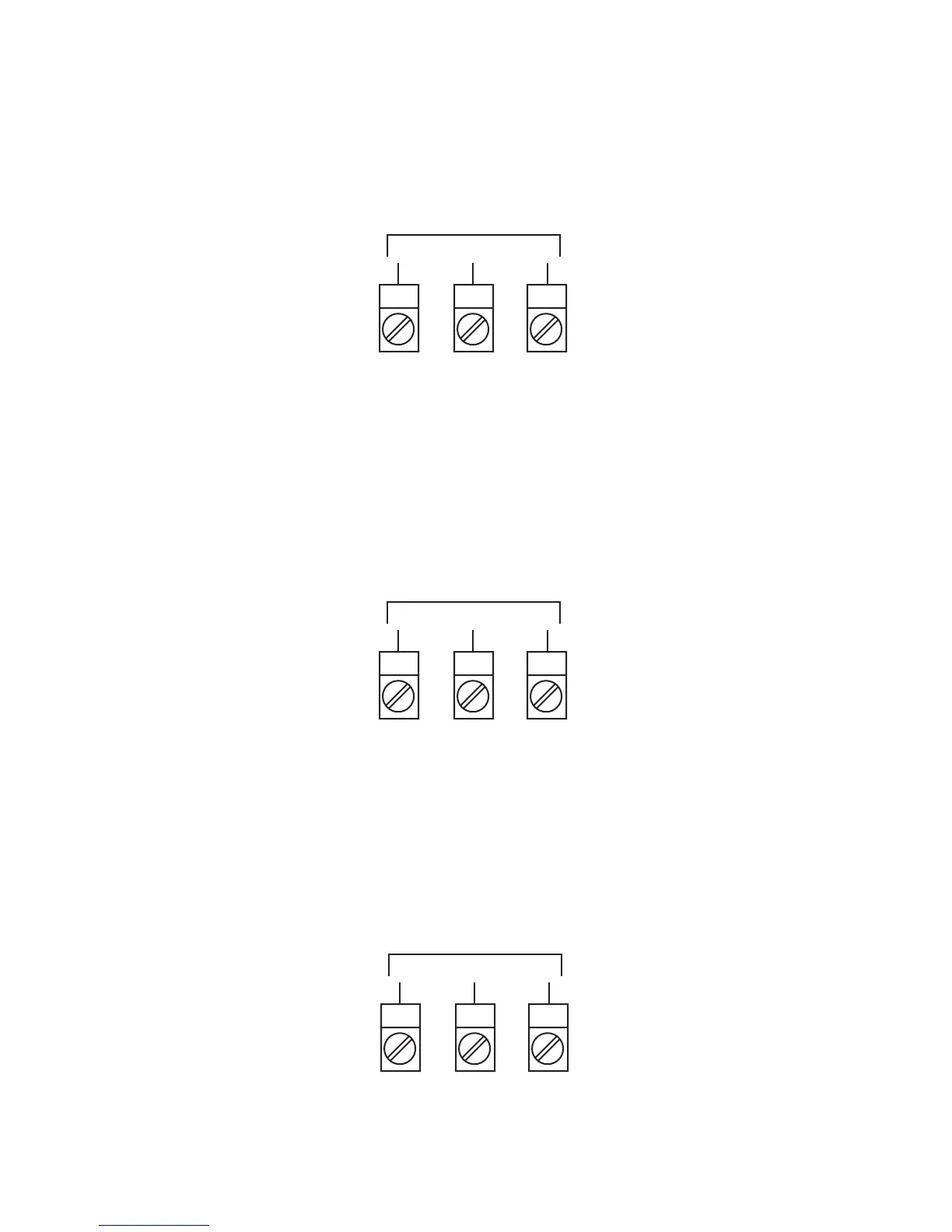

FIGURE 2-18
Relay Output 3
Connections are made to Output 3 relay as illustrated below. The contacts
are rated at 2 amp resistive, 120/240 VAC.
FIGURE 2-19
SSR Driver Output 3
Connections are made to Output 3 SSR Driver as illustrated below. The
solid state relay driver is a non-isolated 0-4 VDC nominal signal. Output
impedance is 250 ohms.
FIGURE 2-20
mADC Output 3 (Recorder Output Only)
Make connections for DC output 3 as illustrated below.
