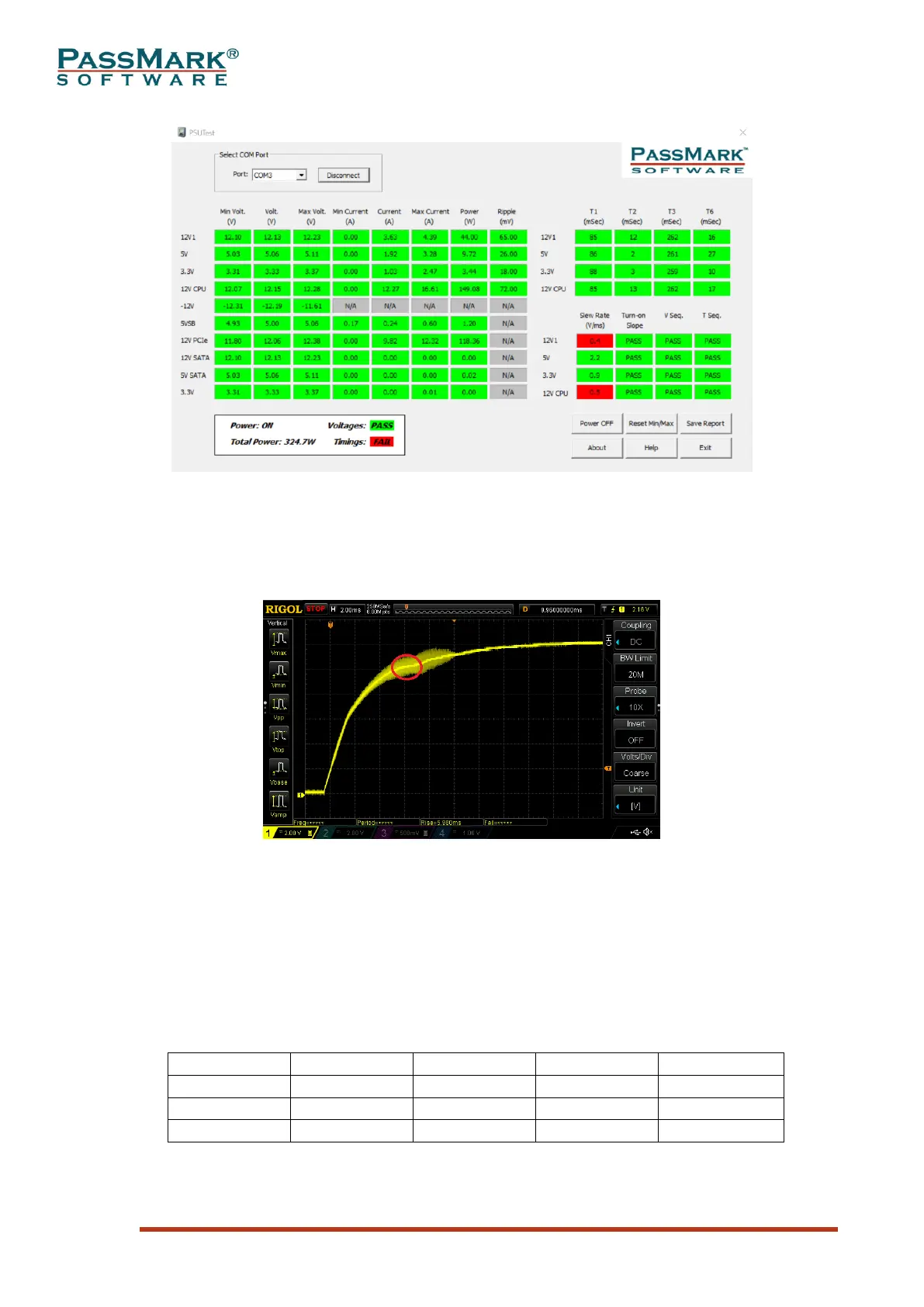

Inline PSU Tester – User’s Guide Page 28
Test Results:
Figure 24
- T2 Min Slew Rate for the 12V1 and 12V2 voltage rails failed to meet the criteria.
This is confirmed by looking at the 12V rail by an oscilloscope. As you can see
the area marked with red colour has a slew rate less than 0.6V/msec.
Figure 25
- Voltages were within the specification except for the -12V rail which went outside
approved limits when the PSU was under a heavy load (>300W).
- Efficiency: Using BurnInTest, we put system under load by running a
combination of tests simultaneously.
Test load 1: CPU (General purpose instructions, 7 Threads)
Test load 2: CPU (Maximum heat, 12 Threads) and 3D Graphics test (window
size 1024x768 pixels)
