Inline PSU Tester – User’s Guide Page 7

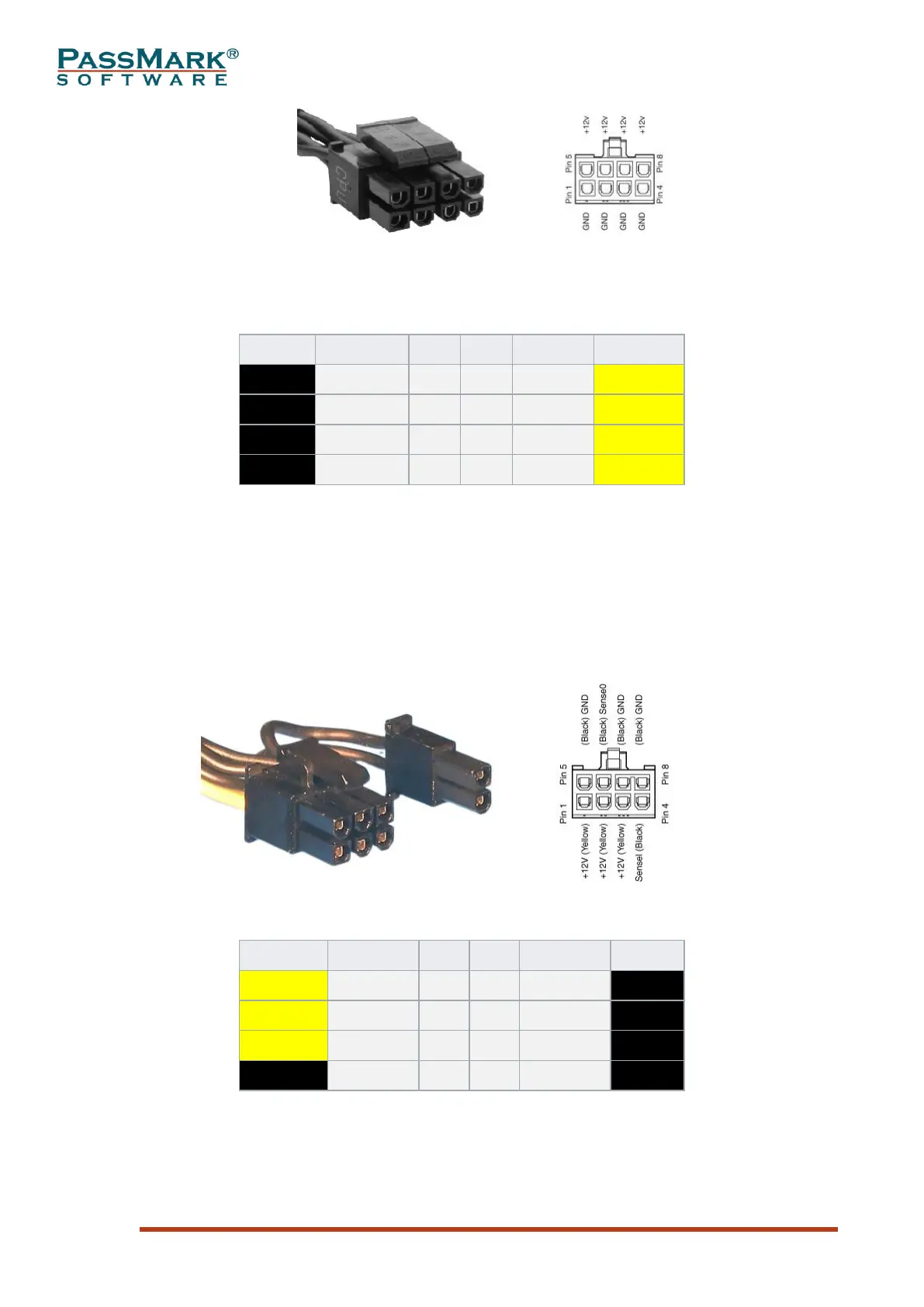

Figure 2: 8-pin CPU power connector
Color
Signal
Pin
Pin
Signal
Color
Black
Ground
1
5
+12 V
Yellow
Black
Ground
2
6
+12 V
Yellow
Black
Ground
3
7
+12 V
Yellow
Black
Ground
4
8
+12 V
Yellow
Table 3: 8-pin CPU power connector pinout
- PCI Express power cable: This is the cable that goes to the PCI Express cards
(e.g. graphic cards). Some graphic cards have 6 pin PCI Express power
connectors and others have 8 pin connectors. Many power supplies come with
a 6+2 PCI Express power cable which is compatible with both kinds of
graphic cards. The 6+2 PCI Express power cable is made up of two pieces: a
6-pin piece, and a 2-pin piece.
Figure 3: 8-pin PCI Express connector
Color
Signal
Pin
Pin
Signal
Color
Yellow
+12 V
1
5
Ground
Black
Yellow
+12 V
2
6
Ground
Black
Yellow
+12 V
3
7
Ground
Black
Black
Ground
4
8
Ground
Black
Table 4: 8-pin PCI Express connector pinout
- SATA power cable: This is the cable that goes to the hard drives.
