Service Manual DS 85
© Hirschmann Rev.G 10/05/15 190166_G.DOCXG
30
E64

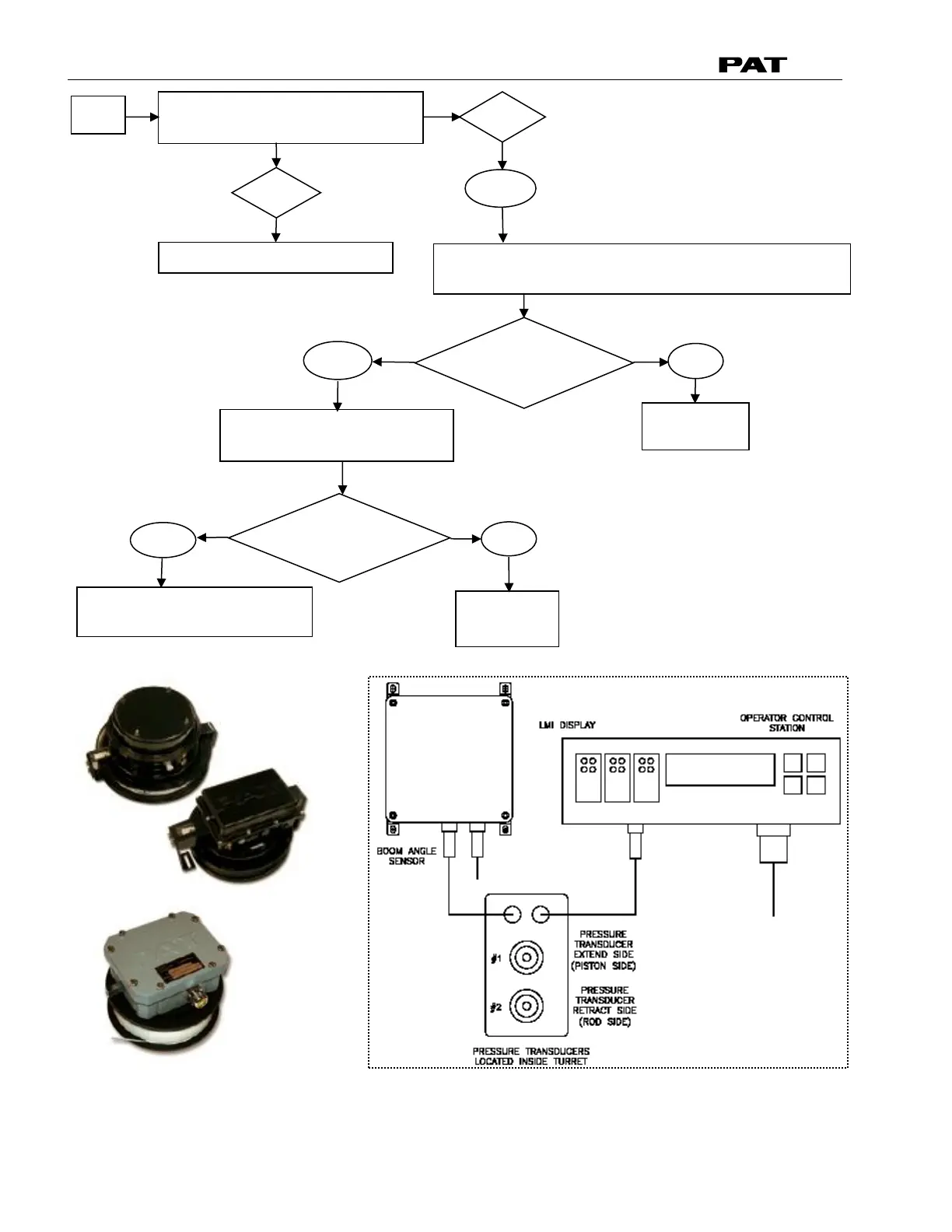

Connect the two cables on the
Transducer block together.
E61
Yes
Ohm the cable from the pressure transducer block
to the length/angle sensor or angle sensor box.
Cable
checks
good
No
Yes
Replace
the cable.
Check connector at angle
sensor box or cable reel.
Connector
checks
good
No
Yes
Replace
connector.
Replace can bus board in
angle sensor or cable reel.
E62
Replace transducer block.
