Service Manual DS 85
© Hirschmann Rev.G 10/05/15 190166_G.DOCXG

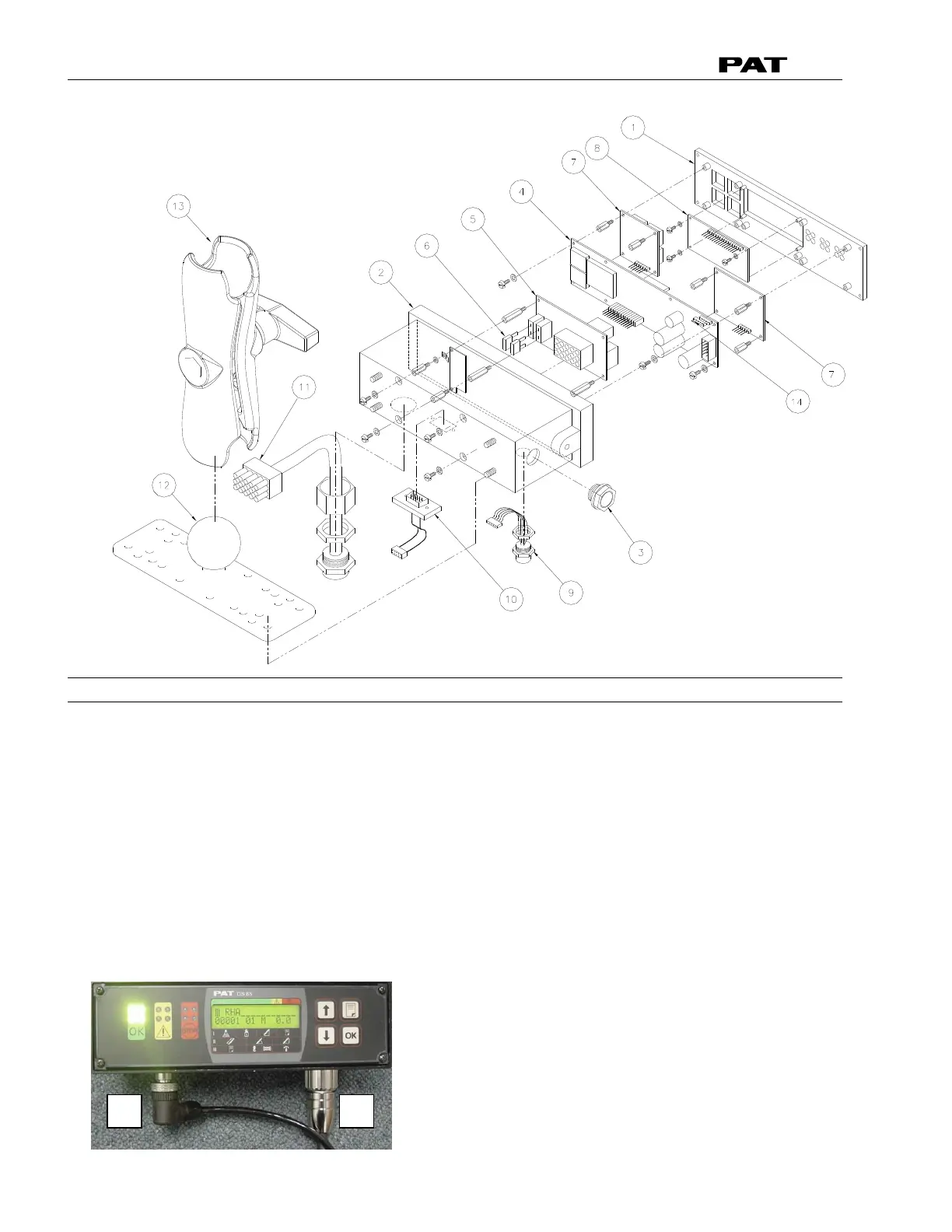

16 SPARE PART LISTINGS
16.1 CONSOLE/CENTRAL UNIT
PART NO. 031-300-060-455
NO. PART NO. QTY DESCRIPTION
1 024-085-100-002 1 FRONTFACE, PREASSEMBLED
2 024-000-050-002 1 HOUSING, DS85
3 024-000-100-095 1 CENTRAL UNIT ACCY, MEMBRANE VENT, PG11
4 024-050-300-101 1 MAINBOARD, CAN w/o FLASH E-EPROM
5 024-050-300-106 1 CONNECTION BOARD
6 031-300-050-223 2 FUSE, 2 AMP
7 024-050-300-110 1 KEYBOARD
8 050-000-100-271 1 LC DISPLAY UNIT
9 092-000-060-391 1 CAN BUS CONNECTOR, 5-PIN FEMALE, 120 ohms
10 024-050-290-101 1 RIBBON CABLE ASSY
11 031-300-060-700 1 CABLE ASSEMBLY, W/ GROUND CONNECTIONS
12 031-300-060-696 1 MOUNTING ASSEMBLY, 1.5” BALL
13 031-300-050-624 1 MOUNTING ARM, 4.63” DOUBLE SOCKET FOR 1.5” BALL
14 092-000-060-390 1 CAN BUS TERMINATOR, 120 OHMS
Cable assemblies not included with console:
1. Power Cable assembly (wiring harness)
PART NO. 031-300-060-443
2. CAN bus from console (90° connector) to pressure
transducer block PART NO. 031-300-060-453
3. CAN bus from pressure transducer to angle sensor box
PART NO. 10968 *(not shown)
See next page:
