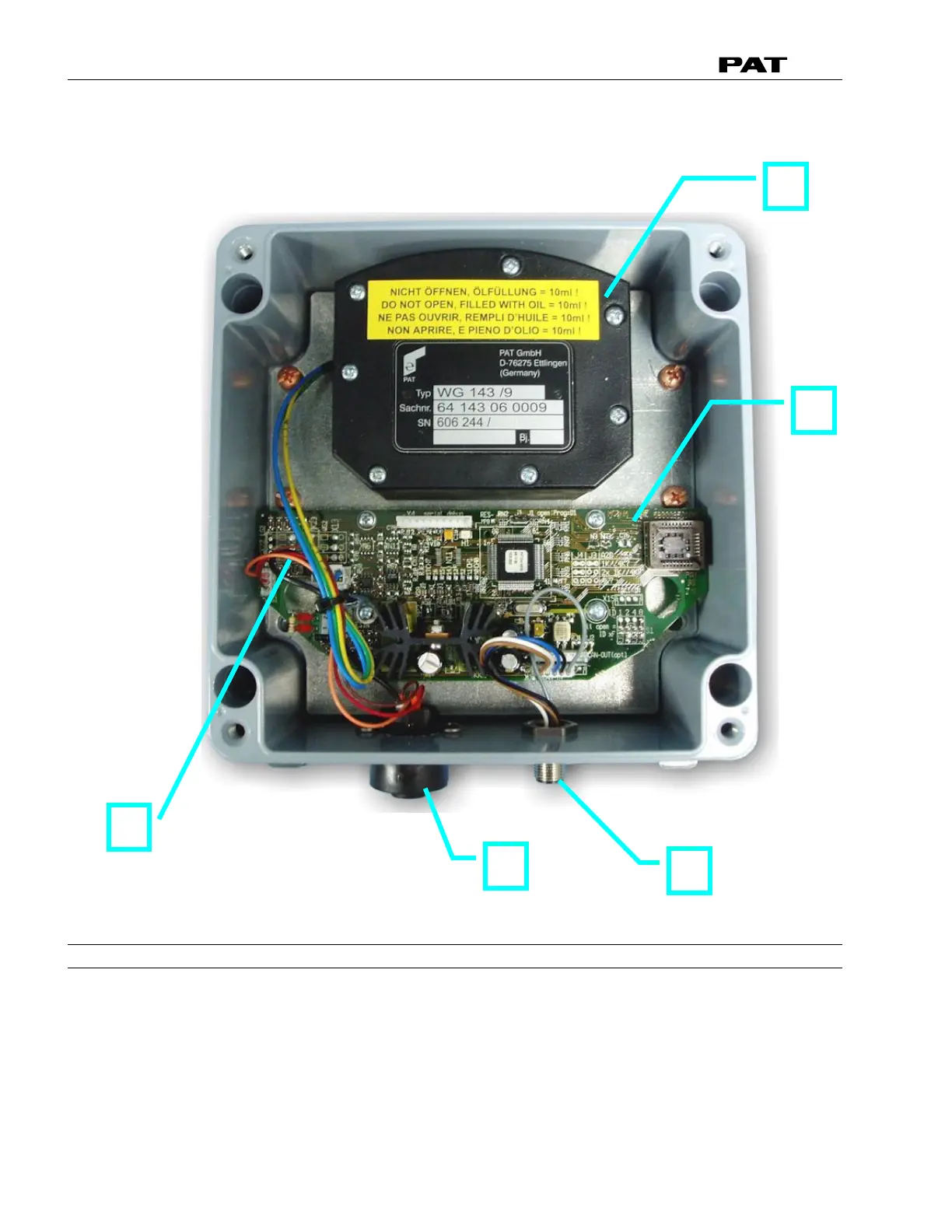

16.3 ANGLE SENSOR BOX
PART NO. 031-300-060-437
NO. PART NO. QTY DESCRIPTION
1 064-143-060-009 1 SENSOR, ANGLE WG143/9 iFLEX CAN
2 068-000-300-103 1 CAN-BUS CONVERTER BOARD 10-30V
3 932321100 1 CONNECTOR, PANEL MOUNT SOCKET 3 + PE
4 092-000-060-387 1 CONNECTOR, BRAD HARRISON 5-PIN RECPT. MALE
5 092-000-060-382 1 CABLE, 3POL JST-PLUG 15cm
1
2
5
3
4
