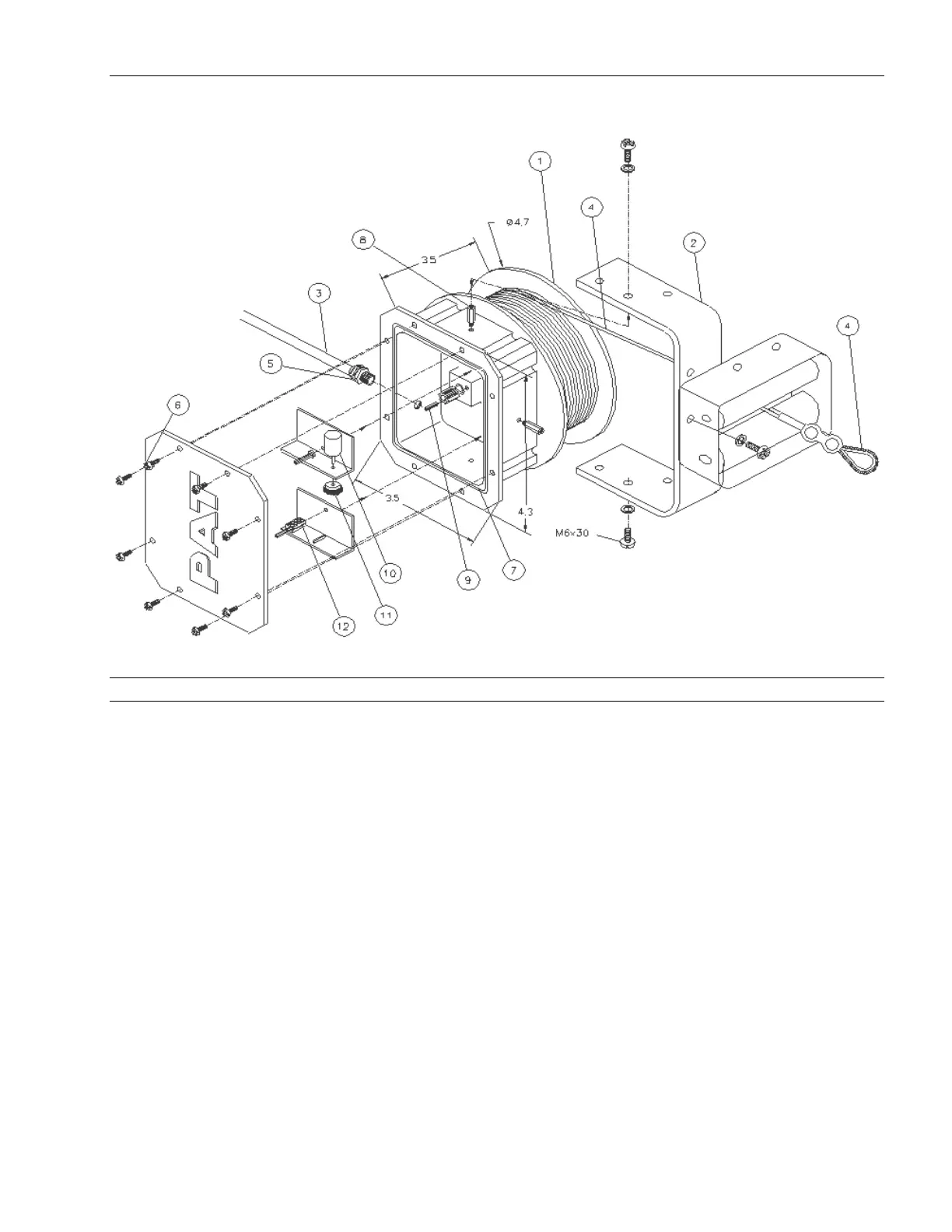

16.4 CABLE REEL ASSEMBLY
PART NO. 060826
NO. PART NO. QTY DESCRIPTION
1 N/A 1 HARDWARE, DRUM (FACTORY SERVICEABLE)
2 031-300-050-131 1 BRACKET, LG105 WITH CABLE GUIDE
3 031-300-060-374 1 CABLE ASSY, 15’ (3 COND. WITH 4 PIN PLUG)
4 060831 1 CABLE ASSY, LENGTH (35’) w/ RING TERMINAL & CLAMP
5 024-441-060-409 1 STRAIN RELIEF, PG9 4-6mm YELLOW/WHITE
6 031-300-060-682 1 HARDWARE, LG105 COVER SCREW SET, M4x12
7 209-032-010-501 1 GASKET, O-RING FOR LG105 COVER
8 031-300-060-683 4 HARDWARE, LG105 EXTERNAL SET
9 031-300-060-684 1 HARDWARE, LG105 INTERNAL SET
10 031-300-060-578 1 LENGTH POT ASSY, LG105/0006
11 067-105-110-001 1 GEAR WHEEL, LG105/2,WORM WHEELCOMPLETE
W/FIXING MATERIAL
12 031-300-100-462 1 TERMINAL STRIP, 4 POS.
