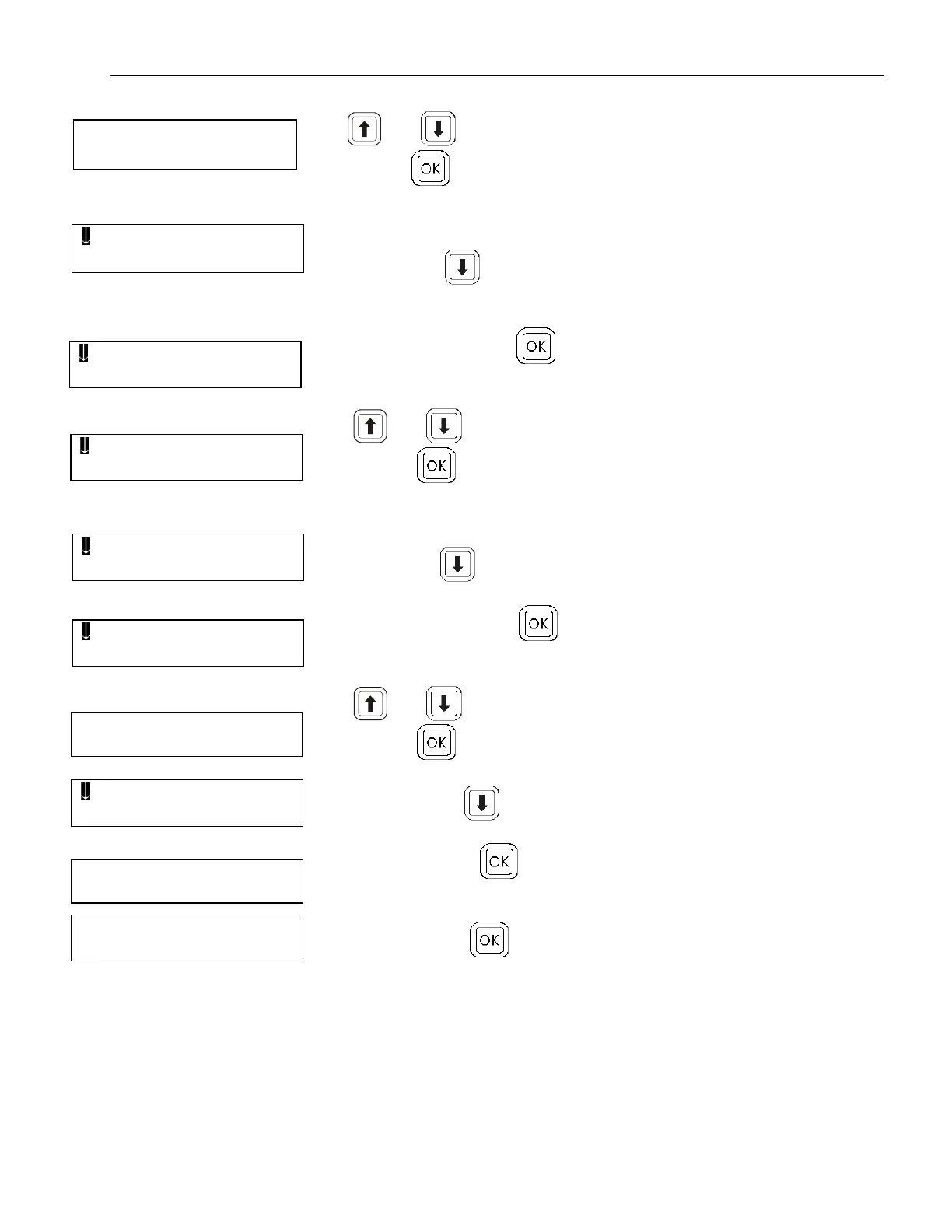

Use and keys to change CHANGE angle to match the BOOM T
angle. Press to calibrate the main boom angle.
Move boom so the CHANGE angle is with in ±2° of the BOOM T angle. to
continue, press.
Mark CHANGE and press to change angle calibration. Mark, OK if
no change is necessary.
Use and keys to change CHANGE angle to match the BOOM T
angle. Press to calibrate the main boom angle.
Move boom so the CHANGE angle is with in ±2° of the BOOM T angle. to
continue, press .
Mark CHANGE and press to change angle calibration. Mark, OK if
no change is necessary.
Use and keys to change CHANGE angle to match the BOOM T
angle. Press to calibrate the main boom angle.
To continue, press .
Mark YES and press to change angle calibration. Mark, NO if the
changes are not to be saved.
Mark OK and press to save changes.
BOOM T 40.3 DEG
CHANG 40.0 DEG
BOOM T 65.6 DEG
40.3 DEG
BOOM T 65.6 DEG
CHANG 65.6 DEG
BOOM T 65.6 DEG
CHANG 65.6 DEG
BOOM T 74.9 DEG
65.4 DEG
BOOM T 74.9 DEG
CHANG 76.1 DEG
▓ BOOM T 74.9 DEG
CHANGE 75.0 DEG
SAVE CALIB. ?
YES
▓ YES
NO
▓ OK
EXIT
