SmartNode 4131 User Manual • Port pin-outs
Introduction
This section provides pin-out information for the ports of the SmartNode.
Console port

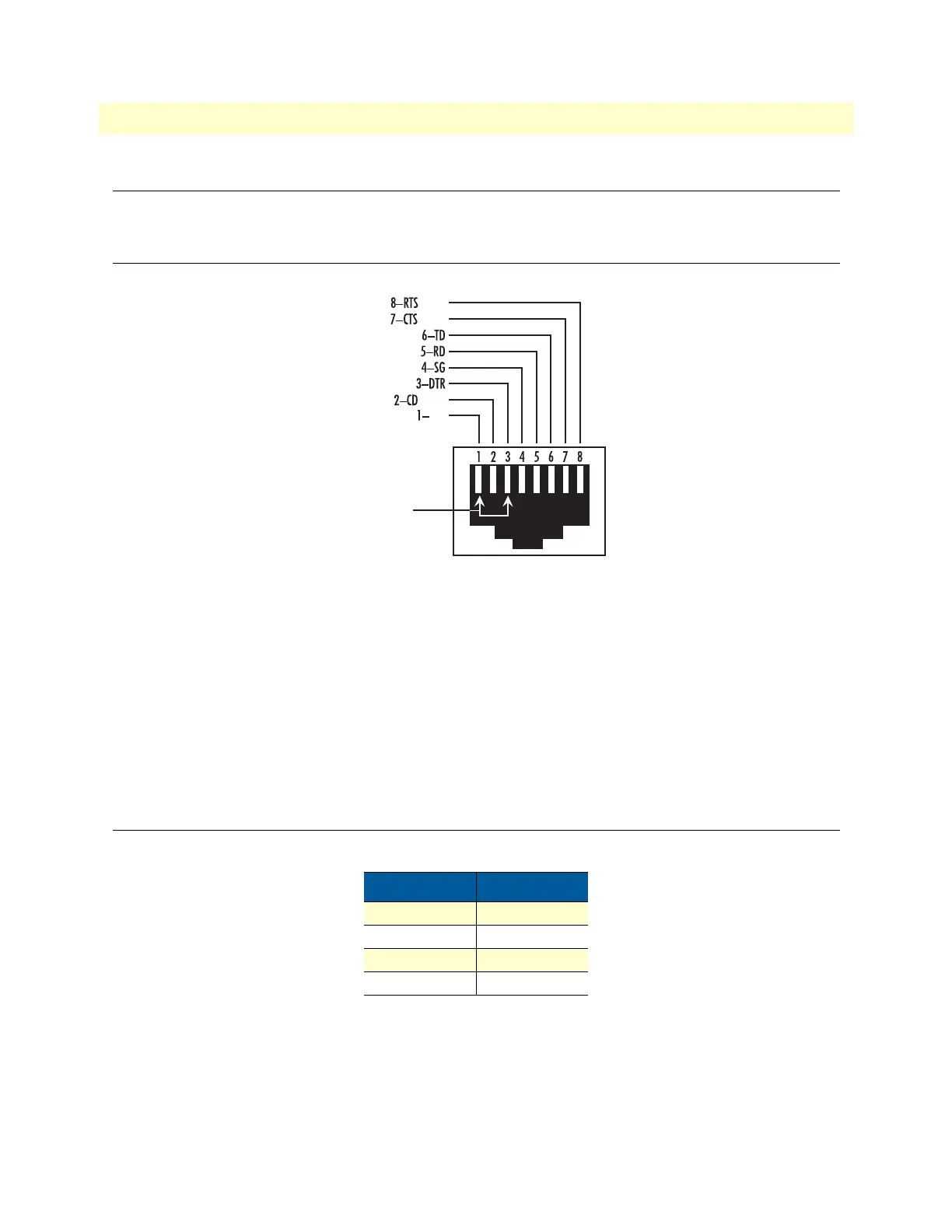

Figure 14. EIA-561 (RJ-45 8-pin) port
Note N/C means no internal electrical connection.
Console Connection Settings:
• 19200bps
• 8 bits, no parity
•1 stop bit
•flow control off
Ethernet
Note Pins not listed are not used.
Table 6. 10/100 Base-T RJ-45 socket
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
DSR
(N/C)
(N/C)
(N/C)
Pins 1 & 3 are
connected together
