Introduction 55
SmartNode 4131 User Manual F • Reset Button Functions
Introduction
The Reset button (see figure 15 on page 55) is used to do the following:
• Reboot the SmartNode device (see section “Resetting the SmartNode device when it is operating and the
Power LED is lit” on page 56)
• Erase the startup-config settings, which is followed by a SmartNode device reboot as indicated by the slow
blinking of all LEDs (see section
“Resetting the SmartNode device when it is operating and the Power LED
is lit” on page 56)
• Factory reset, which is followed by a device reboot as indicated by the fast blinking of all LEDs (see section
“Resetting the SmartNode device when it is operating and the Power LED is lit” on page 56)
• Troubleshoot the SmartNode device if it is not booting properly (see section “Resetting the SmartNode device
when it is initially powered off” on page 56)

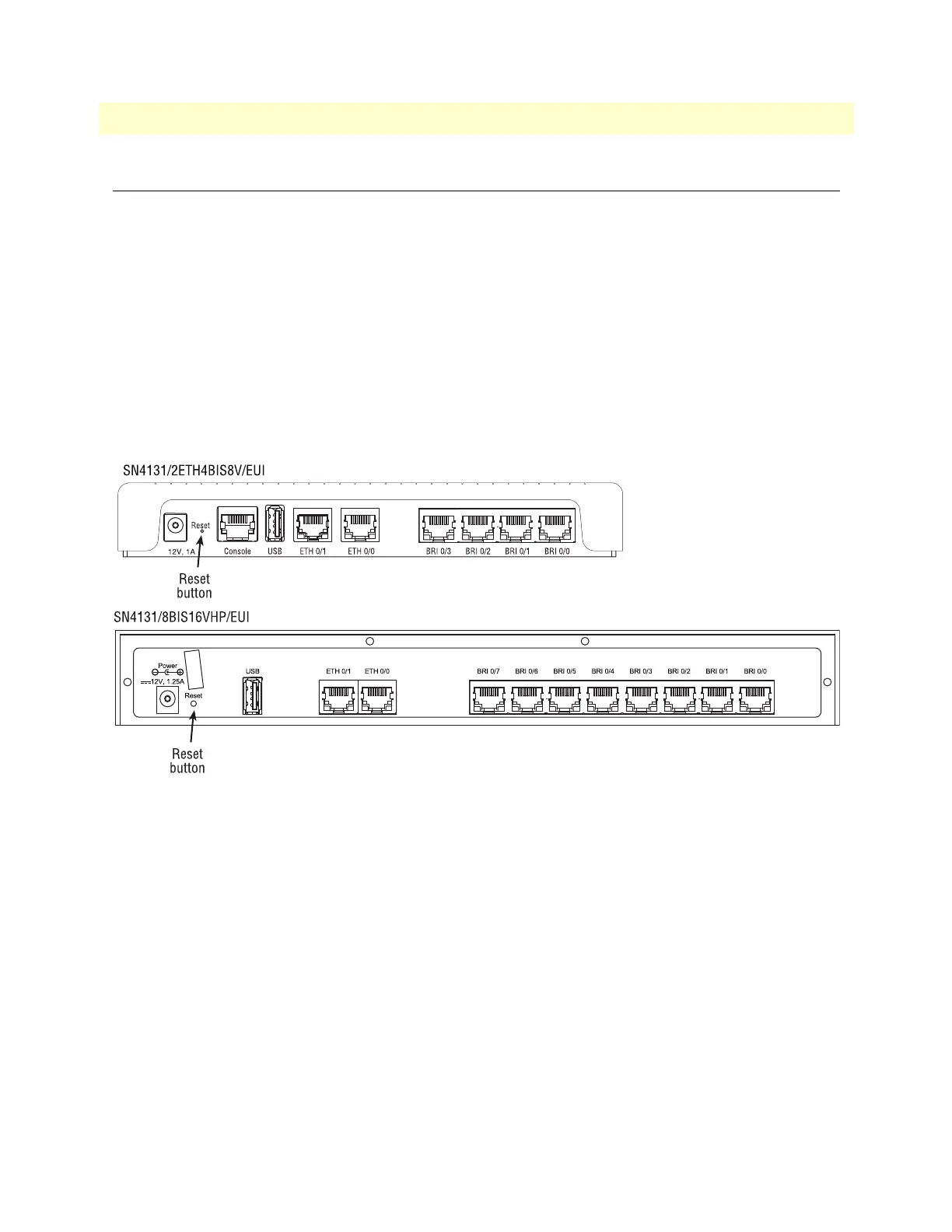

Figure 15. SN4130 Reset button
