8
A920
REFERENCE GUIDE
4.2
A920
T
erminal Vie
w
from All Si
des

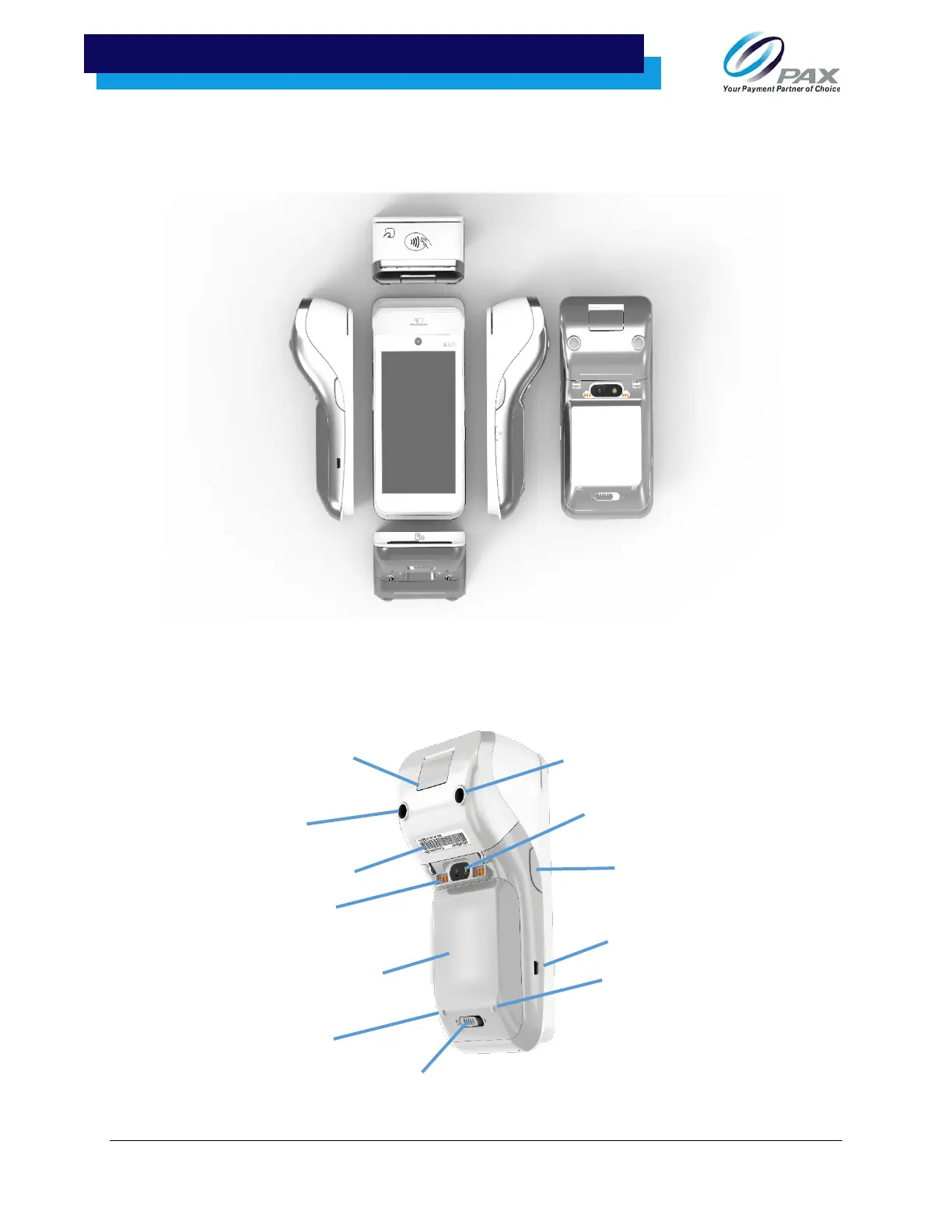

4
.2.1
A920
Componen
ts, Int
erf
ace, and
Po
r
t
s
(Back)
Soft Base
Soft Base
Soft Base
Soft Base
5 Megapixel Auto Focus R
e
ar
Battery C
over
Battery H
atch
MAC Addre
ss Label
Optio
nal Stan
d POGO
Connec
tors
Charging Port
Volum
e Contr
ol Button
Printer Roll Hatch
13
15
Table of Contents
Preface
2
Revision History
3
Table of Contents
4
Introduction
7
Purpose
7
Intended Audience
7
Acronyms and Terms
8
Packaging
9
A920 Overpack Carton
9
A920 Terminal Box
9
A920 Protective Cardboard Inserts
10
A920 Box Contents
10
Product Description
11
A920 Part Number Information
11
Serial Number Location on Terminal
12
A920 Functional Information
13
Technical Details and Specs
13
A920 Terminal View from All Sides
14
A920 Components, Interface, and Ports (Back)
14
A920 Components, Interface, and Ports (Front)
15
Terminal Location
16
Ac Power Connection
17
Terminal Ports
18
Battery Information
19
Battery Specifications
19
Charging Battery
19
Remove and Install Battery
20
Install A920 Sim, Sam, and Micro Sd Card
22
Sim, Sam & Micro Sd Card Installation
22
Card Readers
24
Magnetic Strip Reader
24
Emv Card Reader
24
Pfc/Contactless Card Reader
25
Basic Operation Instructions
26
Power on
26
Power off Terminal
26
Adjust the Display Brightness
27
Adjust the Volume
28
Take a Screenshot
29
Cleaning the Device
29
Replace Paper Roll
30
Setting up Communications
33
Wi-Fi Connection
33
Dhcp Wi-Fi Connection
34
Static Ip
36
Manual Static Ip
39
Proxy Setup
43
Cellular 4G Communication
49
L920 Multi-Functional & Charging A920 Base
54
Packaging
55
L920 Overpack Cartons
55
Multi-Functional Base Box
56
Box Contents
57
L920 Part Number and Part Number Description
58
L920-Bc & L920-Bm Serial Number Location and Format
58
L920-Bm Part Number, Hardware, os and Boot Version
59
L920-Bm Multiple Port Sticker
59
L920-Bc Multi-Ports
59
L920 Dimensions
60
L920 Product Description
60
L920-Bc Bottom View
60
L920-Bm Bottom View
60
Frequently Asked Questions
61
What Is the Operating System of A920
61
There's no Physical Keypad; How Can I Meet Ada Compliance
61
Power Consumption of A920
61
What's the A920 Screen Brightness
61
Does A920 Support Dual Band Wi-Fi
61
How Many Sam Slots Does A920 Have
61
How Many Sim Slot Does A920 Have
61
How to Turn On/Off the Screen Saver
62
How to Set the Screen Sleep Time
62
What Is the Reset Button
63
What Should I Do if the Touchscreen Is Unresponsive or Lags
63
What Should I Do if the Camera Is Not Reading Barcodes
63
Pax Customer Support
64
