Payne PG8MAA - Gas Control Valve Diagram; Orifice Hole Diagram; Amp. Draw Chrck with Ammeter Diagram

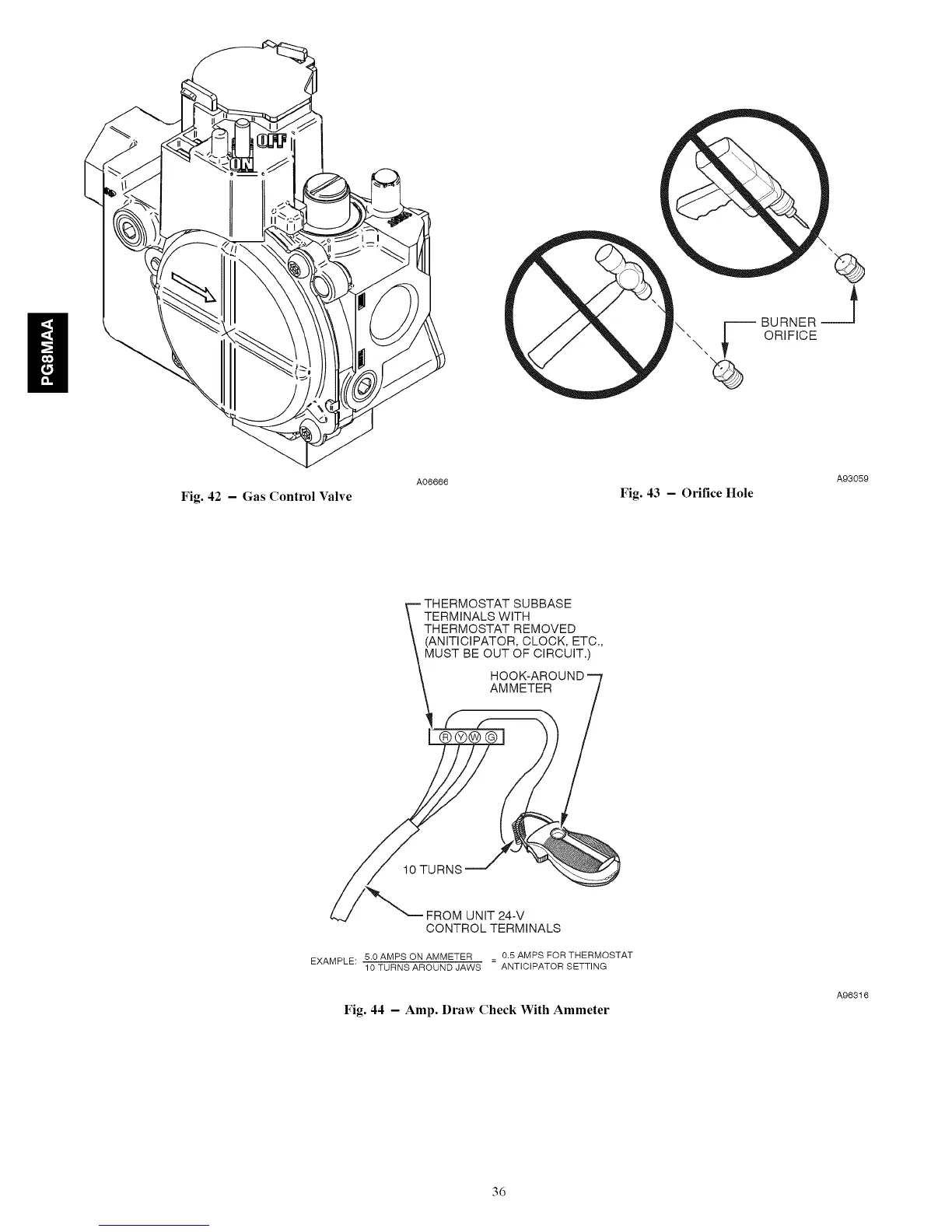

Fig. 42 - Gas Control Valve
A06666
Fig. 43 - Orifice Hole
A93059
THERMOSTAT SUBBASE
TERMINALS WITH
THERMOSTAT REMOVED
(ANITICIPATOR, CLOCK, ETC.,
MUST BE OUT OF CIRCUIT.)
HOOK-AR(
AMMETER
FROM UNIT 24-V
CONTROL TERMINALS
EXAMPLE: 5.0 AMPS ON AMMETER = 0.5 AMPS FOR THERMOSTAT
10 TURNS AROUND JAWS ANTICIPATOR SETTING
Fig. 44 - Amp. Draw Check With Ammeter
A96316
