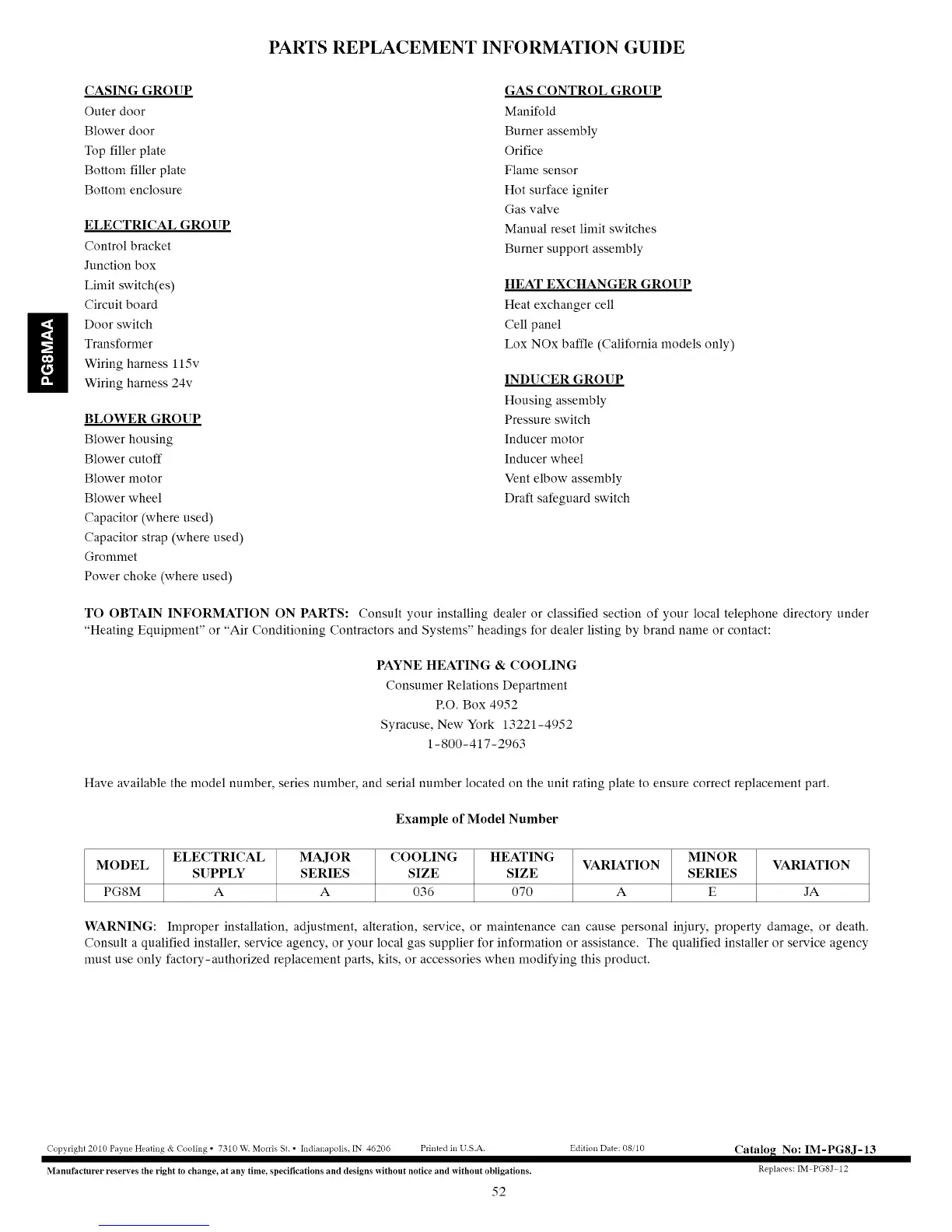

PARTS REPLACEMENT INFORMATION GUIDE
CASING GROUP
Outer door
Blower door
Top filler plate
Bottom filler plate
Bottom enclosure
ELECTRICAL GROUP
Control bracket
Junction box
Linfit switch(es)
Circuit board
Door switch
Transformer
Wiring harness l15v
Wiring harness 24v
BLOWER GROUP
Blower housing
Blower cutoff
Blower motor
Blower wheel
Capacitor (where used)
Capacitor strap (where used)
Grommet
Power choke (where used)
GAS CONTROL GROUP
Manifold
Burner assembly
Orifice
Flame sensor
Hot surface igniter
Gas valve
Manual reset linfit switches
Burner support assembly
HEAT EXCHANGER GROUP
Heat exchanger cell
Cell panel
Lox NOx baffle (California models only)
INDUCER GROUP
Housing assembly
Pressure switch
Inducer motor
Inducer wheel
Vent elbow assembly
Draft safeguard switch
TO OBTAIN INFORMATION ON PARTS: Consult your installing dealer or classified section of your local telephone directory under
"Heating Equipment" or "Air Conditioning Contractors and Systems" headings for dealer listing by brand name or contact:
PAYNE HEATING & COOLING
Consumer Relations Department
P.O. Box 4952
Syracuse, New York 13221-4952
1-800-417-2963
Have available the model number, series number, and serial number located on the unit rating plate to ensure correct replacement part.
Example of Model Number
ELECTRICAL MAJOR COOLING HEATING MINOR
MODEL VARIATION VARIATION
SUPPLY SERIES SIZE SIZE SERIES
PG8M A A 036 070 A E JA
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause personal injury, property damage, or death.
Consult a qualified installer, service agency, or your local gas supplier for information or assistance. The qualified installer or service agency
must use only factory-authorized replacement parts, kits, or accessories when modifying this product.
Copyright 2010 Payne Heating & Cooling * 7310 W. Morris St. * Indianapolis, IN 46206 Printed in U.S.A.
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
52
Edition Date: 08_10
Catalo_ No: IM-PGSJ-13
Replaces: IM PGSJ 12
