NMS044 Reference Manual Establishing Service for the Gateway 14
2.2.2 Installing the SIM Card
With the system powered off, install the SIM card by following these steps:
Step 1. Using the provided #2 Phillips head screw driver, remove the 2 screws holding
the gateway to the case plate, as shown in Figure 2-5.
Step 2. Make note of the unique password on the label on the bottom of the RV50X

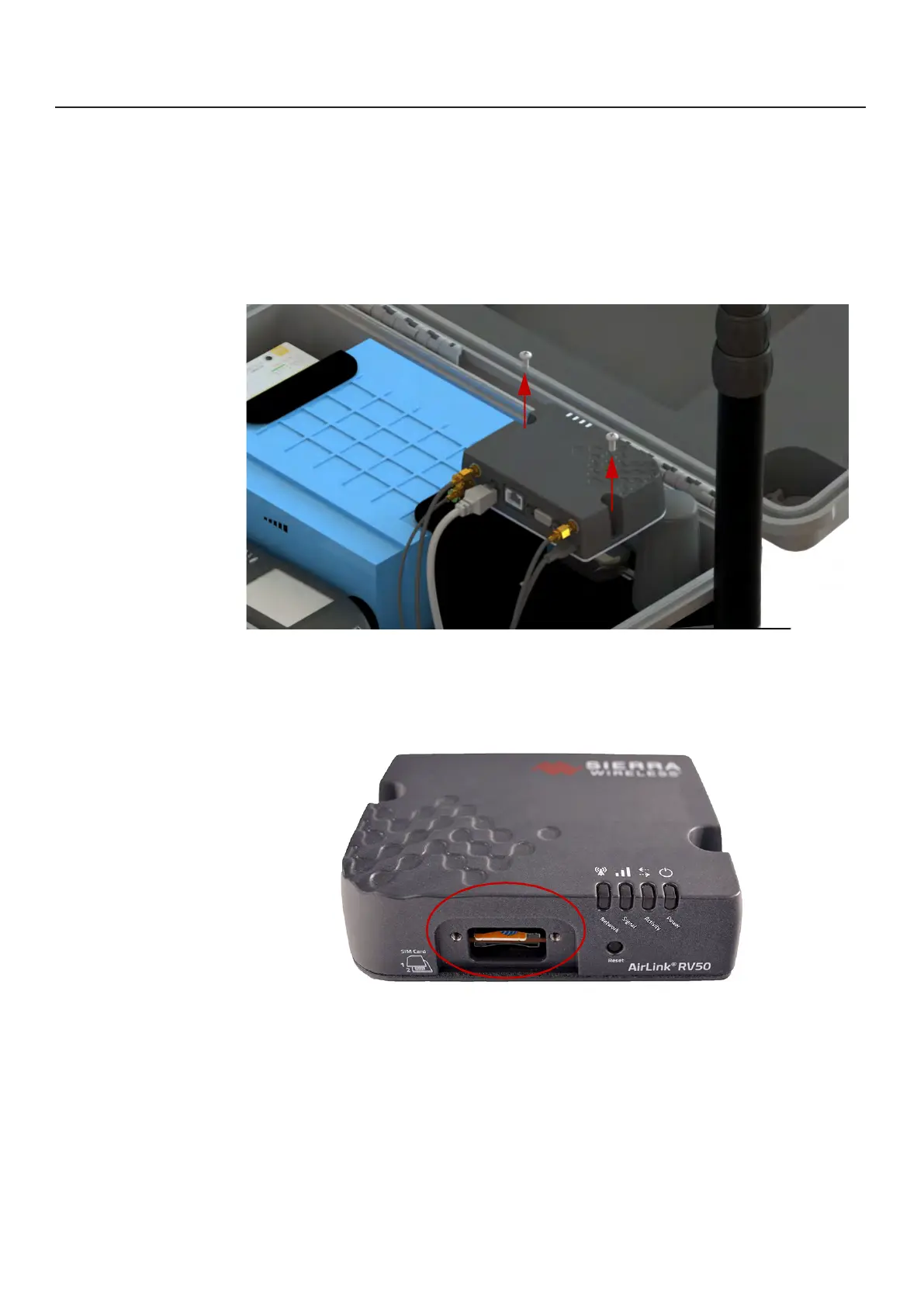

Figure 2-5 Removing the Gateway From the Case Plate
Step 3.
Using the #0 screwdriver, remove the 2 screws holding the front SIM card door,
shown in Figure 2-6.
Figure 2-6 RV50X Sim Card Door Removed
Step 4.
Insert the SIM card into to the top slot until it clicks.
Step 5. Replace the SIM card door and screws.
Step 6. Remount the RV50X in the case and hand-tighten the 2 case plate screws.
