4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1

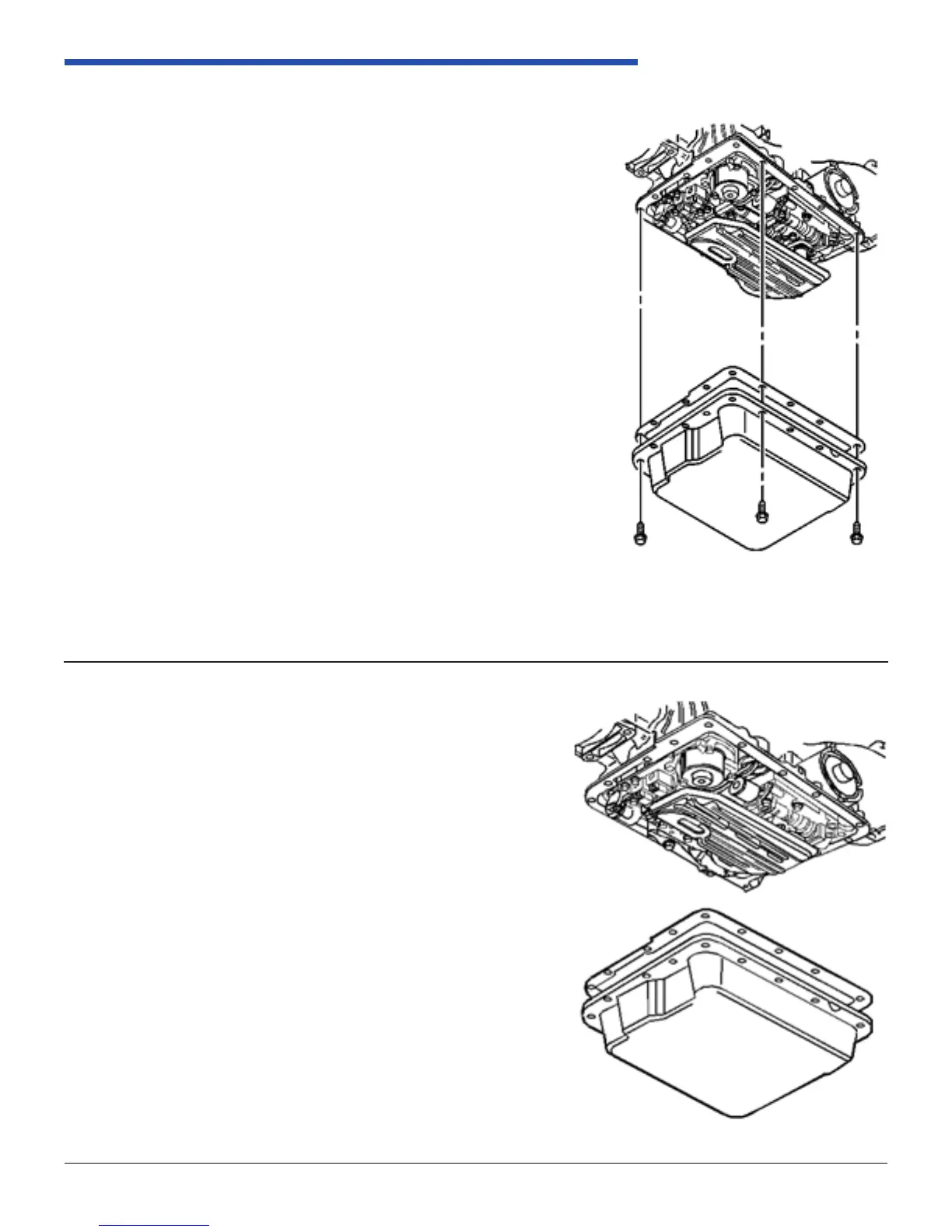

8. Remove the oil pan and gasket. Reference Figure 2.3.8-3.
Figure 2.3.8-2
5. Loosen the rear oil pan bolts approximately 4 turns.
6. Lightly tap the oil pan with a rubber mallet in order to loosen
the pan to allow the uid to drain. Reference Figure 2.3.8-1.
7. Remove the remaining oil pan bolts. Reference Figure 2.3.8-2.
Figure 2.3.8-3
