Powertrain Control Solutions

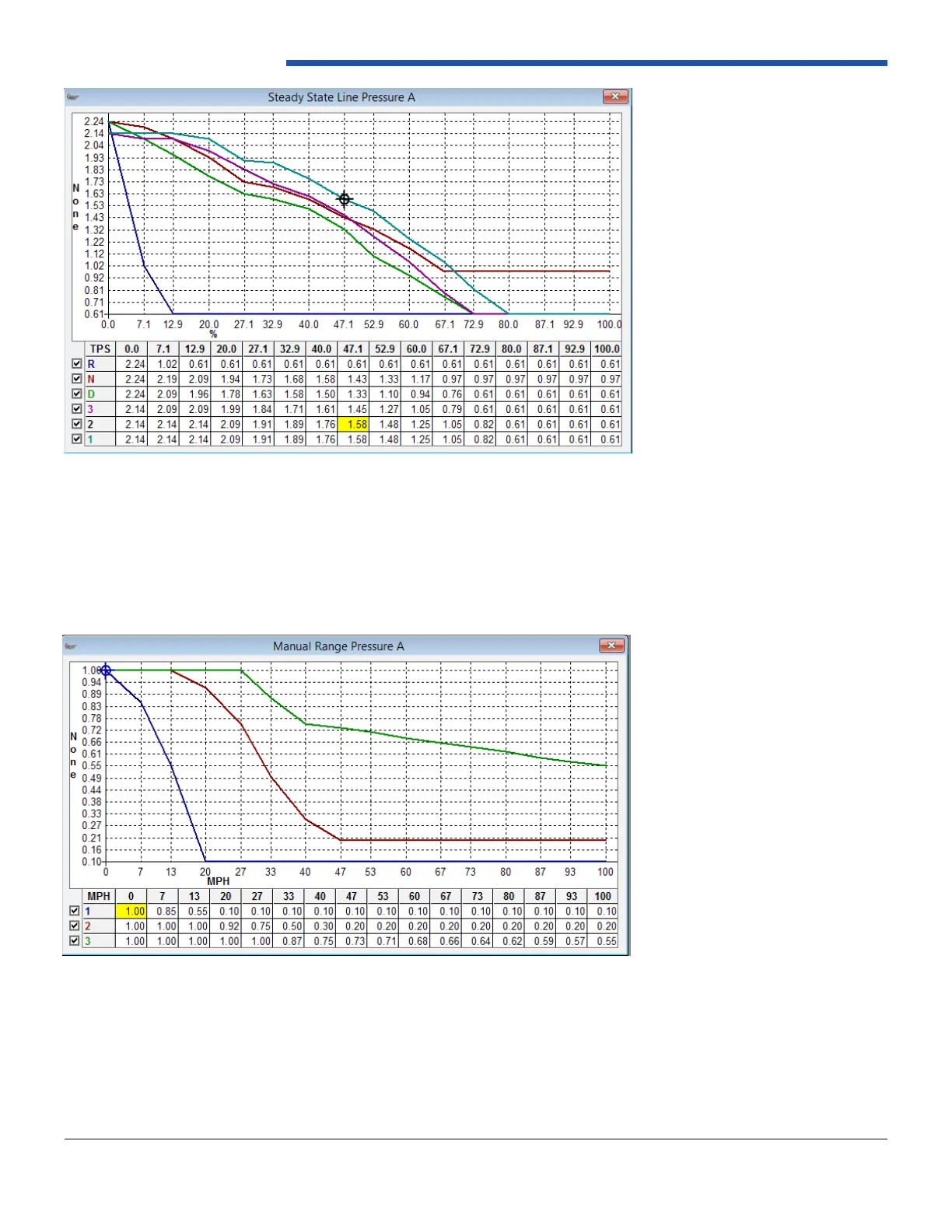

Figure 19: Steady State Line Pressure A
Figure 20: Manual Range Pressure A
6.3 Manual Range Pressure
The manual range pressure tables are used to increase the transmissions pressure when you shift the transmission down
in the D3,D2 and D1 Positions. Additional pressure is sometime desired to assist in applying and holding the clutches and
bands. Especially when using the transmission to assist in engine braking on a grade. Reference Figure 20.
