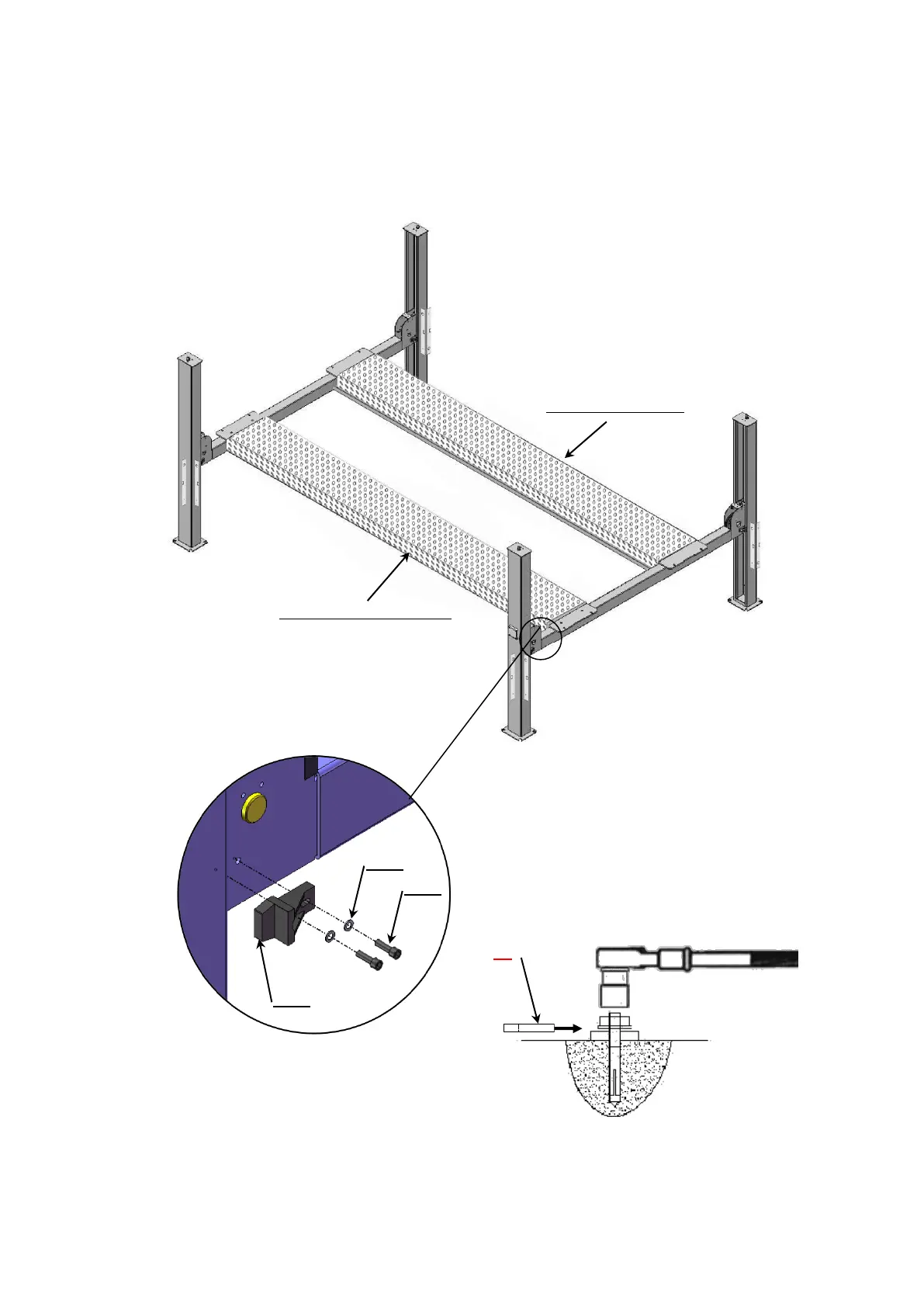

I. Assembly offside platform and slider block, check the plumbness of columns with level,
adjusting with the shims if not, and then tighten the anchor bolts (See Fig. 25 26).
Note: The tightening torque for the anchor bolt is 150N.m
Fig. 26
Using the Ratchet Spanner
With Socket to tighten the
bolts
Install the slider block on
the cross beam
C view
Fig. 25
Power-side platform
3-15
3-16
3-14
94
Offside platform
