III. STEPS OF INSTALLATION
A. Location of installation
Check and insure the installation location (concrete, layout, space size etc.) is
suitable for lift installation.
B. Check the parts before assembly

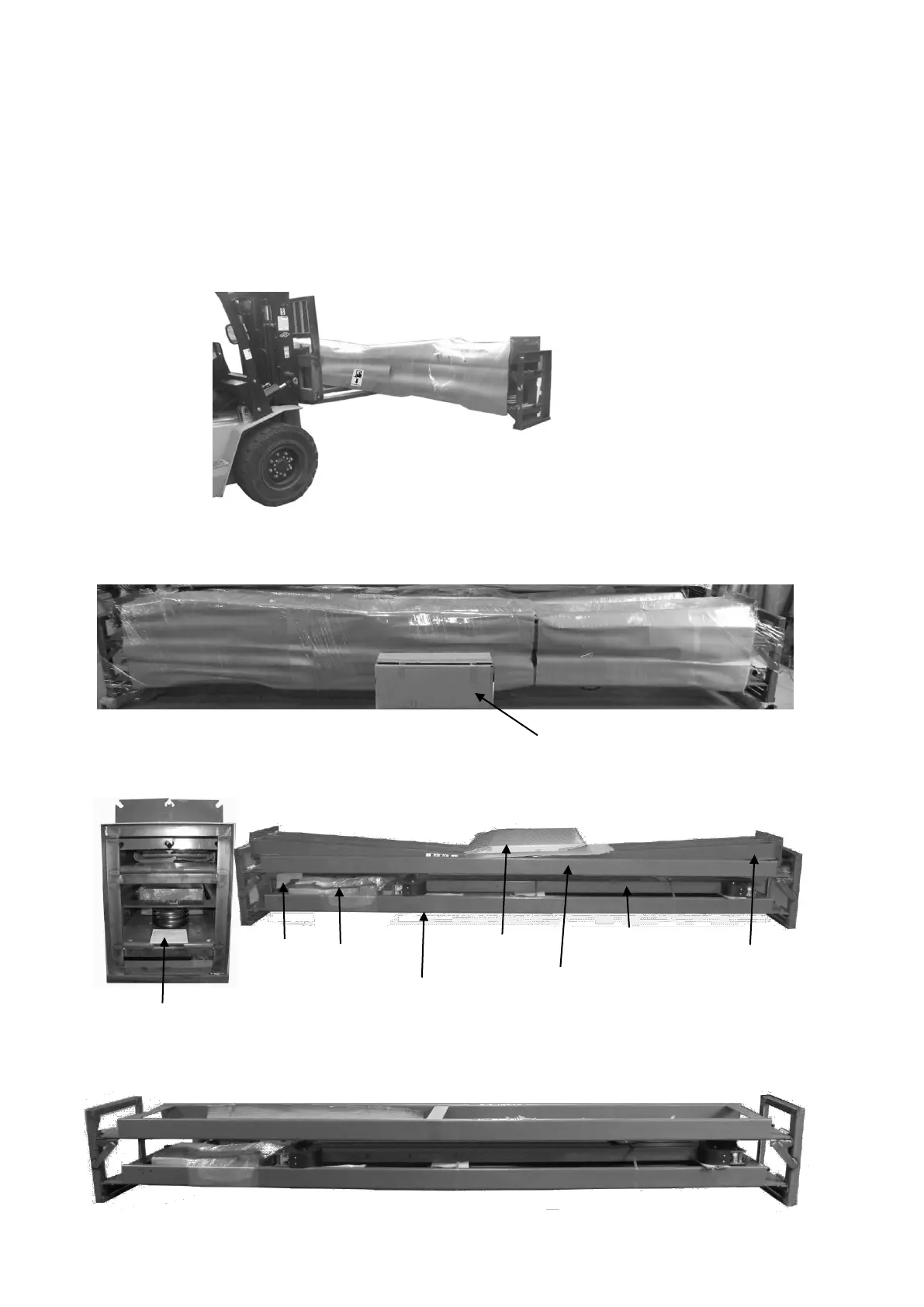

1. The equipment should be unload and transfer by forklift.
2. Packaged lift and hydraulic power unit (See Fig. 6).
3. Open the outer packing carefully (See Fig. 7).
Shipment Parts List
4. Take off the drive-thru ramps and columns (See Fig. 8).
Control Box
Power-side Platform
Drive-in Ramp
Offside Platform
Cross Beam
Column
Fig. 6
Fig. 7
Fig. 8
Parts Box
Fig.5
Power Unit
