Peak 412A - Circuit Diagram of Hydraulic System

46

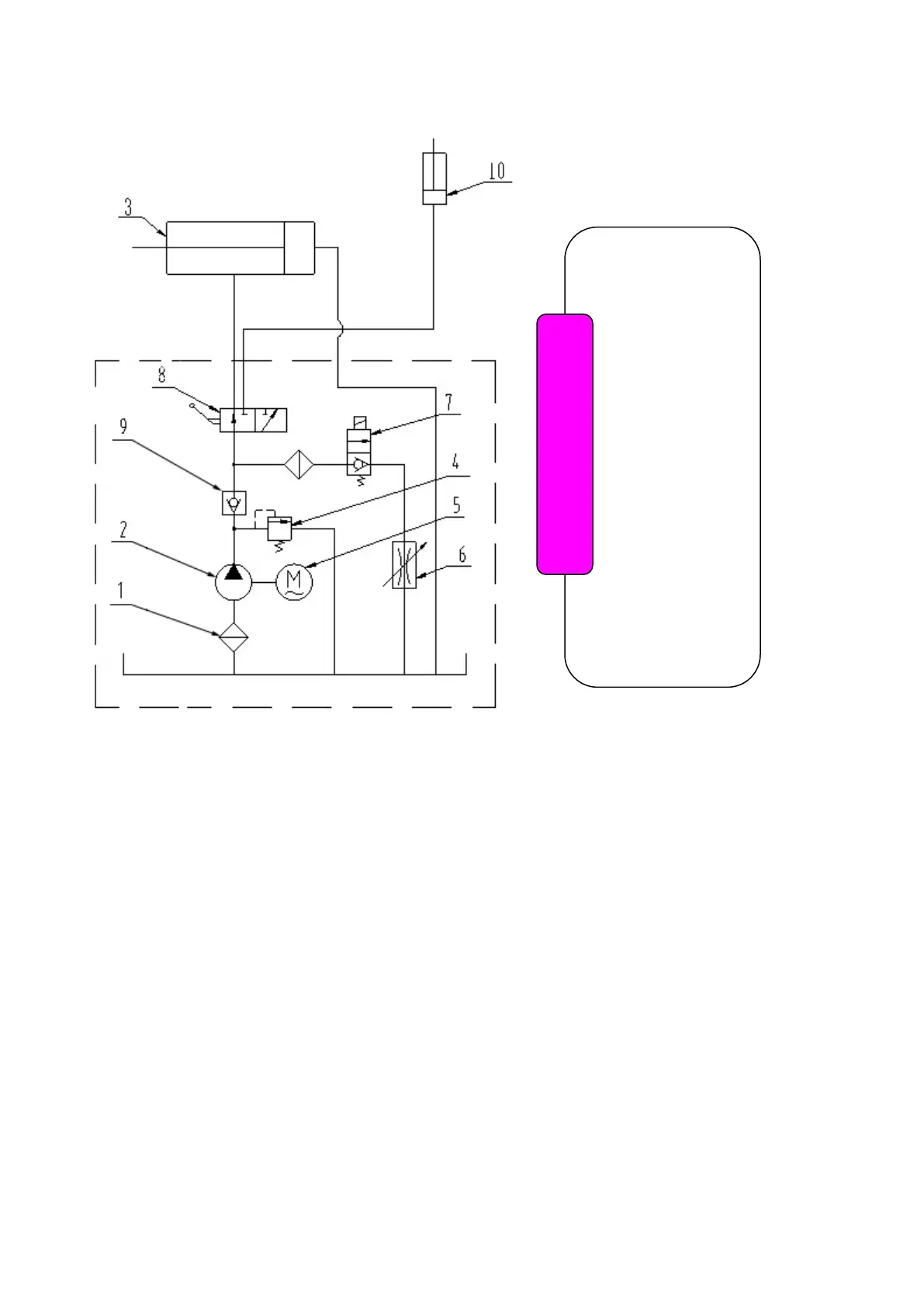

Circuit Diagram of Hydraulic System
Fig. 61
Remark: The T fitting No. 8 is specially for the optional power unit drive rolling Jack
model J6E only.
1. Filter
2. Gear pump
3. Cylinder
4. Relief Valve
5. Motor
6. Throttle Valve
7. Release Valve
8. T fitting
9. Check valve
10. Cylinder For J6
