Peak 412A - Connecting Wire with Control Box

22
4. Connecting wire with control box (See Fig. 48).
Note: 1)Specification of wire for limit switch and air solenoid valve are 2*1mm
2
. The
wire of power source for 3 phase is 5*2.5mm
2
, for single phase is 3*4mm
2
.
(The user should prepare by yourself)
2) Using white bobbin to wind around wire and air line.

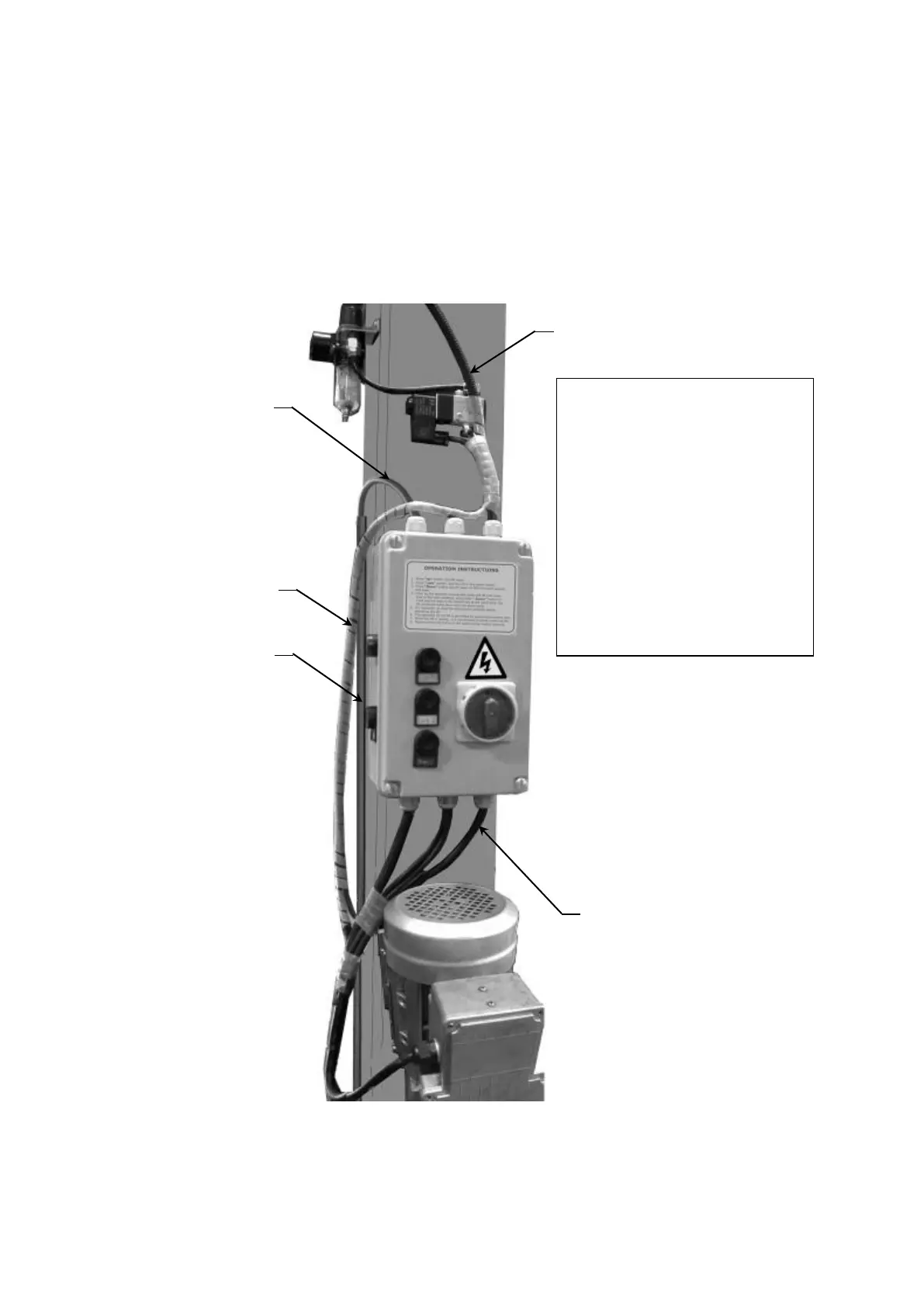

Fig. 48
① Connecting wire of Air
Solenoid Valve
② Connecting high limit
switch
③ Connecting lower limit
switch
④ Connecting wire of
power source
⑤ Connecting wire of limit
switch on cross beam
⑥Connecting wire of motor
66
67
62
61
45
①
②
③
④
⑤
⑥
