Page 16
Installation
System Environment

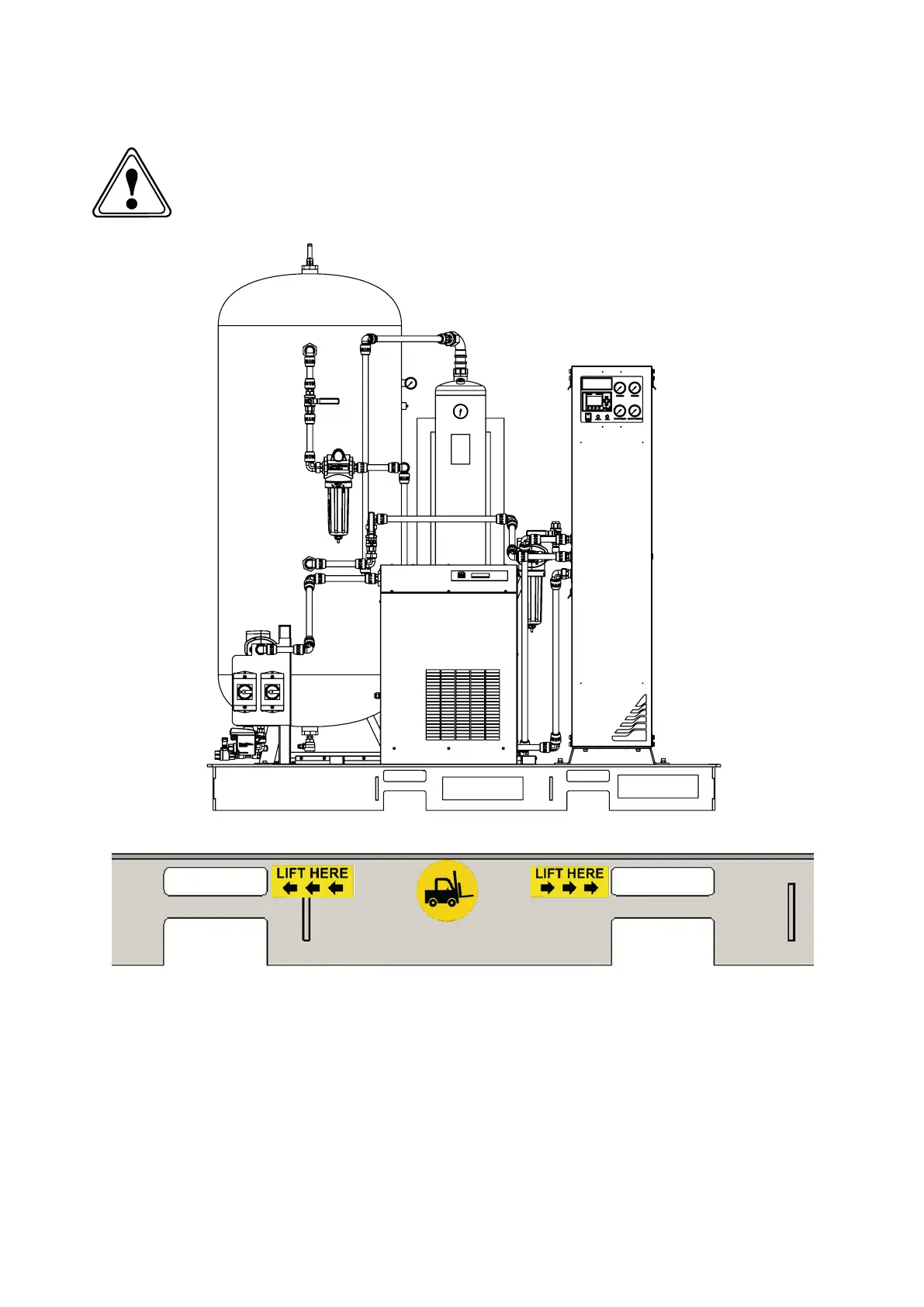

The i-Flow N2 Select skidded system is movable by forklift using the 2
upper slots on the long edge shown below.
Care must be taken when lifting due to the un-even weight distribution of the individual
component parts. The forklift slots are 800mm (long edge) apart, and as such will require
a forklift with the appropriate fork span and lifting capacity. The lower slots on the short
edge are only intended to adjust the fi nal position of the skid (i.e. shuffl ing the skid into
exact position once lowered from the forklift) and are not to be used for full lifting of
the skid. Ensure appropriate power supply and compressed air supply are available at
installation location.
Figure 2
Figure 1
