Page 20
Electrical Connection
Connect the system to an appropriate 230-volt single-phase supply. Ensure appropriate
circuit breakers (2 amp – C-Curve for both the i-Flow and refrigerant dryer/ filtration)
are used at the distribution panel to serve as a disconnect device. The disconnect device
must be clearly marked, easily accessible and as close to the system as possible. Refer
to the system serial plate for input specification and ensure your supply matches the
requirements.
Ensure that mains supply cable has an adequate rating (3 core, 1.5mm
2
, H05VV-F, 500v).
Failure to do so could cause damage to the system.
This unit is classified as SAFETY CLASS 1. THIS UNIT MUST BE
EARTHED. Before connecting the unit to the mains supply, please
check the information on the serial plate. The mains supply must be of
the stated AC voltage and frequency.
EARTH/GROUND (E):- Green & Yellow or Green
LIVE (L):- Brown or Black
Neutral (N):- Blue or White
Electrical requirements are 230VAC nominal +/- 10%, however, running continuously at
voltages out with this is not recommended. Extended periods at extremes can have a
detrimental eect on the operation and life of the generator.

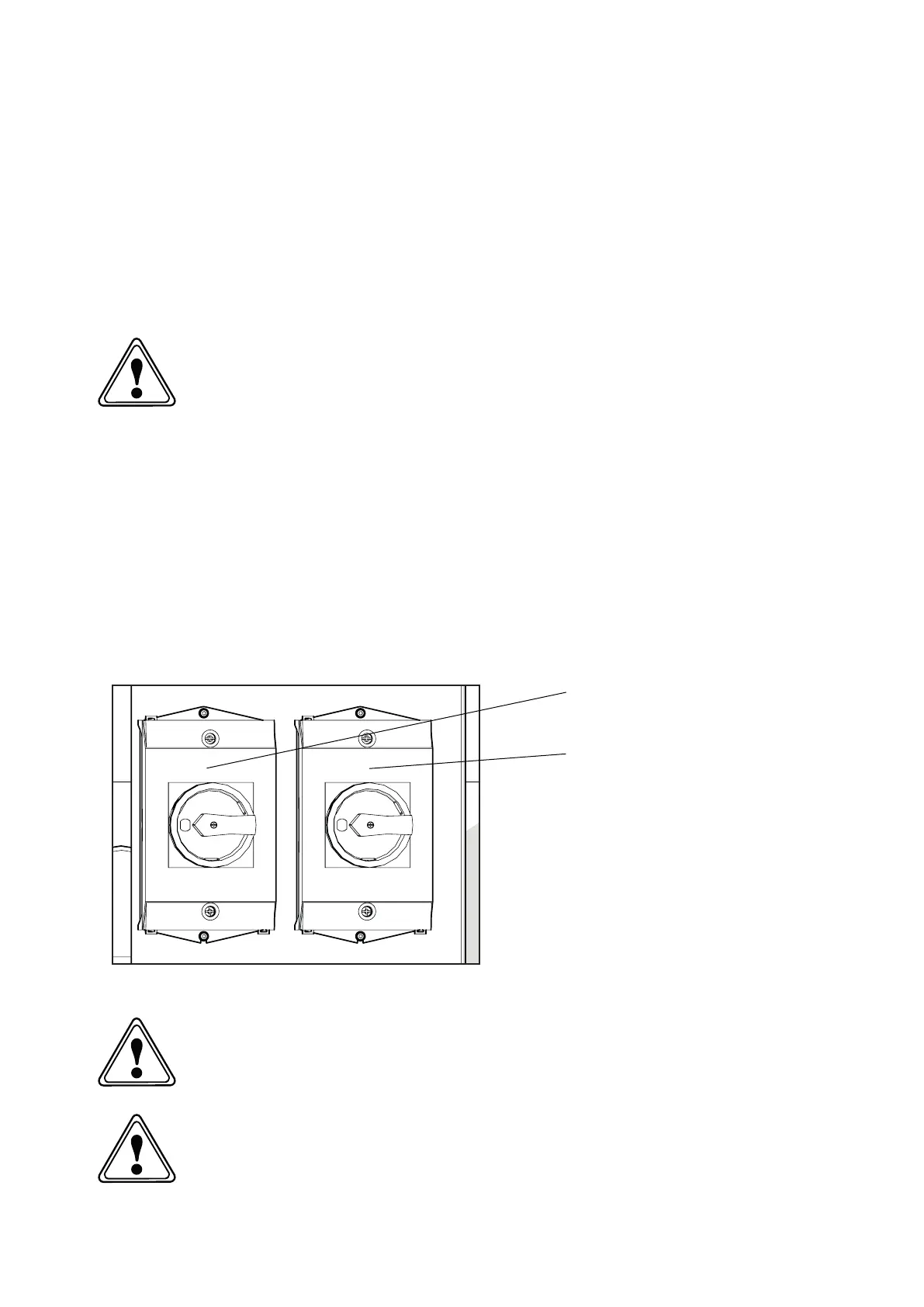

• 2 x Eaton Disconnects -
P1-25/I2H/SVB-SW/HI11 .
• 230V 50/60 Hz Mains Supply
Connections should only be carried out by a trained professional.
If the system is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
Dryer / Filtration
i-Flow
Figure 6
