Peak i-Flow N2 - Pneumatic Diagram

Page 25

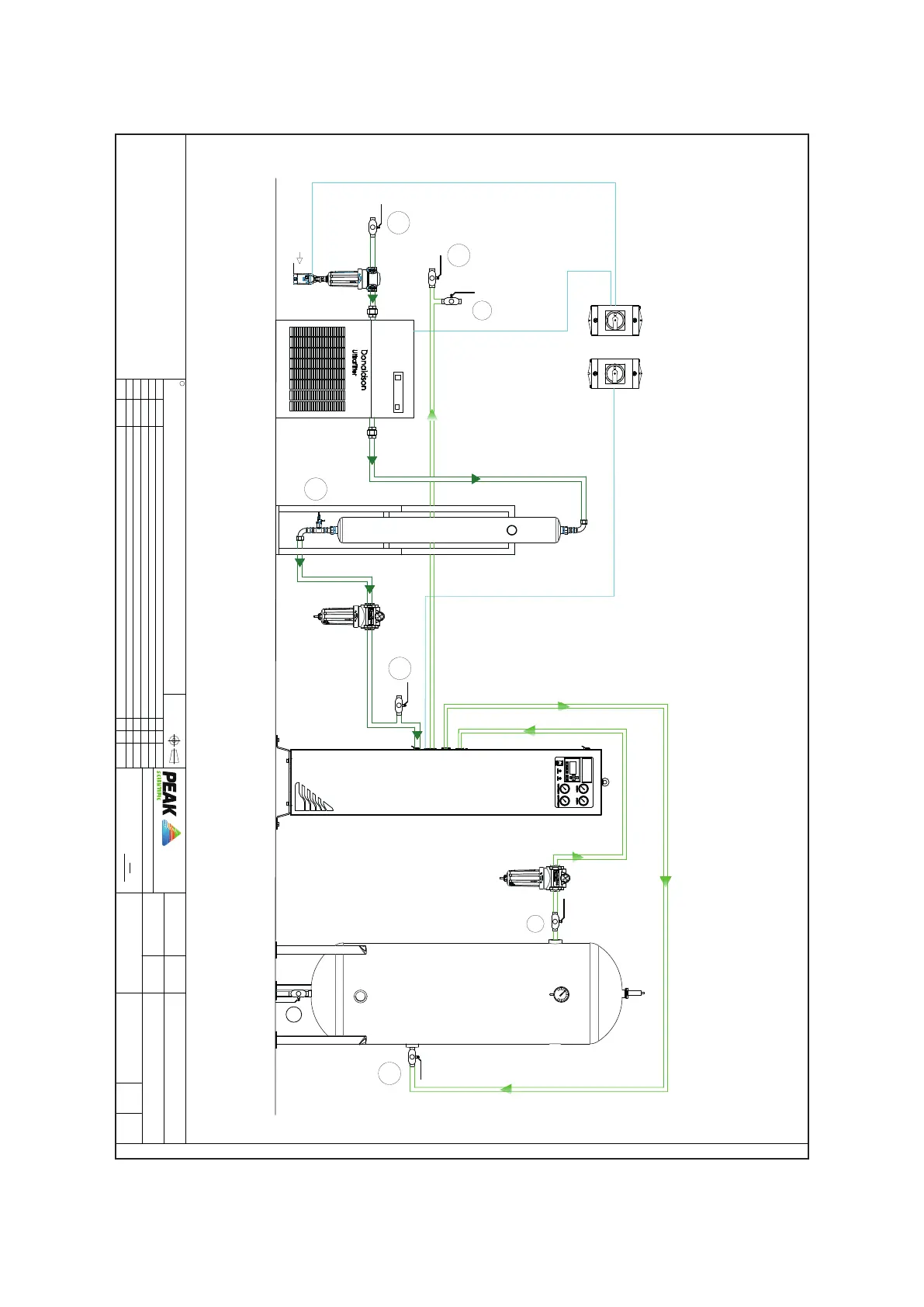

Pneumatic Diagram
Electric
Auto-Drain
Inlet
Filter
3
2
1
6
8
Nitrogen
Generator
i-Flow
Air
Dryer
N2 Process
Air In
Tank Supply
Tank Return
Nitrogen Output
4
5
7
Carbon Tower
Dryer
Inlet
Filter
Outlet
Filter
H G F E D C B A
Sheet No:
IF IN
DOUBT ASK
PEAK SCIENTIFIC INSTRUMENTS Ltd 2013
PEAK SCIENTIFIC OWN THE COPYRIGHT FOR THIS DRAWING. NO INFORMATION
CONTAINED IN THIS DRAWING MAY BE CONVEYED TO A THIRD PARTY WITHOUT
THE WRITTEN CONSENT OF THE COPYRIGHT HOLDER.
DESCRIPTION OF CHANGE:REV/DCL:ECN: SIG: APP: DATE:
UNLESS OTHERWISE STATED: DIMENSIONS IN mm. LINEAR TOLERENCES: ±0.25mm. ANGULAR TOLERENCES: ±0.1°.
ALL MATERIALS SHALL BE COMPLIANT WITH THE RoHS DIRECTIVE
FOUNTAIN CRESCENT
INCHINNAN BUSINESS PARK
RENFREWSHIRE, PA4-9RE
TEL: +44 (0)141 812 8100
FAX: +44(0)141 812 8200
www.peakscientific.com
APPROVED BY: DETAILED BY: DATE:
DATE: DRAWING TITLE:
PROJECT/LEAD ENGINEER: DRAWING No: DCL:
THIRD ANGLE
PROJECTION
C
REV:
- P&ID - IFLOW MAP SKID GLOGANCLYNESS
GLOGAN
16/11/20 16/11/20
6
A
SHEET 1 OF 1
Figure 7
