PCAN-Router DR – User Manual
7
2 Connectors

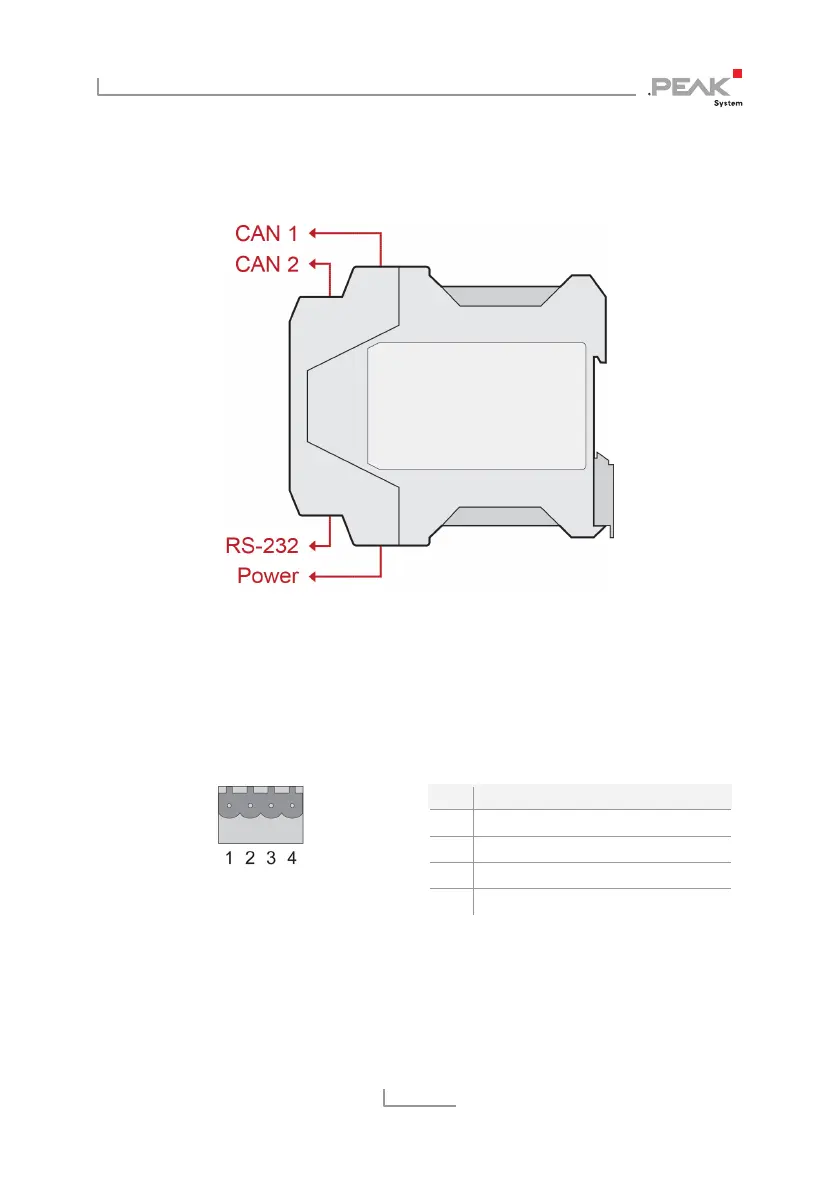

Position of the connectors
2.1 CAN 1/CAN 2
The CAN connectors are located on the upper side of the casing.
Pin assignment
connectors CAN 1 and CAN 2
Pin Assignment
1 CAN-High
2 CAN-Low
3 CAN-GND
4 CAN-Shield
