PCAN-Router DR – User Manual
8
2.2 RS-232
The RS-232 connector is located on the lower side of the casing.

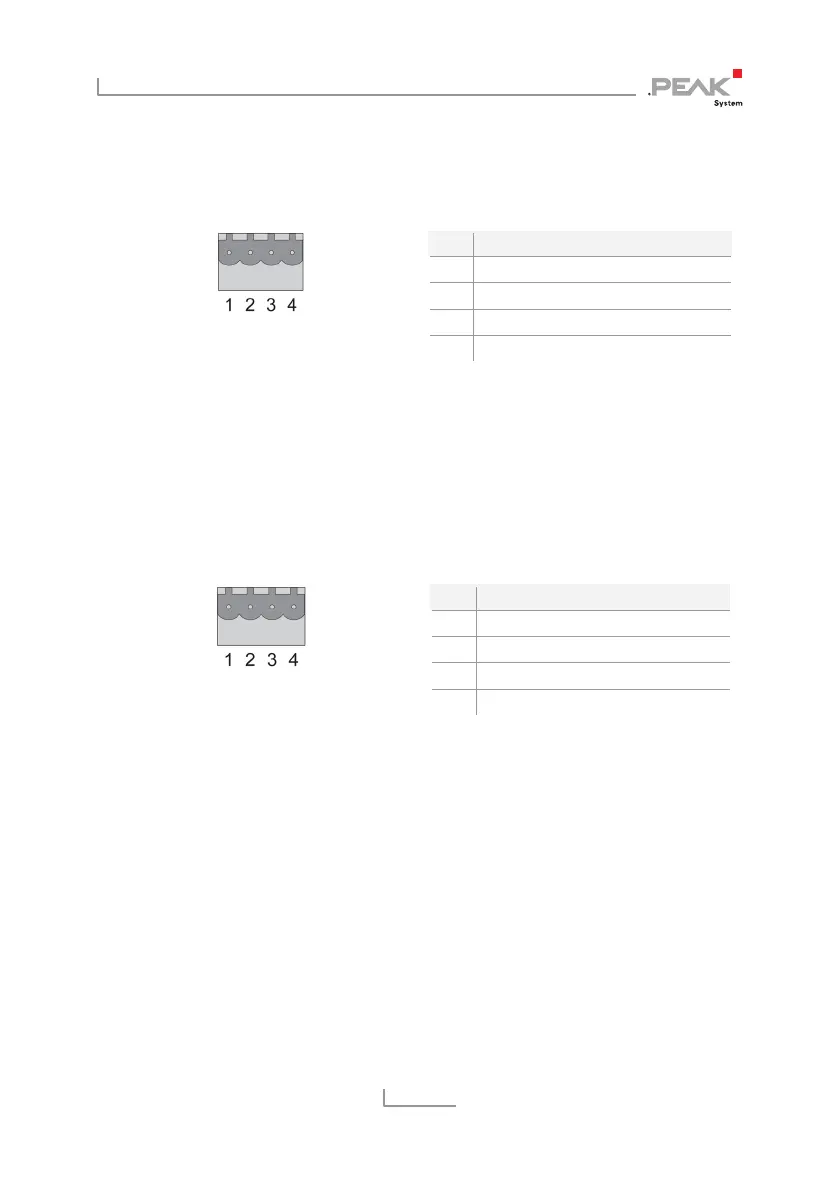

Pin assignment
RS-232 connector
Pin Assignment
1 GND
2 RxD
3 not connected
4 TxD
2.3 Power
The connection for the power supply is located on the lower side of
the casing.
Pin assignment
power connector
Pin Assignment
1 GND
2 not connected
3 Vbat (8 - 30 V)
4 Shield
