command

over

all

16

channels.

However,

not

all

units

respond

to

this

message;

if

necessary,

press

and

hold

the

Panic

button

to

send

individual

note

off

messages

for

all

notes

on

all

channels.

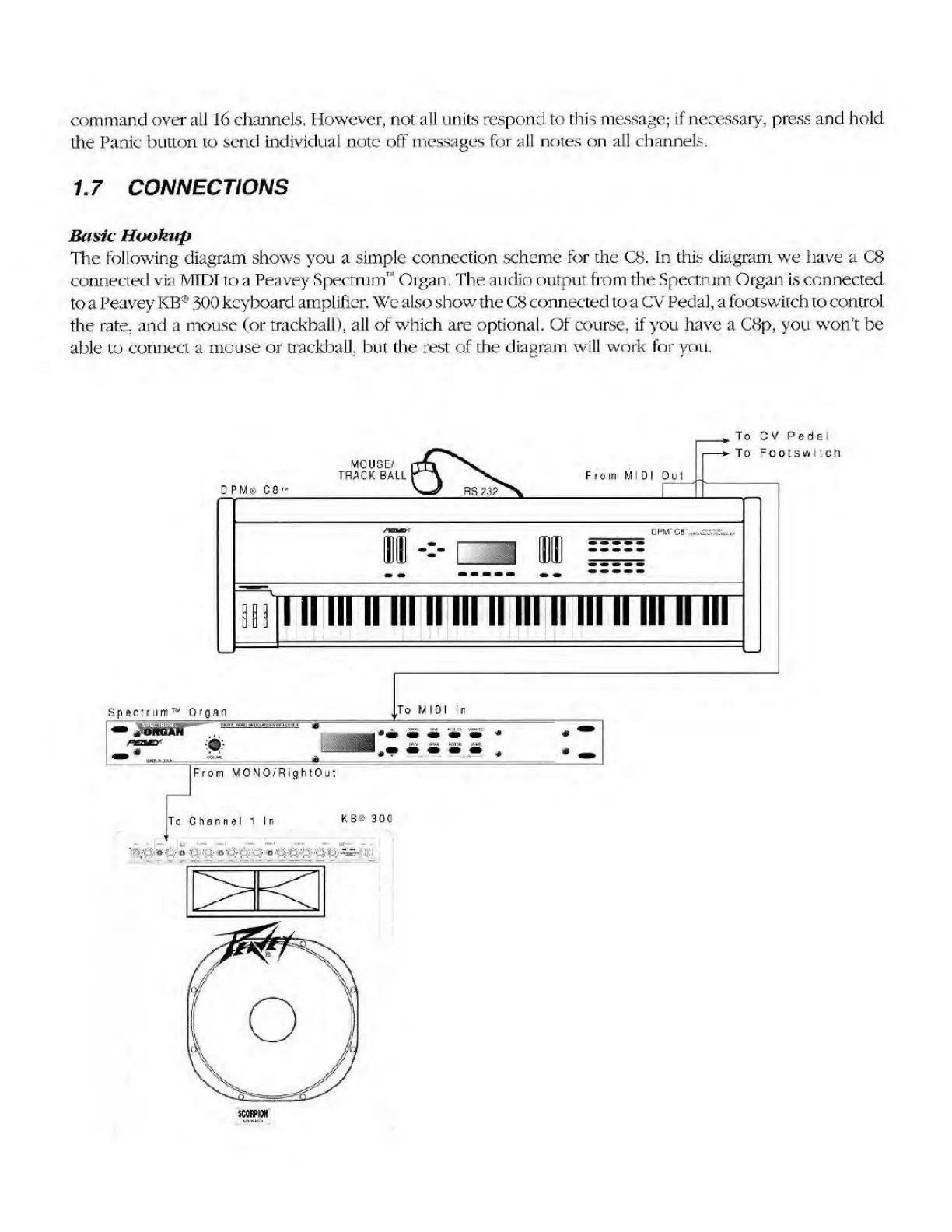

1.7

CONNECTIONS

Basic

Hookup

The

following

diagram

shows

you

a

simple

connection

scheme

for

the

C8.

In

this

diagram

we

have

a

C8

connected

via

MIDI

to

a

Peavey

Spectrum'"

Organ.

The

audio

output

from

the

Spectrum

Organ

is

connected

to

a

Peavey

KB^

300

keyboard

amplifier.

We

also

show

the

C8

connected

to

a

CV

Pedal,

a

footswitch

to

control

the

rate,

and

a

mouse

(or

trackball),

all

of

which

are

optional.

Of

course,

if

you

have

a

C8p,

you

won't

be

able

to

connect

a

mouse

or

trackball,

but

the

rest

of

the

diagram

will

work

for

you.
