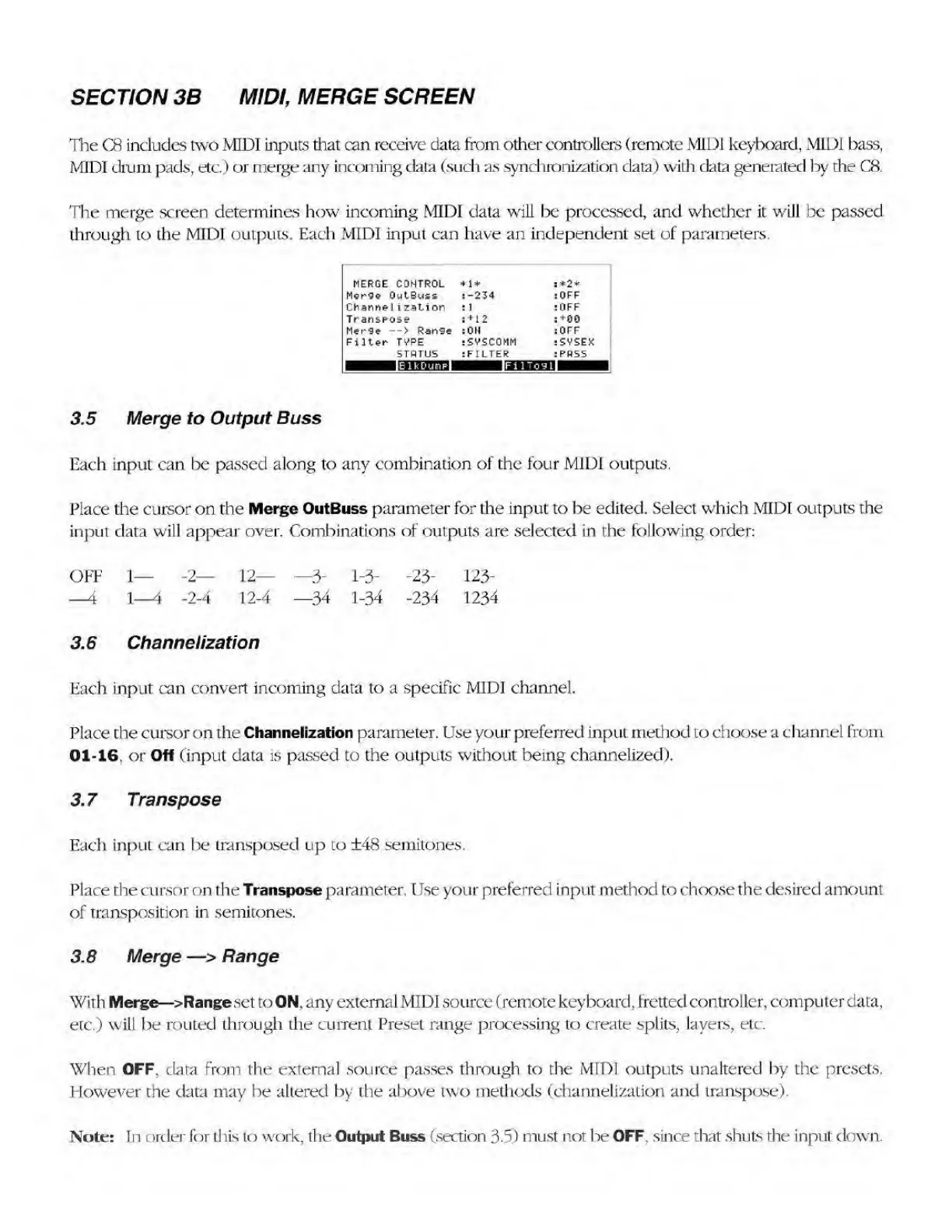

SECTION 3B MIDI , MERGE SCREEN
The C8 includes two MIDI inputs that can receive data from other controllers (remote MIDI keyboard, MIDI bass,
MIDI drum pads, etc.) or merge any incoming data (such as synchronization claia) with data generated by the CR
The merge screen determines how incoming MIDI data will lx: processed, and whether it will be passed
through to the MIDI outputs. Each MIDI input can have an independent set of parameters.
MERGE CONTROL *1* : *2*
MerSe OutBuss : -234 : OFF
Channe11zatlor
: 1
: OFF
Transpose : + 1 2 1*00
Merge --> Range sON : OFF
Filter T^PE sSVSCOMM :SVSEX
STATUS : FILTEP : PRSS
rillf.UI
3.5 Merge to Output Buss
Each input can be passed along to any combination of the four MIDI outputs.
Place the cursor on the Merge OutBuss parameter for the input to be edited. Select which MIDI outputs the
input data will appear over. Combinations of outputs are selected in the following order:
OFF 1— -2— 12— -3- 1-3- -23- 123-
—4 1—4 -2-4 12-4 —34 1-34 -234 1234
3.6 Channelization
Each input can convert incoming data to a specific MIDI channel.
Place the cursor on the Channelization parameter. Use your preferred input method to choose a channel from
01-16. or Off (input data is passed to the outputs without being channelized).
3.7 Transpose
Each input can be transposed up to ±48 semitones.
Place the cursor on the Transpose parameter. Use your preferred input method to choose the desired amount
of transposition in semitones.
3.8 Merge —> Range
With Merge—>Range set to ON, any external MIDI source (remote keyboard, fretted controller, computer data,
etc.) will be routed through the current Preset range processing to create splits, layers, etc.
When OFF, data from the external source passes through to the MIDI outputs unaltered by the presets.
However the data may be altered by the above two methods (channelization and transpose).
Note: In order for this to work, the Output Buss (section 3-5) must not lie OFF. since that shuts the input down.
