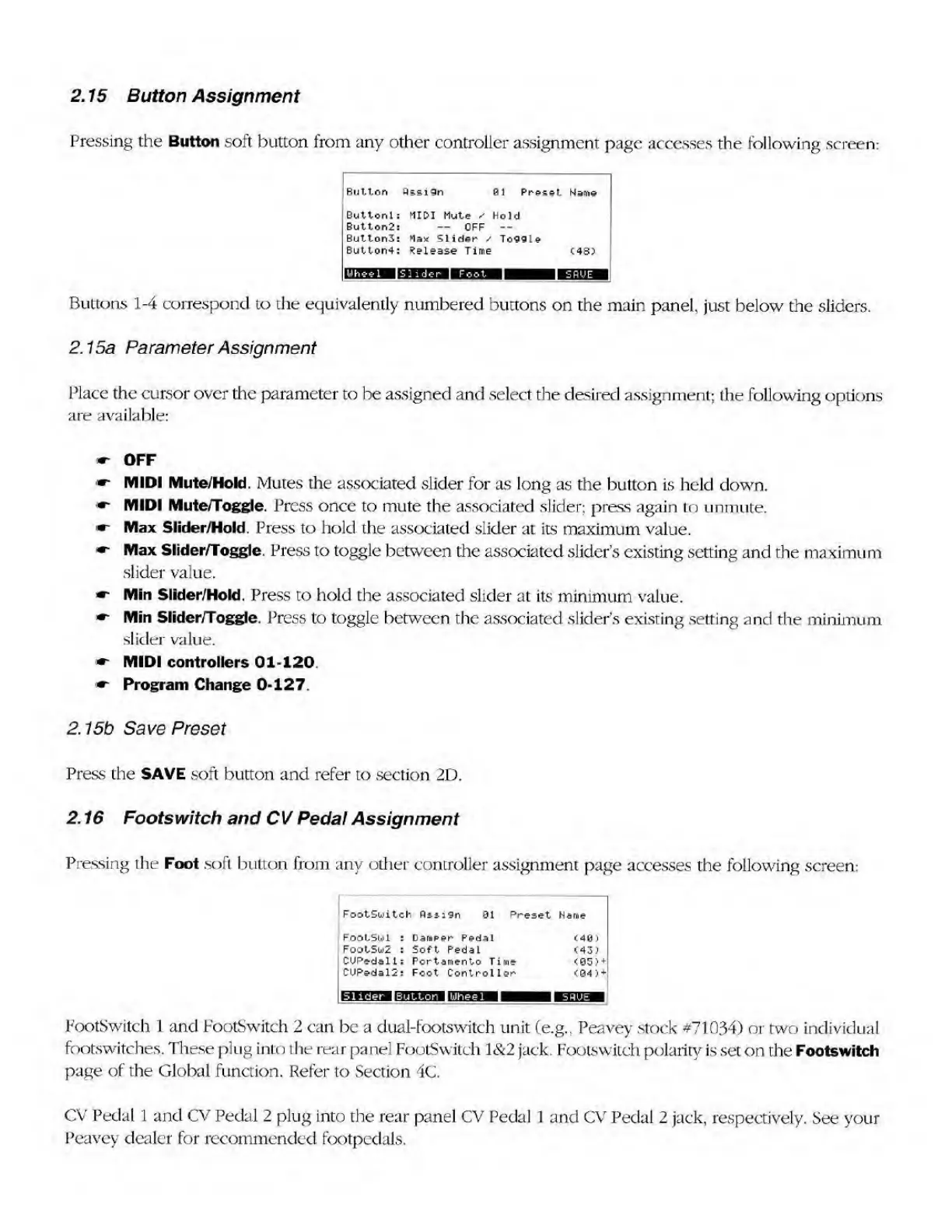

2.15 Button Assignment
Pressing the Button soft button from any other controller assignment page accesses the following screen:
Button assign
01 Preset Nam©
Buttonls MIDI Mute ✓ Hold
Button2: — OFF —
Button3: Max Slider / Toggle
Button4: Release Time (48)
Buttons 1-4 correspond to the equivalently numbered buttons on the main panel, just below the sliders.
2.15a Parameter Assignment
Place the cursor over the parameter to be assigned and select the desired assignment; the following options
are available:
*- OFF
*- MIDI Mute/Hold. Mutes the associated slider for as long as the button is held down.
*- MIDI Mute/Toggle. Press once to mute the associated slider; press again to unmute.
*• Max Slider/Hold. Press to hold the associated slider at its maximum value.
« ■ Max Slider/Toggle. Press to toggle between the associated slider's existing setting and the maximum
slider value.
Min Slider/Hold. Press to hold the associated slider at its minimum value.
* ■ Min Slider/Toggle. Press to toggle between the associated slider's existing setting and the minimum
slider value.
MIDI controllers 01-120.
*- Program Change 0-127.
2.15b Save Preset
Press the SAVE soft button and refer to section 2D.
2.16 Footswitch and CV Pedal Assignment
Pressing the Foot soft button from any other controller assignment page accesses the following screen:
FootSwitch flssnSn 01 Preset Name
FootSuil : Damper Pedal
FooLSw2 : Soft Pedal
CUPedall: Portamento Time
CUPedal2: Foot Controller
<40)
<43)
<05 > +
< 04) *
FootSwitch 1 and FootSwitch 2 can be a dual-footswitch unit (e.g., Peavey stock #71034) or two individual
footswitches. These plug into the rear panel FootSwitdh 1&2 jack. Footswitch polarity is set on the Footswitch
page of the Global function. Refer to Section 4C.
CV Pedal 1 and CV Pedal 2 plug into the rear panel CV Pedal 1 and CV Pedal 2 jack, respectively. See your
Peavey dealer for recommended footpedals.
