PEERLESS ST 632P User Manual

6 of 16
ISSUED: 05-11-05 SHEET #: 201-9476-5 05-10-06
K
A
C
J
C
E
G
C

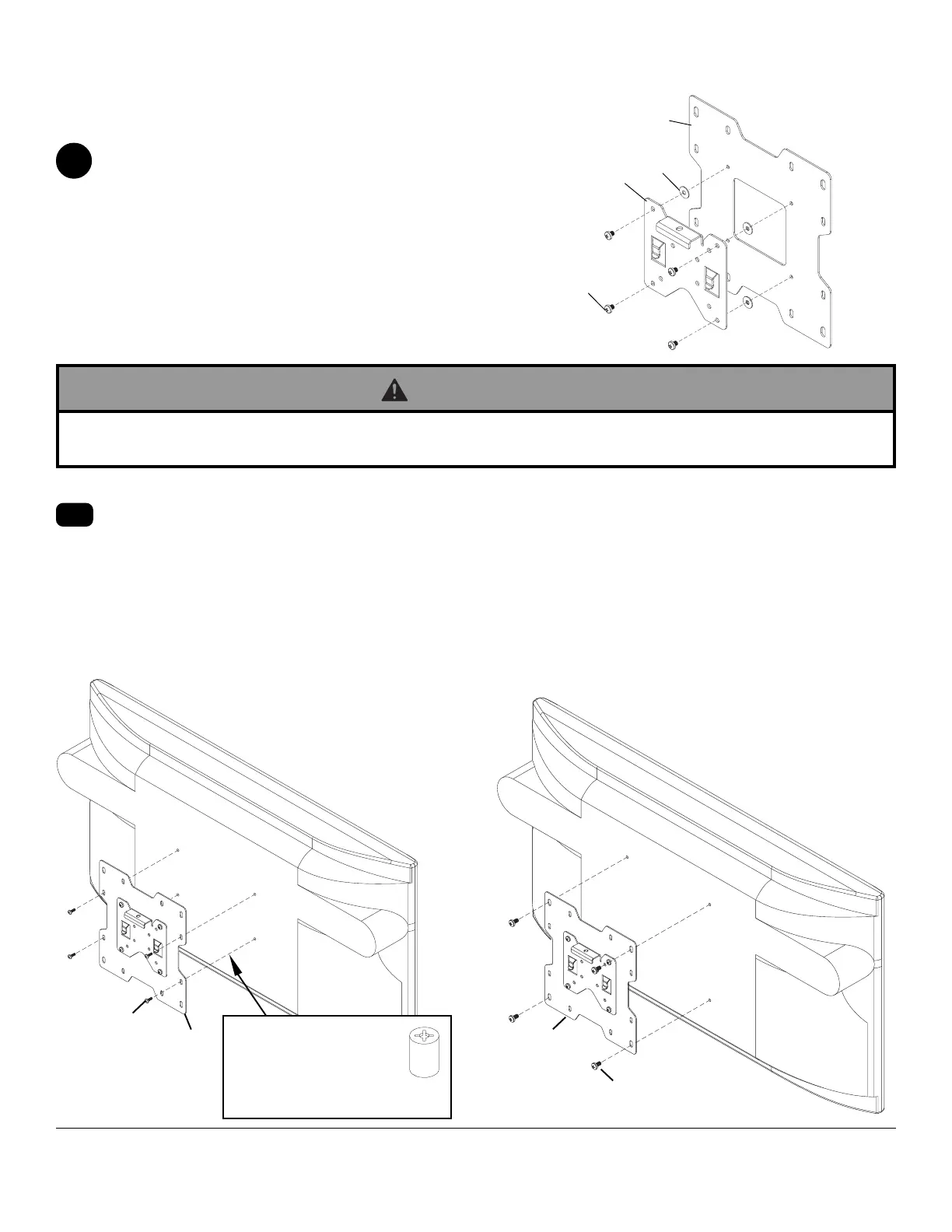

Attaching Adapter Plate to Screen with VESA 200 or 200 x 200 Mounting Pattern
Attach hook bracket (A) to adapter plate (C) using
four M5 x 6 mm screws (J) and #10 washers (K) as
shown.
2
FOR VESA 200 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach adapter
plate (C) to back of screen using four M4 x 10 mm
screws (E) as shown below.
*Note: If screw (E) gets less than three threads of
engagement, attach adapter plate (C) to back of
screen using four M4 x 20 mm screws (F) and four
spacers (L) as indicated below.
Skip to step 3 on page 8.
FOR VESA 200 x 200 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach adapter
plate (C) to back of screen using four M6 x 12 mm
screws (G) as shown below.
*Note: If screw (G) gets less than three threads of
engagement, attach adapter plate (C) to back of
screen using four M6 x 20 mm screws (H). If screw
(H) still gets less than three threads of engagement,
use four M6 x 30 mm screws (I).
Skip to step 3 on page 8.
M
*For screens with a hole
pattern in a pocket,
spacers (L) go between
adapter plate (C) and
screen.
L
Note: For VESA 75 mm and 100 mm patterns, see
following page.
2-1
• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to screen or product may fail.
WARNING
