PEERLESS ST 632P User Manual

7 of 16
ISSUED: 05-11-05 SHEET #: 201-9476-5 05-10-06

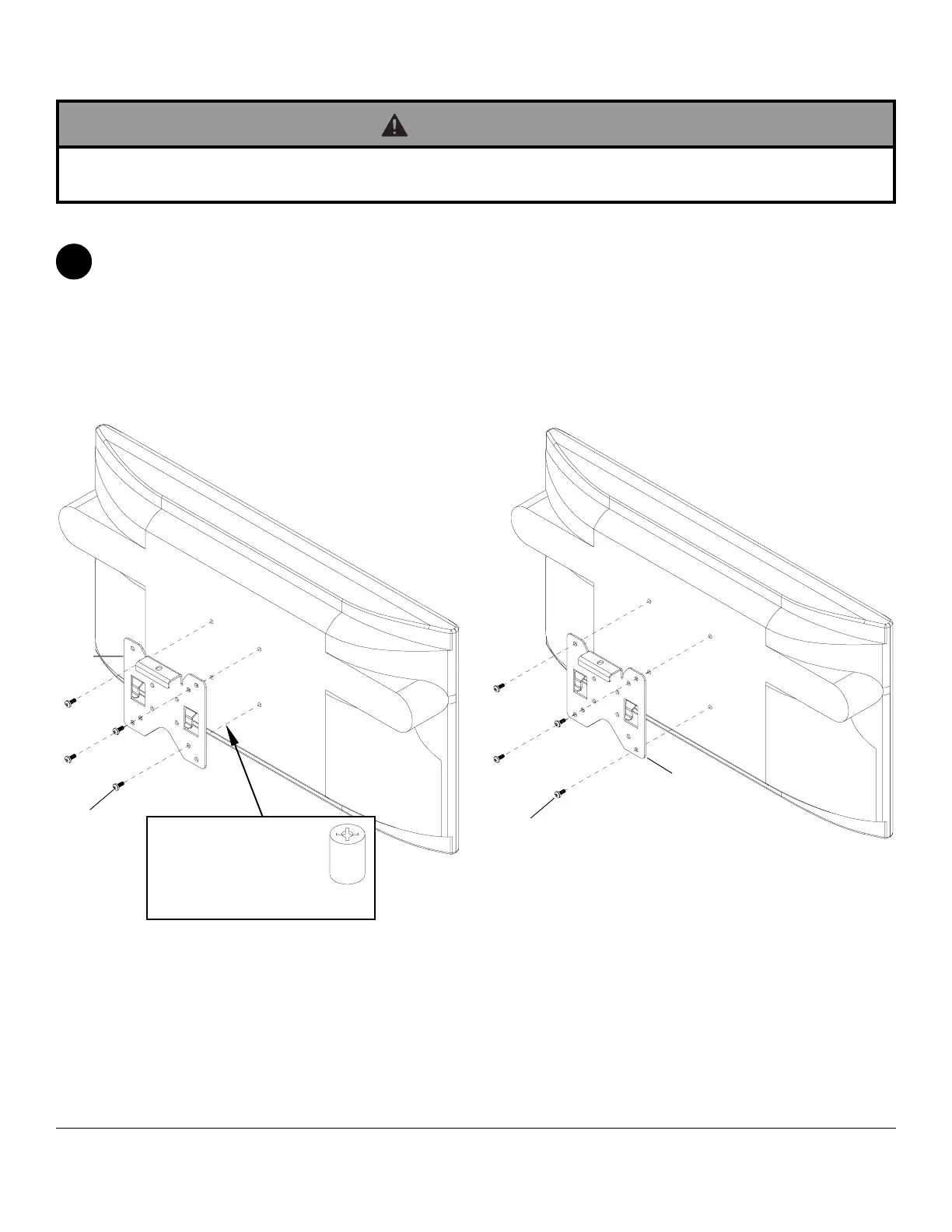

Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern
L
*For screens with a hole
pattern in a pocket,
spacers (L) go between
hook bracket (A) and
screen.
FOR VESA
®
75 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook
bracket (A) to back of screen using four M4 x 10 mm
screws (E) as shown below.
*Note: If hole pattern is in a pocket, attach hook
bracket (A) to back of screen using four M4 x 20 mm
screws (F) and four retaining spacers (L) as indicated
below.
E
FOR VESA 100 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook
bracket (A) to back of screen using four M4 x 10 mm
screws (E) as shown below.
E
2
A
A
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
