10

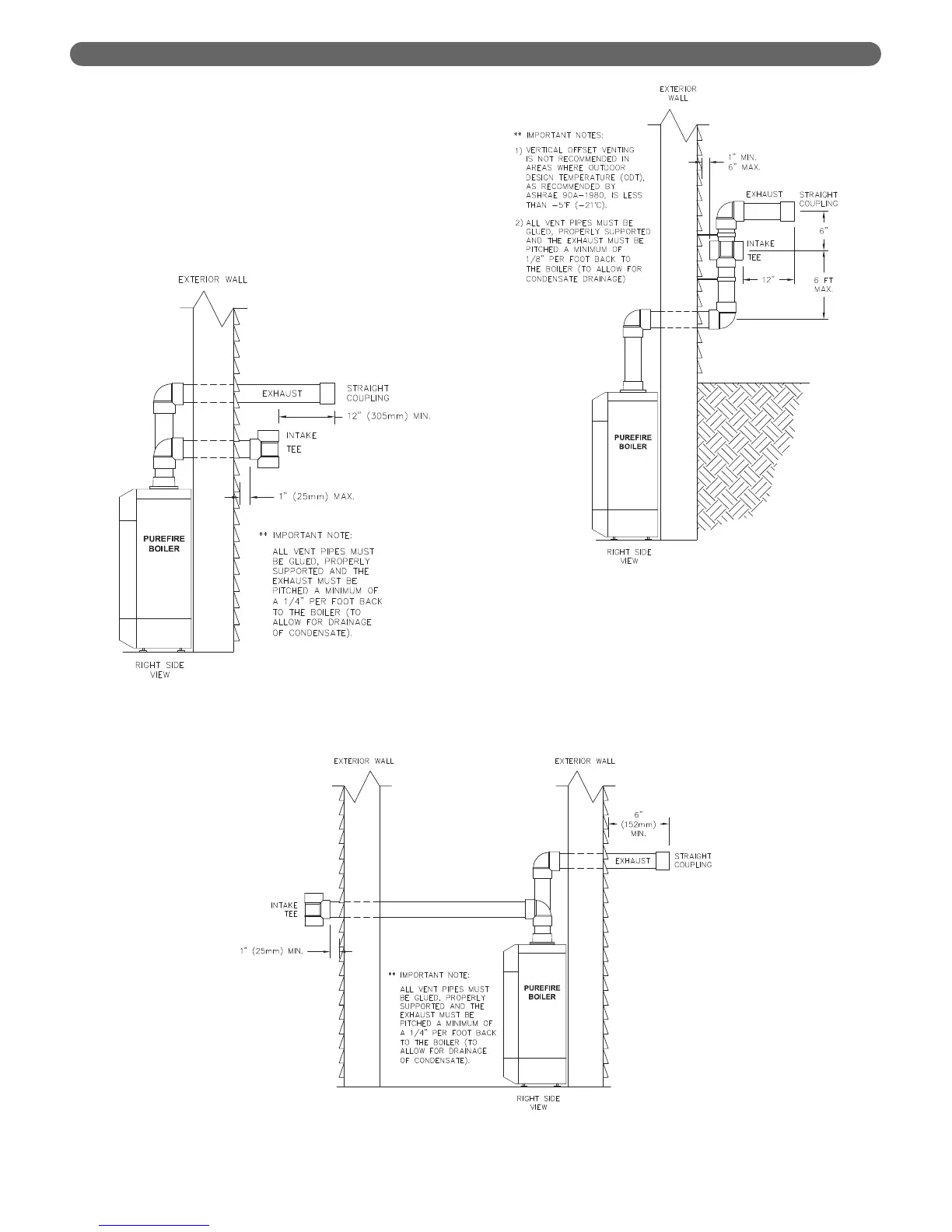

Figure 3.5: Exhaust and Air Inlet on Opposite Walls
b. Figures 3.3 through 3.6 show approved sidewall
venting configurations using the standard fittings
supplied.
c. Figure 3.4 is only approved for locations in which
the outdoor temperature is above -5°F (-21°C) in
accordance with ASHRAE 90A-1980
recommendations.
d. Figure 3.7 shows a sidewall vent configuration
using an optional 4" concentric termination kit
(54499).
VENTING & AIR INLET PIPING
Figure 3.3: Standard Exhaust & Air Inlet Pipe
Terminations
Figure 3.4: Offset Exhaust and Air Inlet
Terminations
