BOILER DIMENSIONS & RATINGS
12. BOILER DIMENSIONS & RATINGS
Table 12.1: Boiler Dimensions

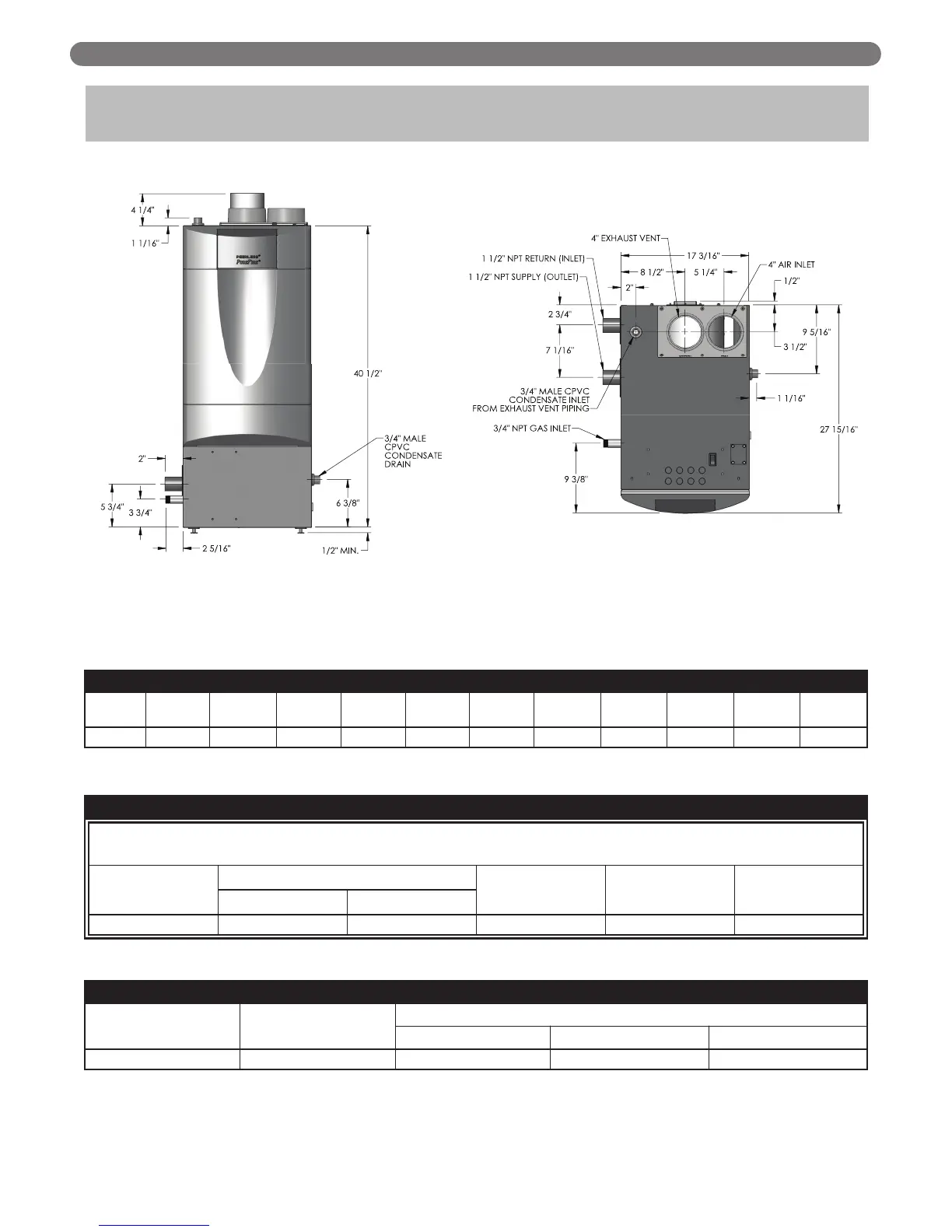

Figure 12.1: Dimensional Drawing – PFC-460
SERIES PEERLESS
®
PUREFIRE
®
DIMENSIONS (INCHES)
Boiler
Model
“A” “B” “C” “D” “E” “F” “G” “H” “J ” “K” “L”
PFC-460 27-15/16" 17-3/16" 40-1/2" 1-1/2" 4" 3/4" 2-3/4" 5-1/4" 3-1/2" 5-3/4" 7-1/16"
Table 12.3: Combustion Air Fan Speeds
SERIES PEERLESS
®
PUREFIRE
®
COMBUSTION AIR FAN SPEEDS
Boiler
Model
Input
Rate
Fan Speed
Low Power Ignition High Power
PFC-460 460 MBH 1530 4110 6060
Table 12.2: Boiler Ratings
Series Peerless
®
PUREFIRE
®
Boiler
Model
Input (MBH)
Gross Output
(MBH)
Net Rating
(MBH)
Thermal Efficiency
(%)
Min. Max.
PFC-460 92 460 438 381 95.2
SERIES PEERLESS
®
PUREFIRE
®
BOILER RATINGS
