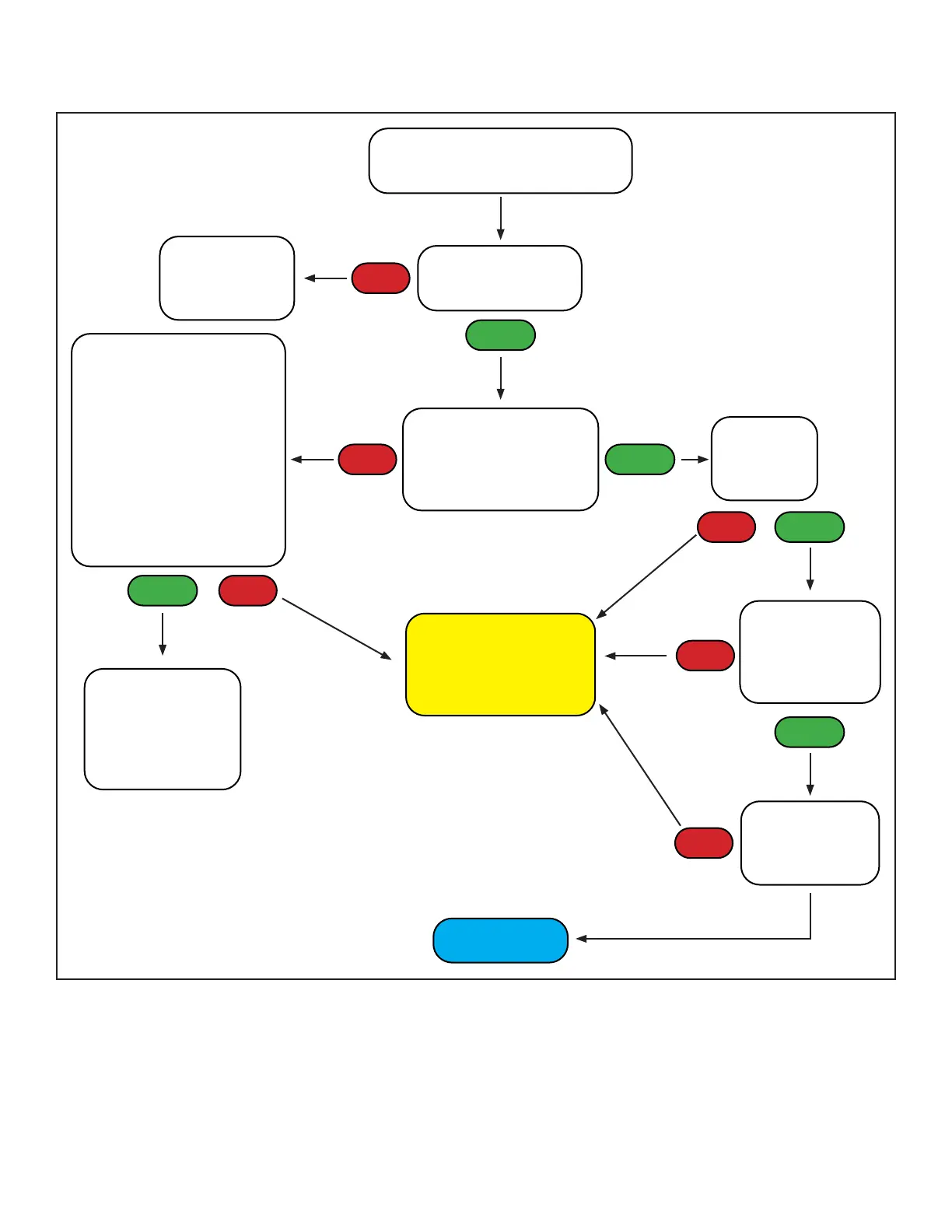

LAZY OR SOOTY FLAMES
CHECK TO MAKE SURE THE
FIREBOX AREA, BAFFLES, EXHAUST
PIPE AND FIREPOT IS CLEAN.
CHANGE TO
APPROVED FUEL
AND RESTART
APPLIANCE.
SYSTEM IS
REPAIRED
IS APPROVED
FUEL BEING USED IN
THE APPLIANCE?
MAKE THE REPAIR BY
CLEANING, REPLACING
THE COMPONENT OR
REPLACING THE
CONTROL BOARD
IS THE FEED MOTOR
RUNNING IN A CYCLE
MODE?
1 TO 4 SEC “ON TIME”
EVERY 7 SEC
IS THE
EXHAUST
BLOWER
RUNNING?
WILL THE
HEAT OUTPUT
CONTROL LOWER
THE FLAME
HEIGHT?
WILL THE
TRIM CONTROL
ADJUST THE
FLAMES?
IS THE FUSE IN
THE CONTROL BOARD
GOOD? UNPLUG THE
APPLIANCE AND
REMOVE FUSE FROM
CONTROL PANEL TO
CHECK IF IT IS GOOD.
TOUCH MULTIMETER
LEADS TO BOTH ENDS
OF THE FUSE IN “Ω”
MODE. GOOD FUSE WILL
SHOW LESS THAN 1 Ω.
MAKE SURE THE
CORRECT
CONTROL BOARD
IS INSTALLED.
REFER TO SERVICE
PARTS LIST
YES
NO
NO YES
NOYES
YES
NO
NO
YES
NO
Cleaning locations next page
