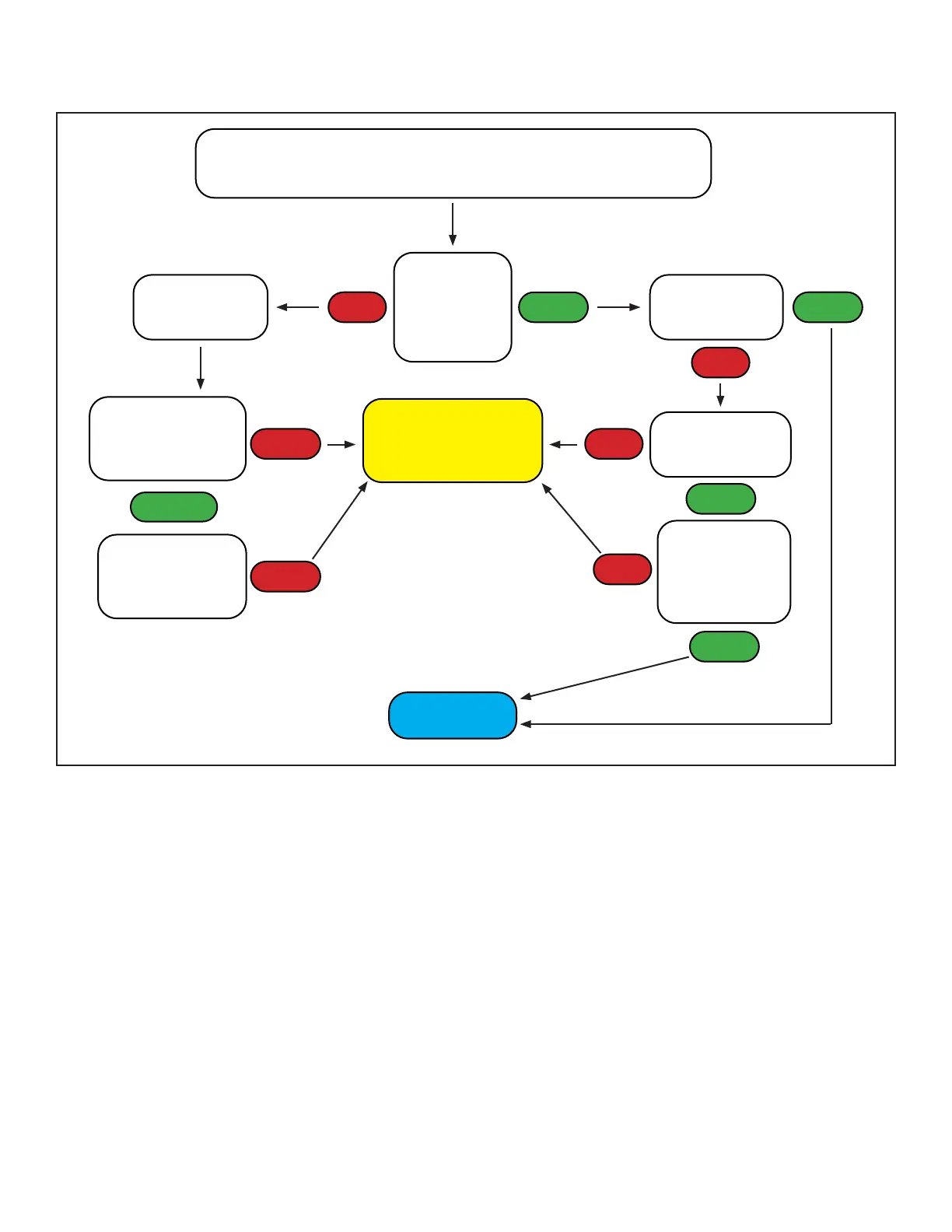

CODE #4: MISSED IGNITION
UNPLUG APPLIANCE, CLEAN FIREPOT AND MAKE SURE FIREPOT IS
INSTALLED CORRECTLY, CLEAN FIREBOX AREA, CLOSE FIREBOX DOOR,
FILL HOPPER, PLUG APPLIANCE BACK IN AND TURN APPLIANCE ON.
AFTER A FEW
MINUTES, DID A
FIRE START?
REMOVE
FEED SYSTEM
AND CHECK FOR
OBSTRUCTIONS
SYSTEM IS
REPAIRED
IS THE
AUGER
FEEDING
PELLETS INTO
THE FIREPOT?
MAKE SURE
THE HOPPER
LID IS CLOSED
IS THE
IGNITER
GETTING HOT?
MAKE THE REPAIR
BY EITHER CLEANING
OR REPLACING THE
COMPONENT.
CHECK THE
VACUUM SWITCH
CONNECTIONS AND
VACUUM HOSE
IS THE
IGNITER IN
THE PROPER
POSITION IN
THE FIREPOT?
YES
NO YES
NO
BAD
NO
YES
NO
YES
GOOD
BAD
Test locations & readings on next page.
To Next Page
