COMPONENT LOCATIONS

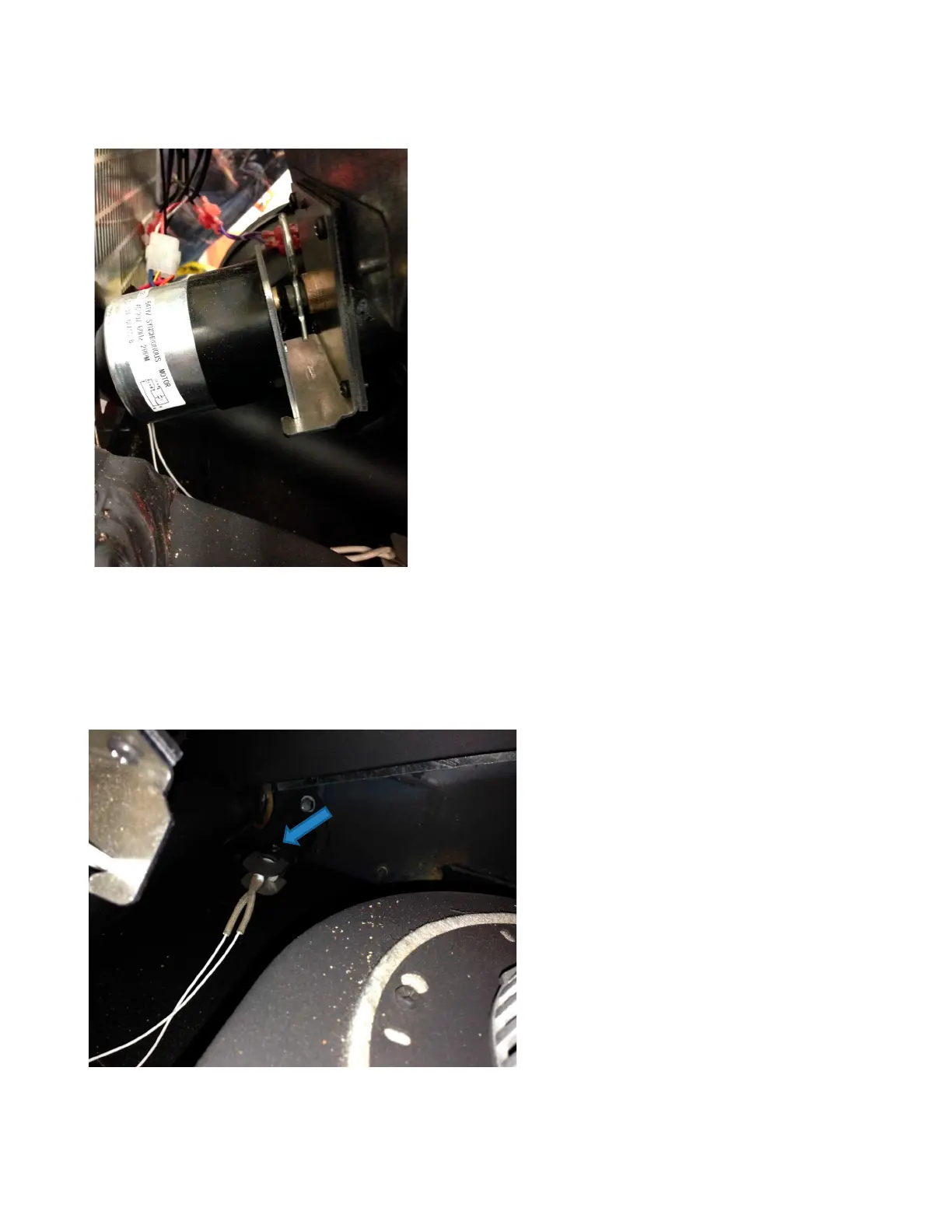

FEED MOTOR
The feed motor is located on the back of
the unit towards the bottom. Removing
the rear screen and left side panel is the
best way to access the motor.
Once access is gained, simply pulling the
pin on the auger shaft will release the
feed motor.
FEED MOTOR REPLACEMENT
COMPONENT LOCATIONS
IGNITER
The igniter is located at the back of
the firebox in the middle.
Removing the left access panel
will allow you to see it. There is a
Phillips head screw holding the
igniter in place.
Screw location
IGNITER REPLACEMENT
