FEED MOTOR
VACUUM
SWITCH
BLACK WHITE PURPLE PURPLE BLUE
BLUE
WHITE
RED
BLACK BLACK
HOPPER
SWITCH
RED
WHITE
WHITE
WHITE

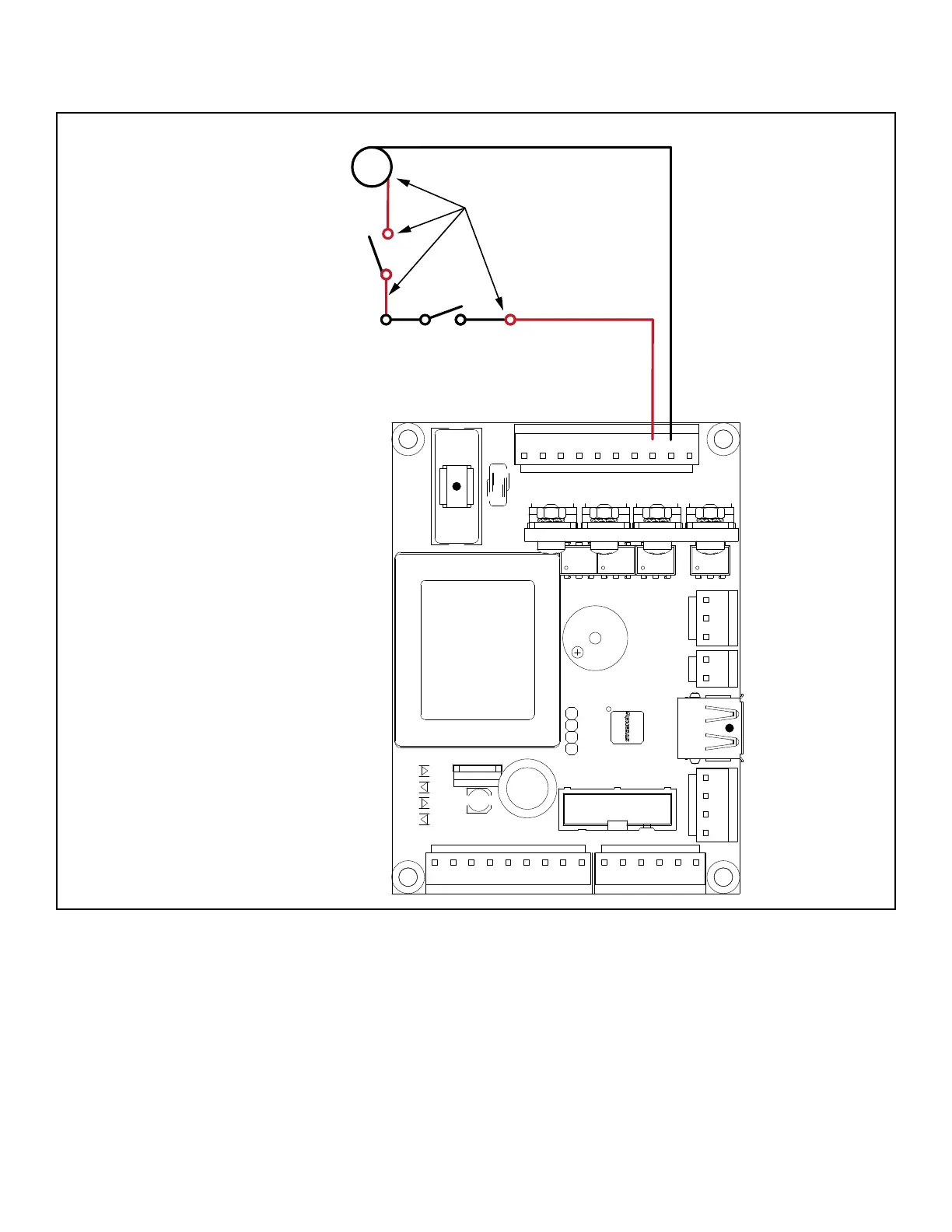

TEST POINTS
HOPPER SWITCH IS CLOSED WHEN THE HOPPER LID IS CLOSED.
VACUUM SWITCH IS CLOSED WHEN THE EXHAUST BLOWER IS ON.
FEED MOTOR RUNS ON 115 VAC.
ALL CIRCUITS MUST BE CLOSED FOR THE FEED MOTOR TO WORK.
NOT FEEDING PELLETS
