Cyclone Universal & Cyclone Universal FX - User Manual 29
5 STAND-ALONE PROGRAMMER CONFIGURATION
The Cyclone may act as a Stand-Alone In-Circuit Programmer. A simple user interface,
CREATEIMAGE.EXE, is provided for configuring the Cyclone.
Note: If the user wishes to use a programming image created with an earlier generation Cyclone (such
as the Cyclone PRO or MAX, or the Cyclone for ARM devices Rev. A/B) they should first convert
the image using the conversion utility described in CHAPTER 12 - SAP CONVERTER UTILITY.
5.1 Create A Stand-Alone Programming (SAP) Image
This chapter describes in detail how to configure the Cyclone Universal and Cyclone Universal
FX for stand-alone programming using the Cyclone Image Creation Utility, shown in Figure 5-1.
The Cyclone does not require a target to be connected when it is being configured. However, the
power of the Cyclone must be turned on and one of the communications interfaces must be
connected to the Cyclone if an image is to be stored on it.

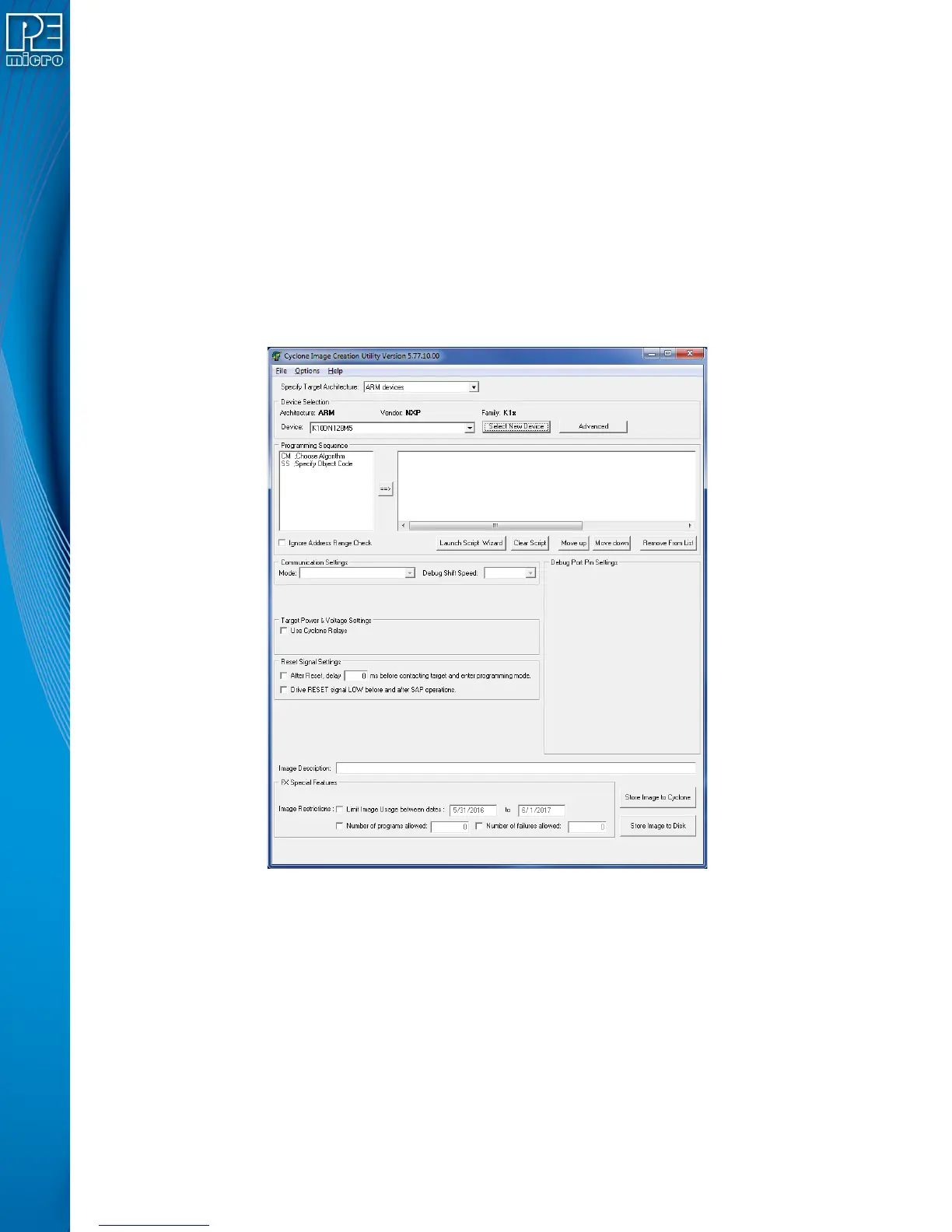

Figure 5-1: Cyclone Image Creation Utility
5.1.1 Specify Target Architecture
The Cyclone Universal and Cyclone Universal FX both support ARM Cortex devices from
several manufacturers** - including NXP’s Kinetis and LPC devices - and also these 8-16/32-bit
architectures: NXP’s S32, ColdFire® V2/V3/V4, ColdFire+/V1, MPC5xx/8xx, Qorivva® (MPC5xxx),
DSC, ARM® Nexus (MAC7xxx), S12Z, HC(S)12(X), HCS08, HC08, and RS08 devices, as well as
STMicroelectronics SPC5 devices.
**For a complete index of P&E-supported ARM Cortex devices, please view pemicro.com/arm.
The user may select the CPU Manufacturer from the drop-down list:
